LEDstar Slim

LEDstar Slim Black 230lm 2700K Ra>90

Article code
912142
EAN
7021989121428
Back to articlelist

Overview

Wattage
4,5W
Efficacy
46 lm/W
Lumen
230lm
IP Class
IP65
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • mm
  • 24v
  • ip65
  • klasse_3
  • ce

Tools

Downloads

Specification sheet 912142 Eulumdat file (ldt) 7021989121428_LEDstar Slim Black 230lm 2700K Ra90 Dialux file (uld) 7021989121428_LEDstar Slim Black 230lm 2700K Ra90

See more

Relux file (rolf) 7021989121428_LEDstar_Slim_Black_230lm_2700K_Ra_90 Revit file - Generic LEDstar Slim - generic Revit file - Face Based LEDstar Slim - face based Mounting instruction LEDStar Slim_User Manual CE Declaration LEDstar Slim

How to specify

Text copied to clipboard

LEDstar Slim Black 230lm 2700K Ra>90, Article code: 912142, EAN: 7021989121428, IP65, Electrical: Wattage: 4,5W, System wattage: 5W, Voltage: 24V, Light technic: Type of light source: LED, Luminous flux: 230lm, Efficacy: 46 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Plastic clear, Beam angle: 105°, Protection: Luminaire class: Class III, IP Class: IP65, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Mounting/Connection: Mounting: Recessed, Indoor, Cable: Cable 3m, Dimensions: Height (mm) H: 13, Diameter (mm) D: 65, Cut-out (mm): 55, Ceiling void depth (mm): 11, Weight (kg) gross/net: 0.132 / 0.105, Packaging: Packaging dimensions (mm): 70 x 70 x 95

Electrical

Wattage
4,5W
System wattage
5W
Voltage
24V

Light technic

Type of light source
LED
Luminous flux
230lm
Efficacy
46 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

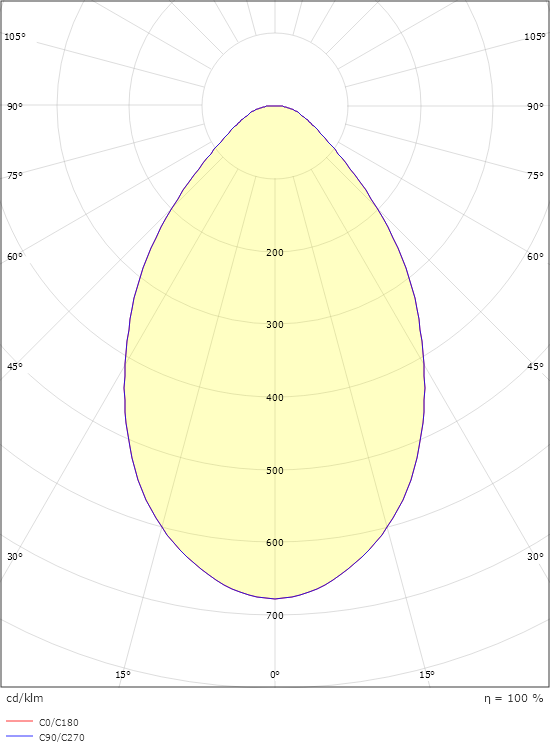

Light distribution
Direct
Optic
Plastic clear
Beam angle
105°

Protection

Luminaire class
Class III
IP Class
IP65

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)

Mounting/Connection

Mounting
Recessed, Indoor
Cable
Cable 3m

Dimensions

Height (mm) H
13
Diameter (mm) D
65
Cut-out (mm)
55
Ceiling void depth (mm)
11
Weight (kg) gross/net
0.132 / 0.105

Packaging

Packaging dimensions (mm)
70 x 70 x 95
