LEDstar

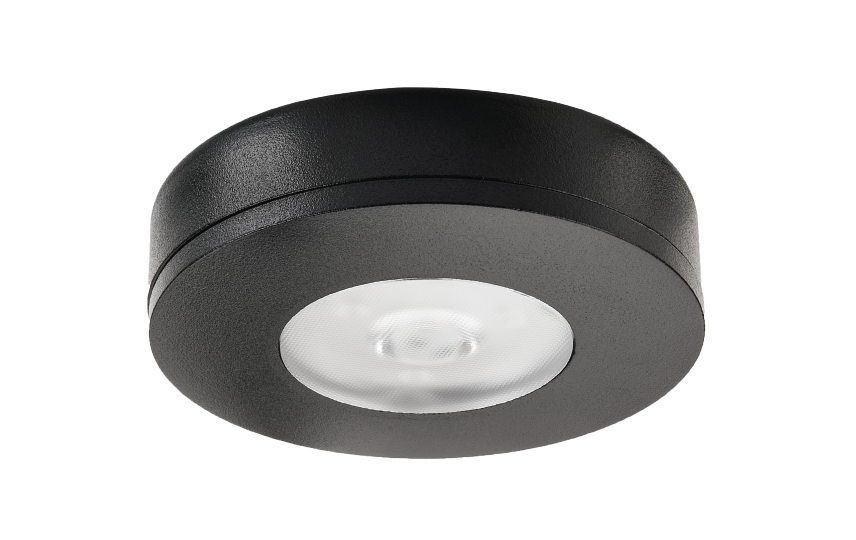

LEDstar Black 170lm 2700K Ra>90

Article code
970064
EAN
7021989700647
Back to articlelist

Overview

Wattage
2,4W
Efficacy
71 lm/W
Lumen
170lm
IP Class
IP54
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Recessed or surface, Indoor
    5 years Warranty
  • indoor
  • mm
  • 24v
  • ip54
  • klasse_3
  • ce

Tools

Downloads

Specification sheet 970064 Eulumdat file (ldt) 7021989700647_LEDstar Black 170lm 2700K Ra90 Dialux file (uld) 7021989700647_LEDstar Black 170lm 2700K Ra90

See more

Relux file (rolf) 7021989700647_LEDstar_Black_170lm_2700K_Ra_90 Revit file - Generic LEDstar surfacemounted - Generic Revit file - Ceiling Based LEDstar surfacemounted - ceiling based Mounting instruction Ledstar Mounting Instructions CE Declaration LEDstar

How to specify

Text copied to clipboard

LEDstar Black 170lm 2700K Ra>90, Article code: 970064, EAN: 7021989700647, IP54, Electrical: Wattage: 2,4W, System wattage: 2.4W, Voltage: 24V, Light technic: Type of light source: LED, Luminous flux: 170lm, Efficacy: 71 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 40°, Protection: Luminaire class: Class III, IP Class: IP54, Energy and approvals: Contains light source of energy class: G, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Mounting/Connection: Mounting: Recessed or surface, Indoor, Cable: Cable 3m, Dimensions: Height (mm) H: 22, Diameter (mm) D: 82, Cut-out (mm): 57, Ceiling void depth (mm): 15, Weight (kg) gross/net: 0.247 / 0.22, Packaging: Packaging dimensions (mm): 90 x 90 x 42

Electrical

Wattage
2,4W
System wattage
2.4W
Voltage
24V

Light technic

Type of light source
LED
Luminous flux
170lm
Efficacy
71 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

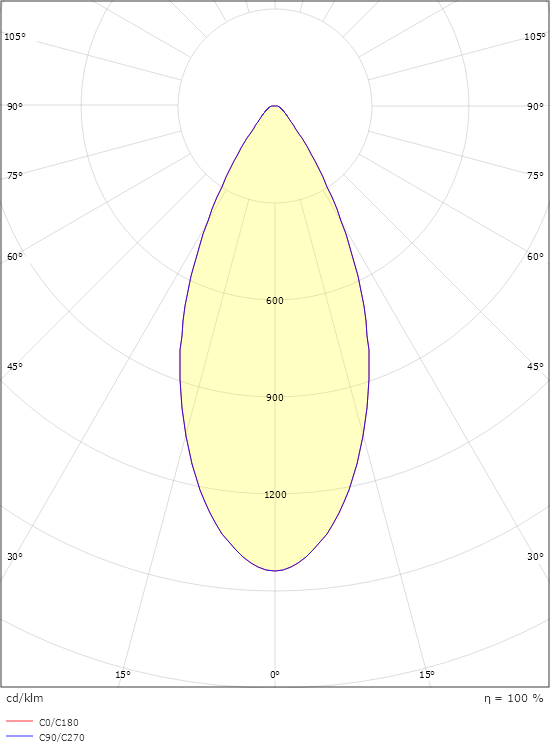

Light distribution
Direct
Optic
Opal
Beam angle
40°

Protection

Luminaire class
Class III
IP Class
IP54

Energy and approvals

Contains light source of energy class
G

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)

Mounting/Connection

Mounting
Recessed or surface, Indoor
Cable
Cable 3m

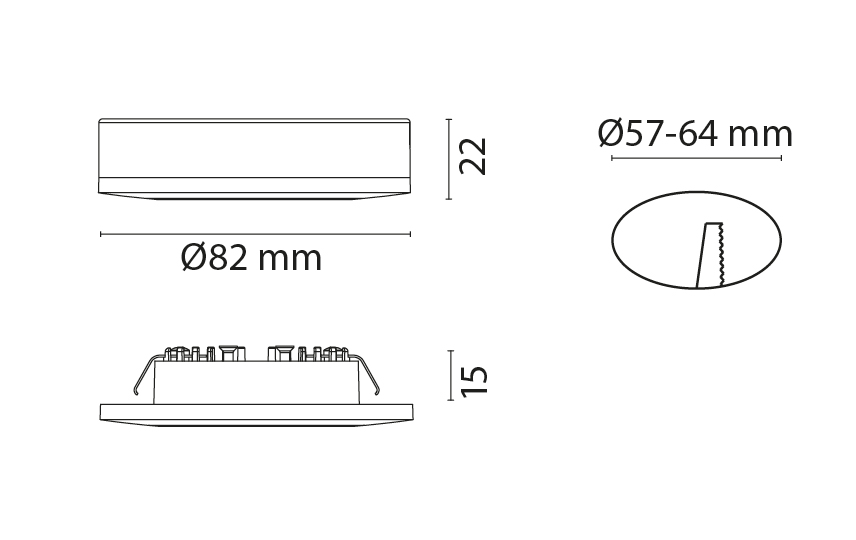

Dimensions

Height (mm) H
22
Diameter (mm) D
82
Cut-out (mm)
57
Ceiling void depth (mm)
15
Weight (kg) gross/net
0.247 / 0.22

Packaging

Packaging dimensions (mm)
90 x 90 x 42
