Overview
- Efficacy
- 75 lm/W
- Lumen
- 180lm
- IP Class
- IP54
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B50>
- Mounting
- Recessed or surface, Indoor
Tools
Downloads
Specification sheet
912064
pdf
(Opens in new tab)
Mounting instruction
Ledstar Mounting Instructions
pdf
(Opens in new tab)
CE Declaration
LEDstar
pdf
(Opens in new tab)
Relux file (rolf)
7021989120643_LEDstar_White_180lm_2700K_Ra_90
rolf
Eulumdat file (ldt)
7021989120643_LEDstar White 180lm 2700K Ra90
ldt
Dialux file (uld)
7021989120643_LEDstar White 180lm 2700K Ra90
uld
Revit file - Generic
LEDstar surfacemounted - Generic
rfa
Revit file - Ceiling Based
LEDstar surfacemounted - ceiling based
rfa
Electrical
- System wattage
- 2.4W
- Voltage
- 24V
Light technic
- Type of light source
- LED
- Luminous flux
- 180lm
- Efficacy
- 75 lm/W
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- MacAdams factor
- SDCM: 3
- Lifetime
- L70/B50>50,000

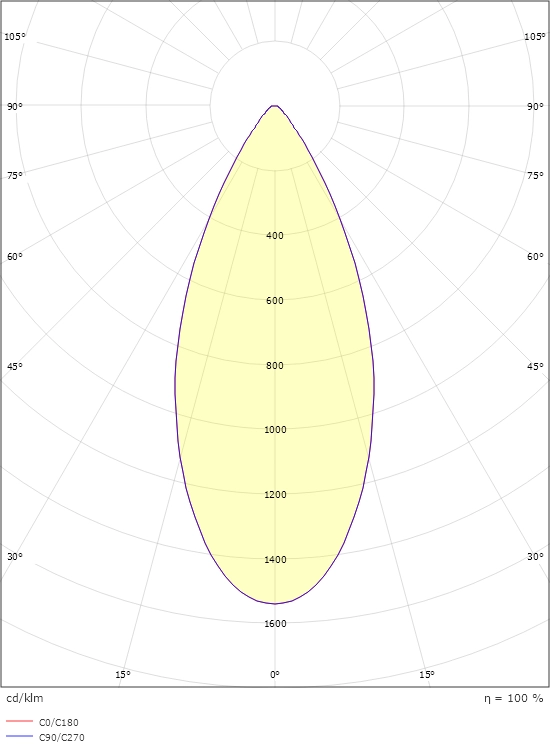

- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 40°
Protection
- Luminaire class
- Class III
- IP Class
- IP54
Energy and approvals
- Contains light source of energy class
- F
Materials and finish
- Housing
- Aluminium
- Colour
- White (RAL 9003)
Mounting/Connection
- Mounting
- Recessed or surface, Indoor
- Cable
- Cable 3m

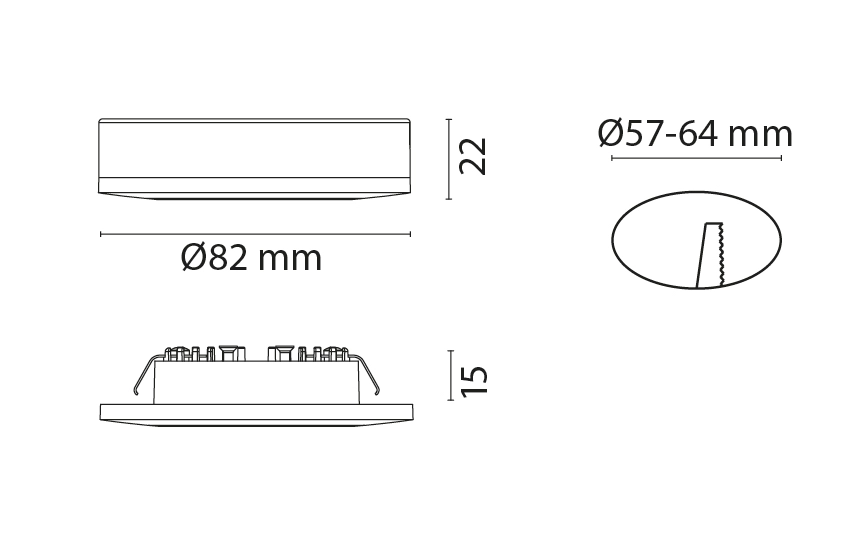

Dimensions
- Height (mm) H
- 22
- Diameter (mm) D
- 82
- Cut-out (mm)
- 57
- Ceiling void depth (mm)
- 15
- Weight (kg) gross/net
- 0.247 / 0.22
Packaging
- Packaging dimensions (mm)
- 90 x 90 x 42
