Mississippi

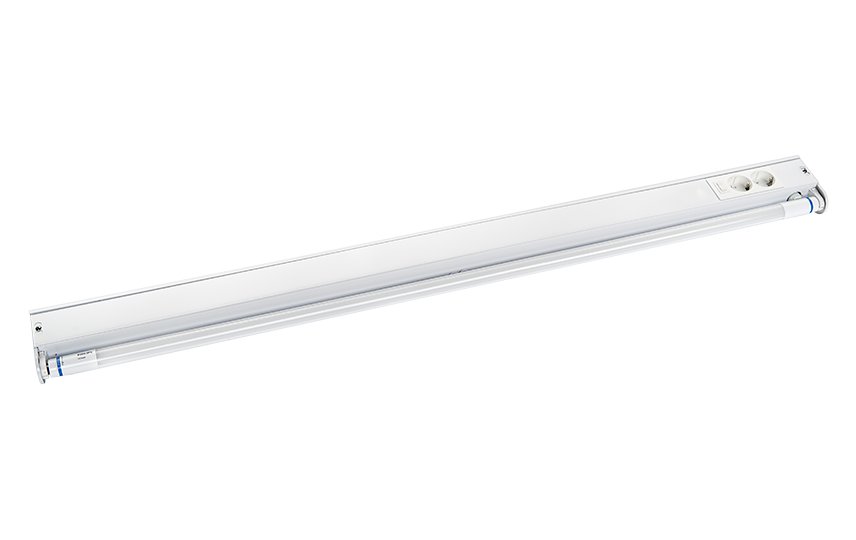

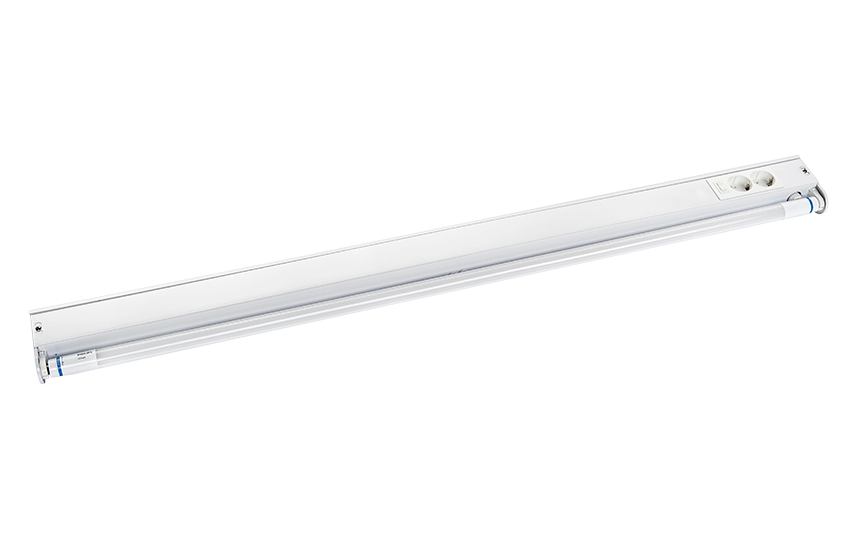

Mississippi White 2044lm 2700K Ra>80 On/Off

Article code
112021
EAN
7021981120214
Replaces
112028, 112020
Back to articlelist

Overview

Efficacy
146 lm/W
Lumen
2044lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
L70/B50>
Mounting
Surface, Indoor
  • indoor
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 112021 Revit file - Generic Mississippi_L1225 - Generic Revit file - Face Based Mississippi_L1225 - face based

See more

Mounting instruction Mississippi LED_User Manual CE Declaration Mississippi LED

How to specify

Text copied to clipboard

Mississippi White 2044lm 2700K Ra>80 On/Off, Article code: 112021, EAN: 7021981120214, IP20, Electrical: System wattage: 14W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: G13, Light source included: Yes, Luminous flux: 2044lm, Efficacy: 146 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 6, Lifetime: L70/B50>, Light distribution: Direct, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Colour: White (RAL 9003), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1225, Width (mm) W: 100, Height (mm) H: 50, Weight (kg) gross/net: 2.55 / 3.33, Packaging: Packaging dimensions (mm): 1240 x 110 x 60

Electrical

System wattage
14W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
G13
Light source included
Yes
Luminous flux
2044lm
Efficacy
146 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 6
Lifetime
L70/B50>
Light distribution
Direct

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

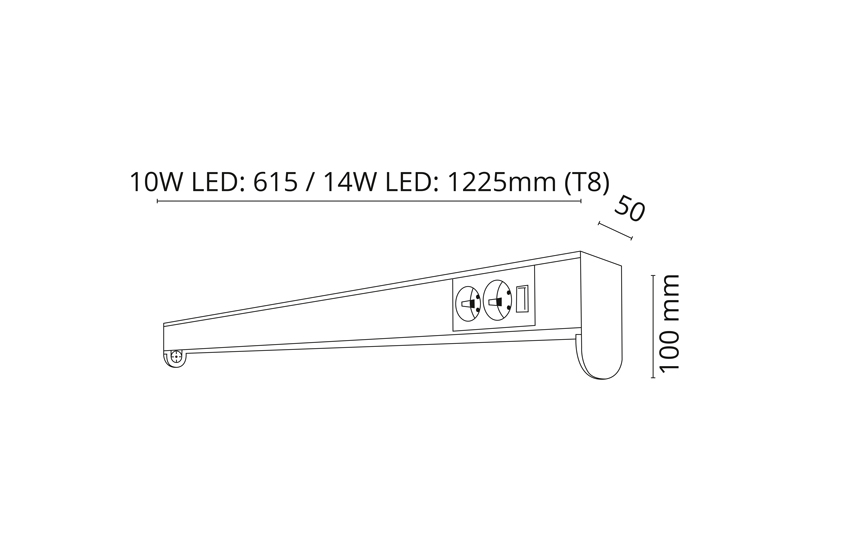

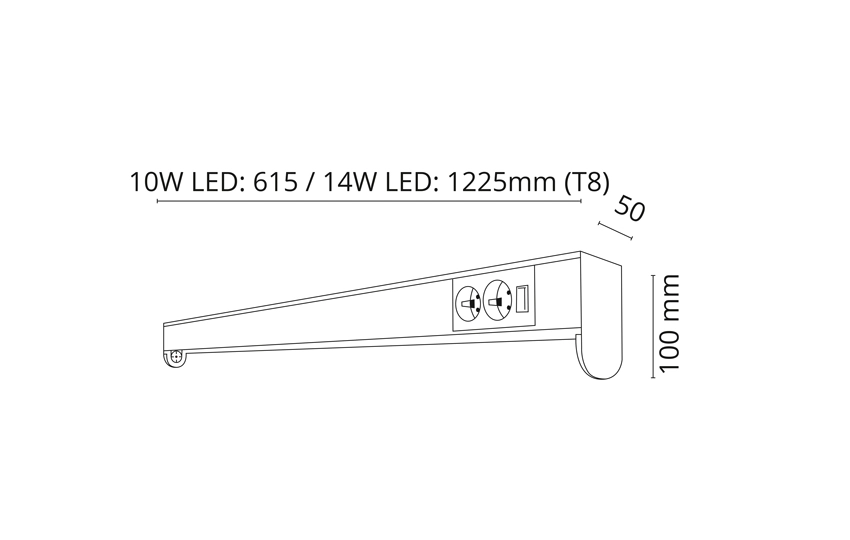

Dimensions

Length (mm) L
1225
Width (mm) W
100
Height (mm) H
50
Weight (kg) gross/net
2.55 / 3.33

Packaging

Packaging dimensions (mm)
1240 x 110 x 60
