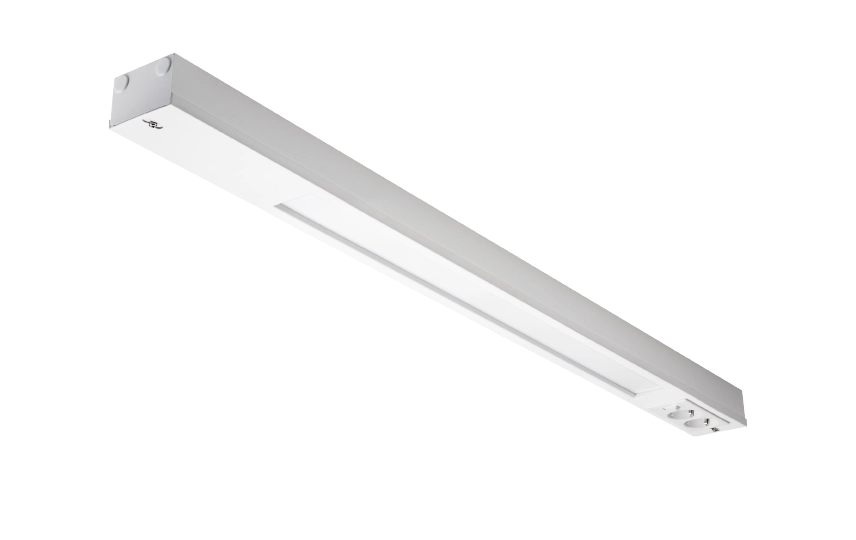

Namsen

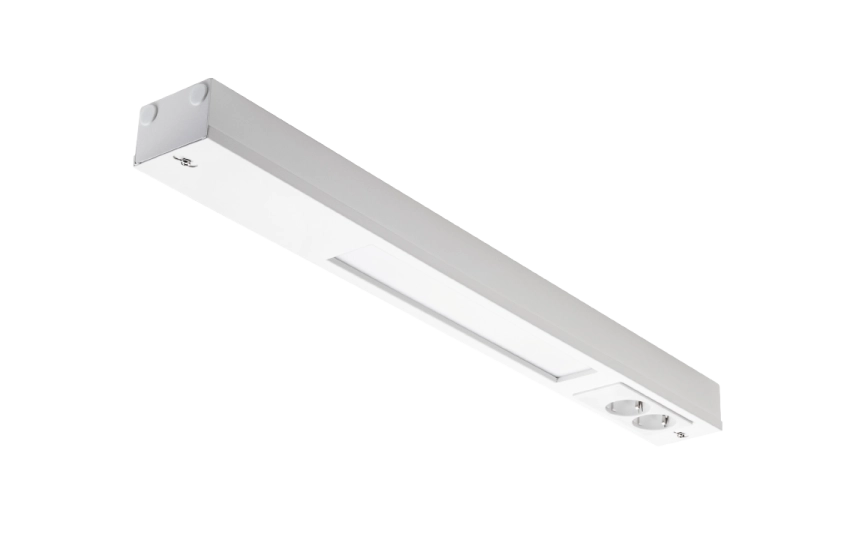

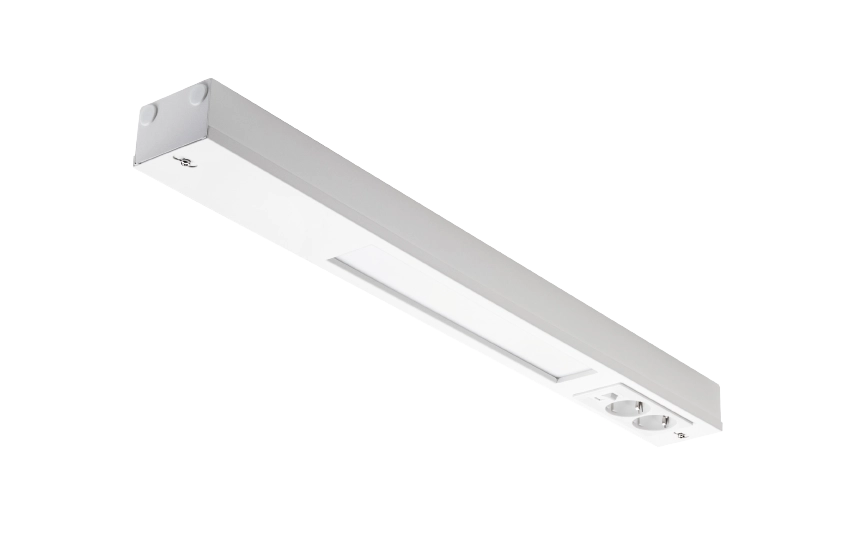

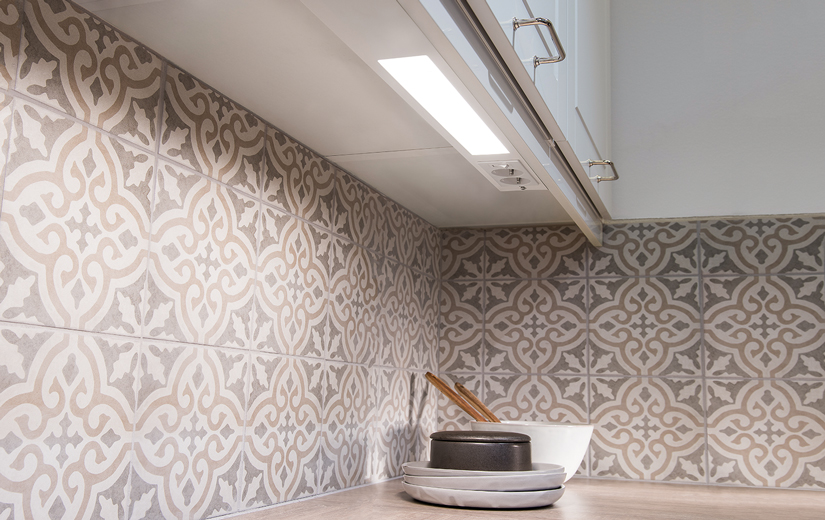

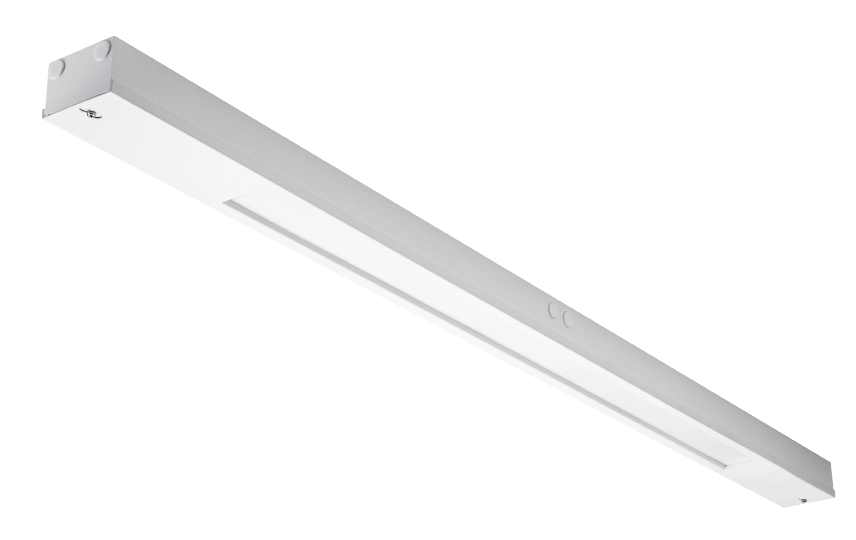

Namsen is a cost-effective luminaire with dimmable integrated LED. The versions with on-off switch and 2 sockets (16A) are suitable for under-cupboard lighting in the kitchen, laundry room, etc. Separate connection for socket and light.The version without a switch or plug is great for general lighting in hallways, storage rooms, lofts etc. Easy installation and cable feed on three sides. The front can be rotated to place the connectors on the right or left side.

Article list

Namsen

Indoor Direct Surface SDCM: 3 Class I IK08 IP20 Ra>80 L80/B10> 100,000, L80/B50> 50,000

Filters

Module

Colour temperature

System wattage

Lumen

Control gear

Filters

						Others	Tools
112022	600	2700K	10W	880lm	Trailing edge	w/ 2 x outlet, 88 lm/W, L595 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112024	1200	2700K	23W	2220lm	Trailing edge	w/ 2 x outlet, 97 lm/W, L1195 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112027	900	2700K	15W	1410lm	Trailing edge	w/ 2 x outlet, 94 lm/W, L920 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112031	600	3000K	12W	920lm	DALI-2 / Push Dim	w/ 2 x outlet, 77 lm/W, L635 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112032	1200	3000K	27W	2110lm	DALI-2 / Push Dim	w/ 2 x outlet, 78 lm/W, L1195 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112023	600	3000K	10W	900lm	Trailing edge	w/ 2 x outlet, 90 lm/W, L595 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112025	1200	3000K	23W	2280lm	Trailing edge	w/ 2 x outlet, 99 lm/W, L1195 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112026	1200	3000K	23W	2280lm	Trailing edge	99 lm/W, L1195 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112029	900	3000K	15W	1460lm	Trailing edge	w/ 2 x outlet, 97 lm/W, L920 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
112022	600	2700K	10W	880lm	Trailing edge	w/ 2 x outlet, 88 lm/W, L595 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112024	1200	2700K	23W	2220lm	Trailing edge	w/ 2 x outlet, 97 lm/W, L1195 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112027	900	2700K	15W	1410lm	Trailing edge	w/ 2 x outlet, 94 lm/W, L920 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112031	600	3000K	12W	920lm	DALI-2 / Push Dim	w/ 2 x outlet, 77 lm/W, L635 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112032	1200	3000K	27W	2110lm	DALI-2 / Push Dim	w/ 2 x outlet, 78 lm/W, L1195 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112023	600	3000K	10W	900lm	Trailing edge	w/ 2 x outlet, 90 lm/W, L595 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112025	1200	3000K	23W	2280lm	Trailing edge	w/ 2 x outlet, 99 lm/W, L1195 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112026	1200	3000K	23W	2280lm	Trailing edge	99 lm/W, L1195 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
112029	900	3000K	15W	1460lm	Trailing edge	w/ 2 x outlet, 97 lm/W, L920 x W69 x H46, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
