Namsen

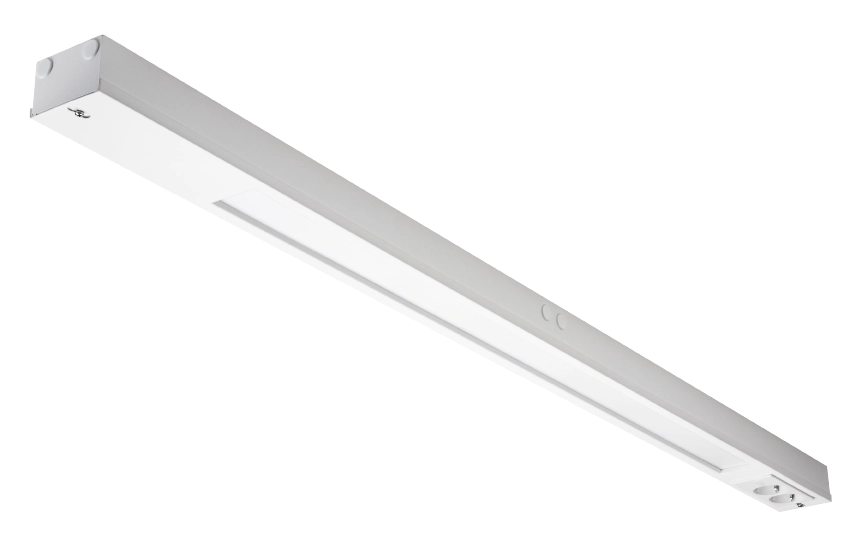

Namsen 1200 White w/ 2 x outlet 2110lm 3000K Ra>80 DALI-2 / Push Dim

Article code
112032
EAN
7021981120320
Back to articlelist

Overview

Efficacy
78 lm/W
Lumen
2110lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ik08
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 112032 Revit file - Generic Namsen_1200 - Generic Revit file - Face Based Namsen 1200 - face based

See more

Mounting instruction Namsen 1200 DALI_User Manual Eulumdat file (ldt) 7021981120320_Namsen 1200 White w 2 x outlet 2110lm 3000K Ra80 DALI Push Dim Dialux file (uld) 7021981120320_Namsen 1200 White w 2 x outlet 2110lm 3000K Ra80 DALI Push Dim Relux file (rolf) 7021981120320_Namsen_1200_White_w__2_x_outlet_2110lm_3000K_Ra_80_DALI___Push_Dim EPD NEPD-8334-8001_Namsen-600-Outlet-Dali CE Declaration Namsen

How to specify

Text copied to clipboard

Namsen 1200 White w/ 2 x outlet 2110lm 3000K Ra>80 DALI-2 / Push Dim, Article code: 112032, EAN: 7021981120320, IP20, IK08, Electrical: System wattage: 27W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 35, B16: 57, C10: 58, C16: 95, Light technic: Type of light source: LED, Luminous flux: 2110lm, Efficacy: 78 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B50>50,000, Light distribution: Direct, Optic: Opal, UGR: UGR<28, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 1200, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1195, Width (mm) W: 69, Height (mm) H: 46, Weight (kg) gross/net: 2.52 / 2.1, Packaging: Packaging dimensions (mm): 1200 x 75 x 55

Electrical

System wattage
27W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 35, B16: 57, C10: 58, C16: 95

Light technic

Type of light source
LED
Luminous flux
2110lm
Efficacy
78 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B50>50,000

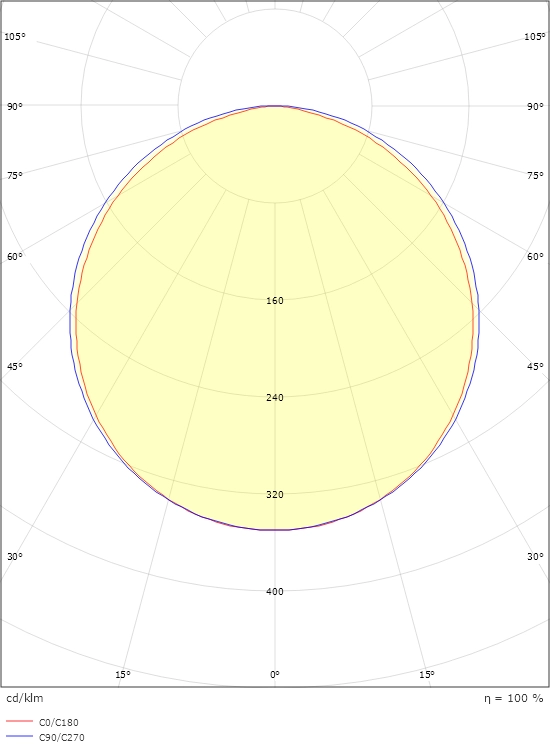

Light distribution
Direct
Optic
Opal

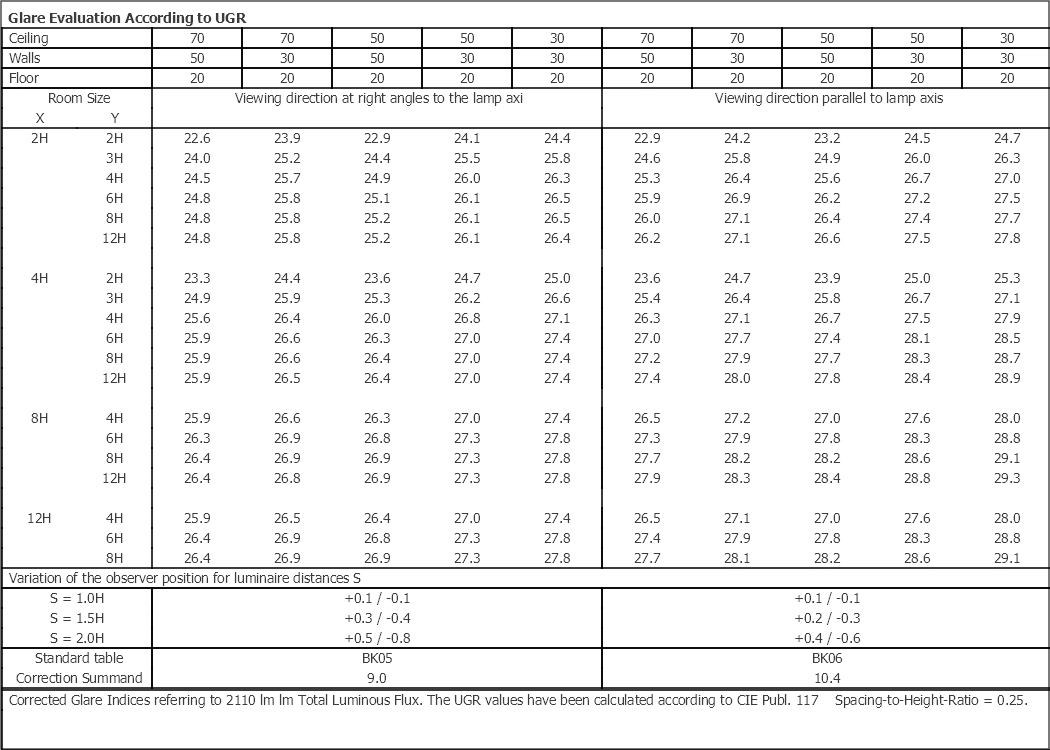

UGR
UGR<28
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
1200
Connection
Screwless terminal block

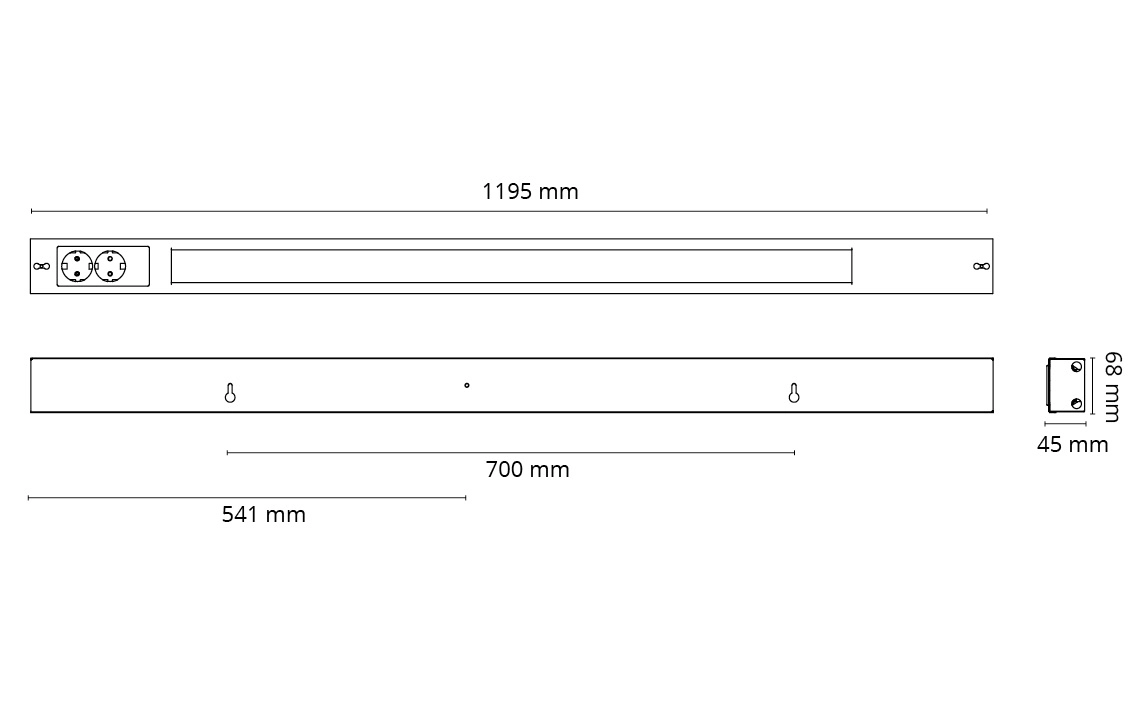

Dimensions

Length (mm) L
1195
Width (mm) W
69
Height (mm) H
46
Weight (kg) gross/net
2.52 / 2.1

Packaging

Packaging dimensions (mm)
1200 x 75 x 55
