SlimLine Pro

SlimLine Pro 170 Black 280lm 2700K Ra>90

Article code
391276
EAN
7021983912763
Back to articlelist

Overview

Efficacy
147 lm/W
Lumen
280lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • 24v
  • ip20
  • klasse_3
  • ce

Tools

Downloads

Specification sheet 391276 Energy label Energy Label_391276 Eulumdat file (ldt) 7021983912763_SlimLine Pro 170 Black 280lm 2700K Ra90

See more

Dialux file (uld) 7021983912763_SlimLine Pro 170 Black 280lm 2700K Ra90 Relux file (rolf) 7021983912763_SlimLine_Pro_170_Black_280lm_2700K_Ra_90 Mounting instruction SlimLine_User Manual CE Declaration SlimLine Pro

How to specify

Text copied to clipboard

SlimLine Pro 170 Black 280lm 2700K Ra>90, Article code: 391276, EAN: 7021983912763, IP20, Electrical: System wattage: 1.9W, Voltage: 24V, Light technic: Type of light source: LED, Luminous flux: 280lm, Efficacy: 147 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, Photobiological safety: RG 0, Protection: Luminaire class: Class III, IP Class: IP20, Energy and approvals: Energy efficency class: G, Materials and finish: Housing: Aluminium, Colour: Black, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Surface, Indoor, Module: 170, Dimensions: Length (mm) L: 170, Width (mm) W: 17, Height (mm) H: 7, Weight (kg) gross/net: 0.04 / 0.026, Packaging: Packaging dimensions (mm): 240 x 21 x 11

Electrical

System wattage
1.9W
Voltage
24V

Light technic

Type of light source
LED
Luminous flux
280lm
Efficacy
147 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

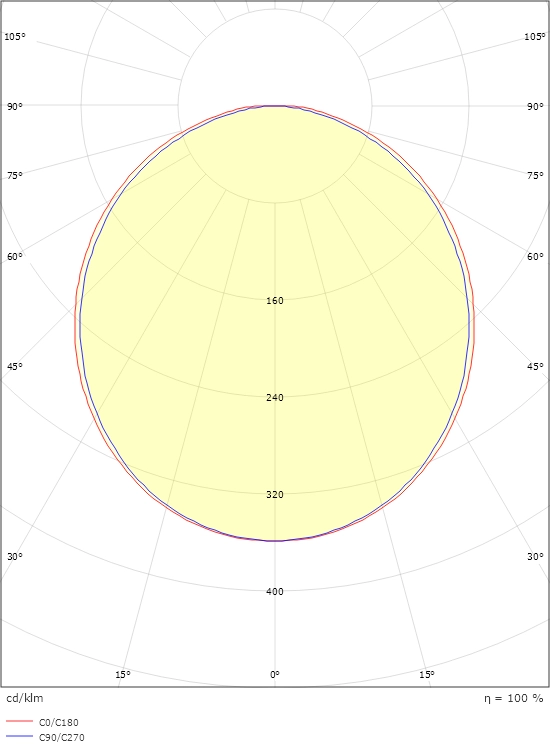

Light distribution
Direct
Optic
Opal
Beam angle
110°
Photobiological safety
RG 0

Protection

Luminaire class
Class III
IP Class
IP20

Energy and approvals

Energy efficency class
G

Materials and finish

Housing
Aluminium
Colour
Black
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Surface, Indoor
Module
170

Dimensions

Length (mm) L
170
Width (mm) W
17
Height (mm) H
7
Weight (kg) gross/net
0.04 / 0.026

Packaging

Packaging dimensions (mm)
240 x 21 x 11
