SlimLine

SlimLine 270 White 230lm 2700K Ra>90

Article code
391200
EAN
7021983912008
Back to articlelist

Overview

Efficacy
96 lm/W
Lumen
230lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
  • indoor
  • 24v
  • ip20
  • klasse_3
  • ce

Tools

Downloads

Specification sheet 391200 Revit file - Generic Slimline 270mm - generic Revit file - Face Based Slimline 270mm - face based

See more

Eulumdat file (ldt) 7021983912008_SlimlineWhite2.4WLED2700KRa90-34423 Dialux file (uld) 7021983912008_SlimlineWhite2.4WLED2700KRa90 Relux file (rolf) 7021983912008_SlimLine_270_White_230lm_2700K_Ra_90 Mounting instruction SlimLine_User Manual CE Declaration SlimLine

How to specify

Text copied to clipboard

SlimLine 270 White 230lm 2700K Ra>90, Article code: 391200, EAN: 7021983912008, IP20, Electrical: System wattage: 2.4W, Voltage: 24V, Light technic: Type of light source: LED, Luminous flux: 230lm, Efficacy: 96 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Opal, UGR: UGR<28, Protection: Luminaire class: Class III, IP Class: IP20, Energy and approvals: Energy efficency class: G, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Surface, Indoor, Module: 270, Connection: Screwless terminal block, Dimensions: Length (mm) L: 270, Width (mm) W: 17, Height (mm) H: 7, Weight (kg) gross/net: 0.057 / 0.048, Packaging: Packaging dimensions (mm): 340 x 21 x 11

Electrical

System wattage
2.4W
Voltage
24V

Light technic

Type of light source
LED
Luminous flux
230lm
Efficacy
96 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

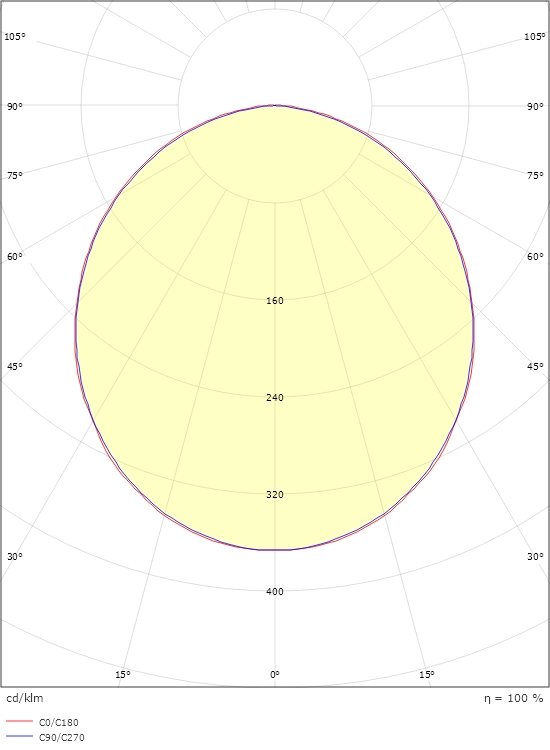

Light distribution
Direct
Optic
Opal
UGR
UGR<28

Protection

Luminaire class
Class III
IP Class
IP20

Energy and approvals

Energy efficency class
G

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Surface, Indoor
Module
270
Connection
Screwless terminal block

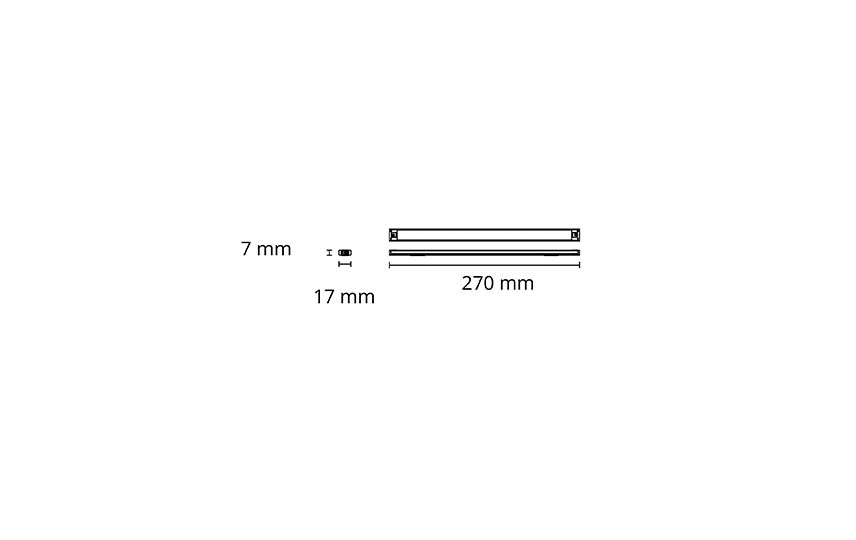

Dimensions

Length (mm) L
270
Width (mm) W
17
Height (mm) H
7
Weight (kg) gross/net
0.057 / 0.048

Packaging

Packaging dimensions (mm)
340 x 21 x 11
