Duo

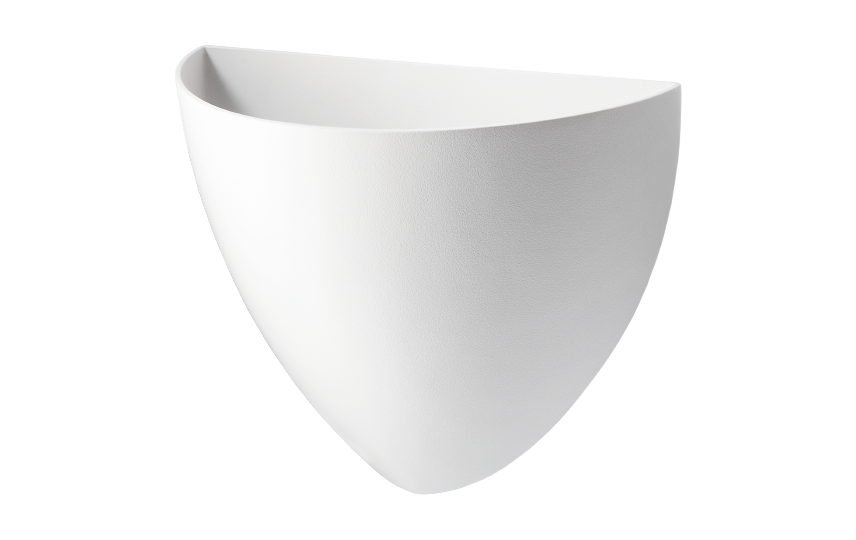

Duo White 640lm 3000K Ra>80 Trailing edge

Article code
212250
EAN
7021982122507
Back to articlelist

Overview

Efficacy
64 lm/W
Lumen
640lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 212250 Eulumdat file (ldt) 7021982122507_Duo White 640lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021982122507_Duo White 640lm 3000K Ra80 Trailing edge dimming

See more

Relux file (rolf) 7021982122507_Duo_White_640lm_3000K_Ra_80_Trailing_edge_dimming Revit file - Generic Duo - Generic Revit file - Face Based Duo - face based Mounting instruction Duo Mounting instructions CE Declaration DUO

How to specify

Text copied to clipboard

Duo White 640lm 3000K Ra>80 Trailing edge, Article code: 212250, EAN: 7021982122507, IP20, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Luminous flux: 640lm, Efficacy: 64 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>50,000, Light distribution: Direct, Optic: Plastic clear, Beam angle: 40° down / 110° up, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium and stainless steel, Colour: Matte white (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 180, Width (mm) W: 170, Height (mm) H: 135, Depth (D): 103, Weight (kg) gross/net: 0.589 / 0.495, Packaging: Packaging dimensions (mm): 180 x 110 x 145

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Luminous flux
640lm
Efficacy
64 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>50,000

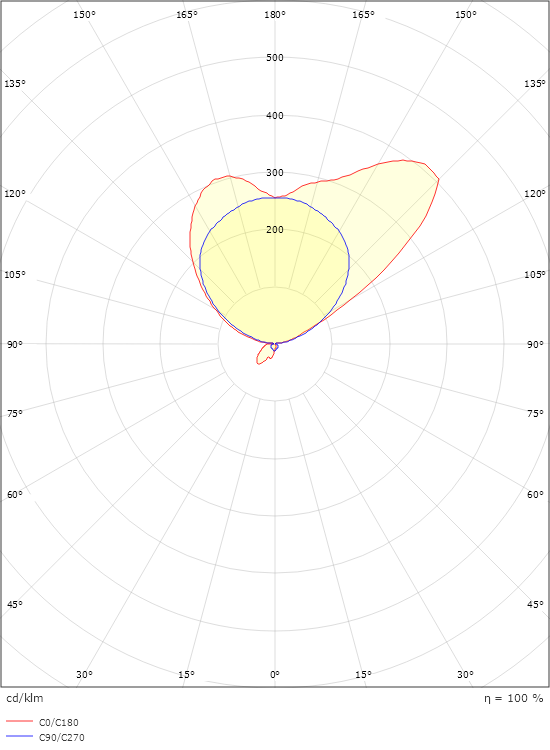

Light distribution
Direct
Optic
Plastic clear
Beam angle
40° down / 110° up
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium and stainless steel
Colour
Matte white (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
180
Width (mm) W
170
Height (mm) H
135
Depth (D)
103
Weight (kg) gross/net
0.589 / 0.495

Packaging

Packaging dimensions (mm)
180 x 110 x 145
