Frame Round

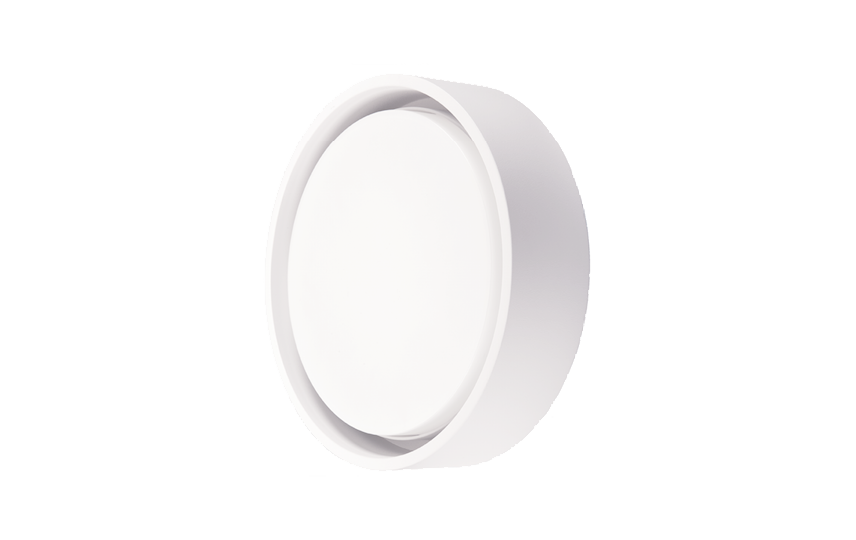

Frame Round White 670lm 3000K Ra>80 Twilight

Article code
605042
EAN
7021986050424
Back to articlelist

Overview

Efficacy
96 lm/W
Lumen
670lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B20>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • dipswitch
  • ik10
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 605042 Mounting instruction Frame_Round_twilight_User manual Eulumdat file (ldt) 7021986050424_FrameRoundTwilightWhite7WLED3000KRa80-35850

See more

Dialux file (uld) 7021986050424_FrameRoundTwilightWhite7WLED3000KRa80 Relux file (rolf) 7021986050424_Frame_Round_White_Twilight_670lm_3000K_Ra_80_On_Off EPD NEPD-11312-11270_Frame-Round-Twilight Revit file - Generic Frame Round - Generic Revit file - Face Based Frame Round - face based CE Declaration Frame Round

How to specify

Text copied to clipboard

Frame Round White 670lm 3000K Ra>80 Twilight, Article code: 605042, EAN: 7021986050424, IP66, IK10, Electrical: System wattage: 7W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 77, B16: 123, C10: 77, C16: 123, Light technic: Type of light source: LED, Luminous flux: 670lm, Efficacy: 96 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B20>100,000, Lifetime: L80/B20>75.000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, Photobiological safety: RG 0, ULOR (<1%): Yes, when ceiling mounted, Control/Dimming: Type: Twilight, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP66, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 77, Diameter (mm) D: 270, Weight (kg) gross/net: 2.39 / 1.9, Packaging: Packaging dimensions (mm): 278 x 275 x 92

Electrical

System wattage
7W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 77, B16: 123, C10: 77, C16: 123

Light technic

Type of light source
LED
Luminous flux
670lm
Efficacy
96 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B20>100,000
Lifetime
L80/B20>75.000

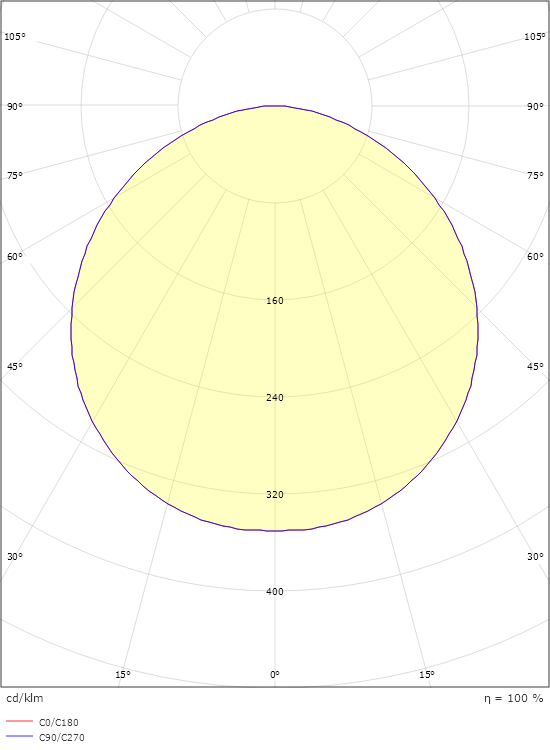

Light distribution
Direct
Optic
Opal
Beam angle
110°
Photobiological safety
RG 0
ULOR (<1%)
Yes, when ceiling mounted

Control/Dimming

Type
Twilight

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP66
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
77
Diameter (mm) D
270
Weight (kg) gross/net
2.39 / 1.9

Packaging

Packaging dimensions (mm)
278 x 275 x 92
