Tube Wall
Tube Wall White USB 360lm 3000K Ra 98 Integrated dimmer
- Article code
- 320801
- EAN
- 7021983208019
Overview
- Efficacy
- 45 lm/W
- Lumen
- 360lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor
Function
- Function
- Including charging connection for USB A and C
Electrical
- System wattage
- 8W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 180, B16: 290, C10: 180, C16: 290
Light technic
- Type of light source
- LED
- Luminous flux
- 360lm
- Efficacy
- 45 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>50,000

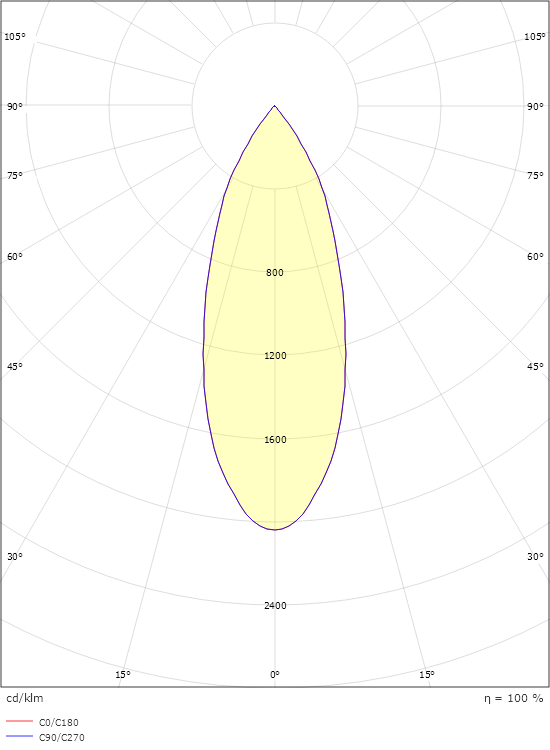

- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 38°
- Visible flicker (PstLM)
- 0.08
- Stroboscopic flicker (SVM)
- 0.01
Control/Dimming
- Type
- Integrated dimmer
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- White
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Surface, Indoor
- Cable
- Cable 2,4m
- Connection
- Includes cable and plug
Dimensions
- Width (mm) W
- 45
- Height (mm) H
- 223
- Depth (D)
- 47
- Weight (kg) gross/net
- 0.808 / 0.66
Packaging
- Packaging dimensions (mm)
- 540 x 60 x 60
