Tube Wall

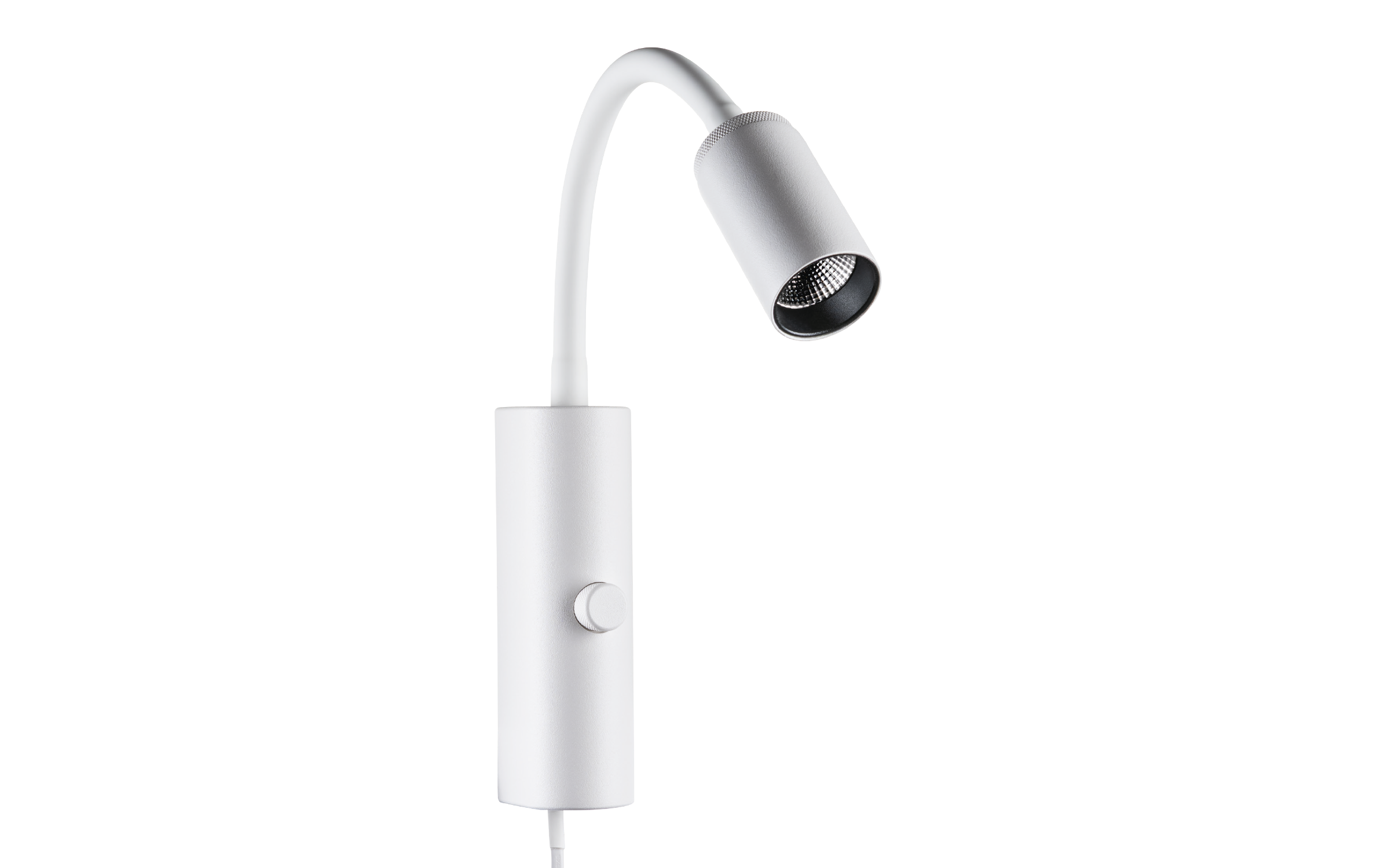

Tube Wall White 350lm 2700K Ra 98 Integrated dimmer

SG code
320910
EAN
7021983209108
Back to articlelist

Overview

Efficacy
44 lm/W
Lumen
350lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 320910 Mounting instruction Tube Wall Dim_User Manual CE Declaration Tube Wall Relux file (rolf) 7021983209108_Tube_Wall_White_350lm_2700K_Ra_98_Integrated_dimmer Eulumdat file (ldt) 7021983209108_Tube Wall White 350lm 2700K Ra 98 Integrated dimmer Dialux file (uld) 7021983209108_Tube Wall White 350lm 2700K Ra 98 Integrated dimmer

How to specify

Text copied to clipboard

Tube Wall White 350lm 2700K Ra 98 Integrated dimmer, Article code: 320910, EAN: 7021983209108, IP20, Electrical: System wattage: 8W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 180, B16: 290, C10: 180, C16: 290, Light technic: Type of light source: LED, Luminous flux: 350lm, Efficacy: 44 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L90/B10>50,000, Light distribution: Direct, Optic: Reflector, Beam angle: 38°, Visible flicker (PstLM): 0.08, Stroboscopic flicker (SVM): 0.01, Control/Dimming: Type: Integrated dimmer, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Materials and finish: Housing: Aluminium, Colour: White, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Cable: Cable 2,4m, Connection: Includes cable and plug, Dimensions: Width (mm) W: 45, Height (mm) H: 150, Depth (D): 47, Weight (kg) gross/net: 0.694 / 0.61, Packaging: Packaging dimensions (mm): 465 x 60 x 60

Electrical

System wattage
8W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 180, B16: 290, C10: 180, C16: 290

Light technic

Type of light source
LED
Luminous flux
350lm
Efficacy
44 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L90/B10>50,000

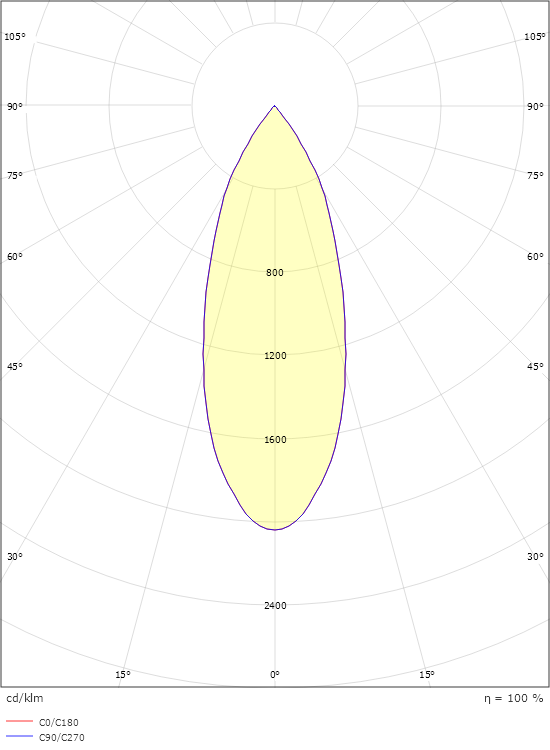

Light distribution
Direct
Optic
Reflector
Beam angle
38°
Visible flicker (PstLM)
0.08
Stroboscopic flicker (SVM)
0.01

Control/Dimming

Type
Integrated dimmer

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
E

Materials and finish

Housing
Aluminium
Colour
White
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Cable
Cable 2,4m
Connection
Includes cable and plug

Dimensions

Width (mm) W
45
Height (mm) H
150
Depth (D)
47
Weight (kg) gross/net
0.694 / 0.61

Packaging

Packaging dimensions (mm)
465 x 60 x 60
