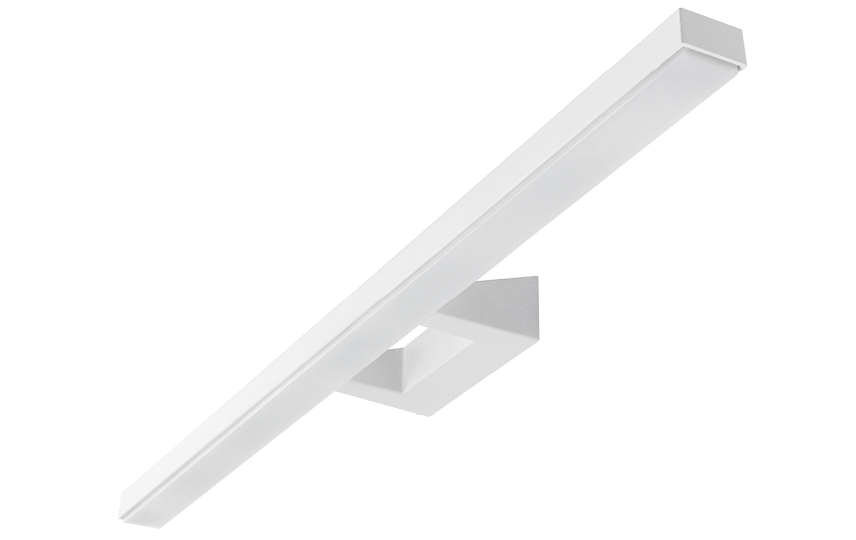

View 900 White 1980lm 4000K Ra>90 Trailing edge

Article code
111432
EAN
7021981114329
Back to articlelist

Overview

Efficacy
86 lm/W
Lumen
1980lm
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ik10
  • ip44
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 111432 Revit file - Generic View 900 - Generic Revit file - Face Based View 900 - face based

See more

Eulumdat file (ldt) 7021981114329_View 900 White 1980lm 4000K Ra90 Trailing edge dimming Dialux file (uld) 7021981114329_View 900 White 1980lm 4000K Ra90 Trailing edge dimming Relux file (rolf) 7021981114329_View_900_White_1980lm_4000K_Ra_90_Trailing_edge_dimming EPD NEPD-8168-7832_View-900 Mounting instruction View_User Manual CE Declaration View

How to specify

Text copied to clipboard

View 900 White 1980lm 4000K Ra>90 Trailing edge, Article code: 111432, EAN: 7021981114329, IP44 (mounted horizontally) / IP20 (mounted vertically), IK10, Electrical: System wattage: 23W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 12, B16: 19, C10: 14, C16: 23, Light technic: Type of light source: LED, Luminous flux: 1980lm, Efficacy: 86 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Lifetime: L80/B10>100,000, Light distribution: Direct, Optic: Opal, UGR: UGR<28, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP44 (mounted horizontally) / IP20 (mounted vertically), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Module: 900, Connection: Screwless terminal block, Dimensions: Length (mm) L: 896, Width (mm) W: 135, Height (mm) H: 60, Depth (D): 135, Weight (kg) gross/net: 1.621 / 1.262, Packaging: Packaging dimensions (mm): 917 x 142 x 68

Electrical

System wattage
23W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 12, B16: 19, C10: 14, C16: 23

Light technic

Type of light source
LED
Luminous flux
1980lm
Efficacy
86 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000
Lifetime
L80/B10>100,000
Light distribution
Direct
Optic
Opal

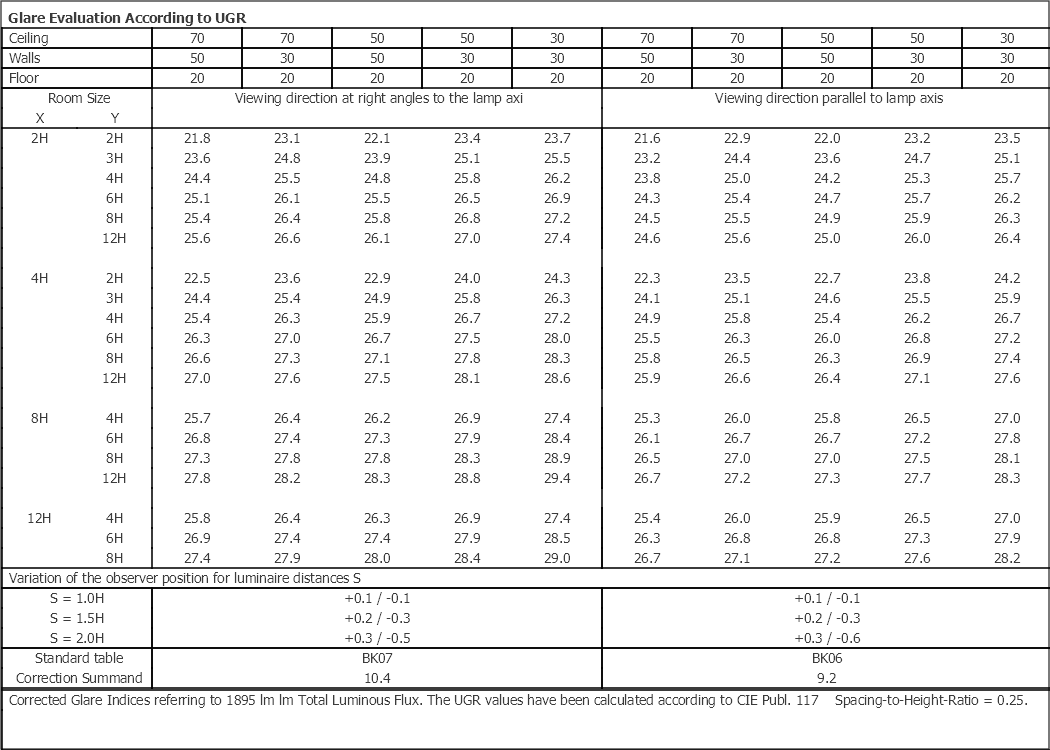

UGR
UGR<28
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Module
900
Connection
Screwless terminal block

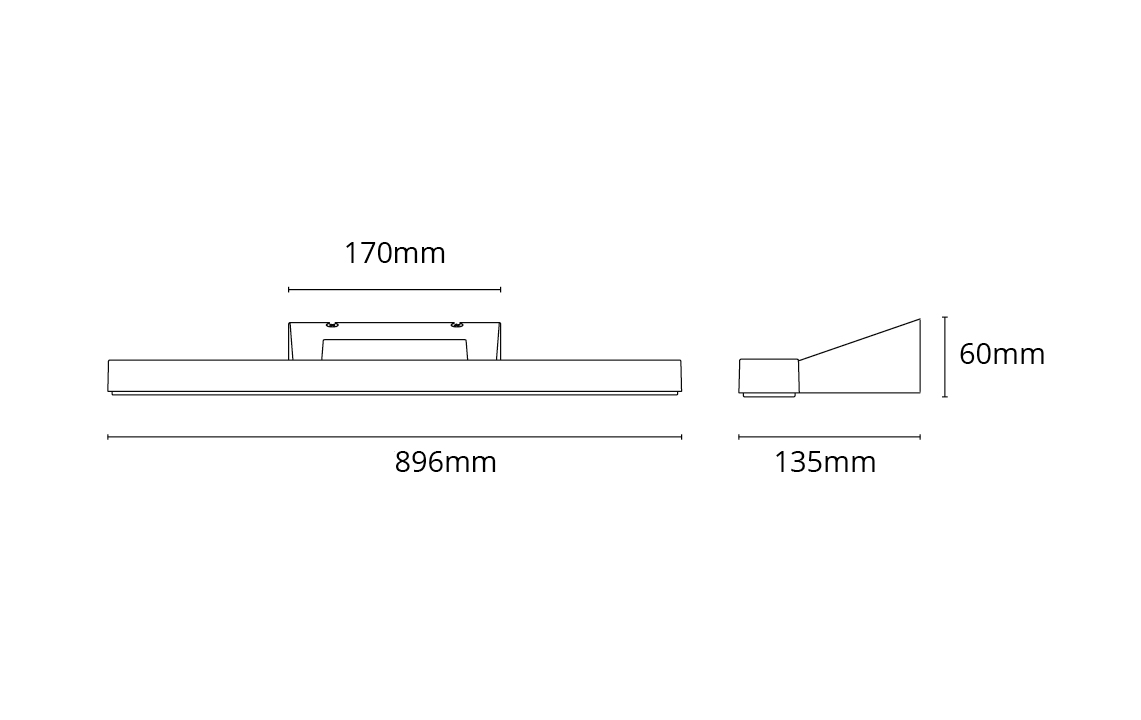

Dimensions

Length (mm) L
896
Width (mm) W
135
Height (mm) H
60
Depth (D)
135
Weight (kg) gross/net
1.621 / 1.262

Packaging

Packaging dimensions (mm)
917 x 142 x 68
