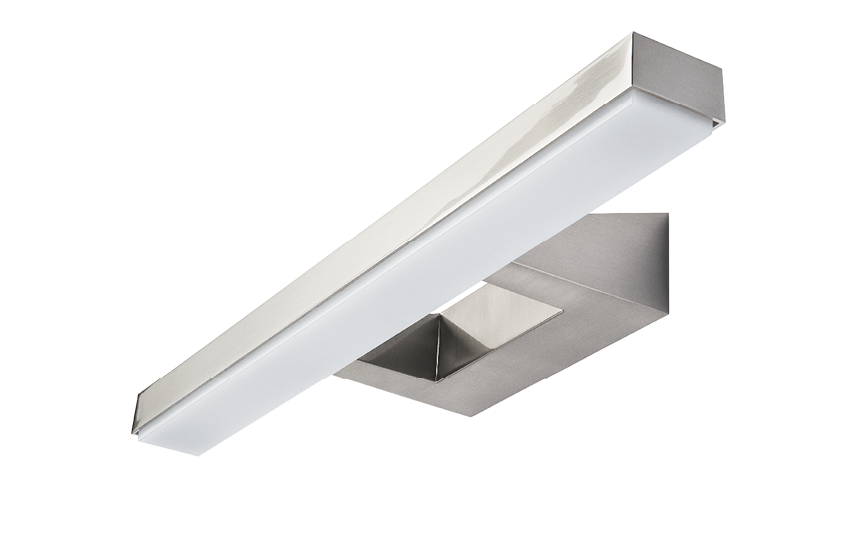

View Brushed steel 820lm 3000K Ra>90 Trailing edge

Article code
197421
EAN
7021981974213
Back to articlelist

Overview

Efficacy
75 lm/W
Lumen
820lm
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ik10
  • ip44
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 197421 Revit file - Generic View_460 - generic Revit file - Face Based View - face based

See more

Eulumdat file (ldt) 7021981974213_View Brushed steel 820lm 3000K Ra90 Trailing edge dimming Dialux file (uld) 7021981974213_View Brushed steel 820lm 3000K Ra90 Trailing edge dimming Relux file (rolf) 7021981974213_View_Brushed_steel_820lm_3000K_Ra_90_Trailing_edge_dimming EPD NEPD-8161-7835_View-Brushed-steel Mounting instruction View_User Manual CE Declaration View

How to specify

Text copied to clipboard

View Brushed steel 820lm 3000K Ra>90 Trailing edge, Article code: 197421, EAN: 7021981974213, IP44 (mounted horizontally) / IP20 (mounted vertically), IK10, Electrical: System wattage: 11W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 23, B16: 37, C10: 29, C16: 46, Light technic: Type of light source: LED, Luminous flux: 820lm, Efficacy: 75 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Lifetime: L80/B10>100,000, Light distribution: Direct, Optic: Opal, UGR: UGR<28, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP44 (mounted horizontally) / IP20 (mounted vertically), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Brushed steel, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 460, Width (mm) W: 135, Height (mm) H: 60, Depth (D): 135, Weight (kg) gross/net: 1.1 / 0.917, Packaging: Packaging dimensions (mm): 470 x 142 x 68

Electrical

System wattage
11W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 23, B16: 37, C10: 29, C16: 46

Light technic

Type of light source
LED
Luminous flux
820lm
Efficacy
75 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000
Lifetime
L80/B10>100,000

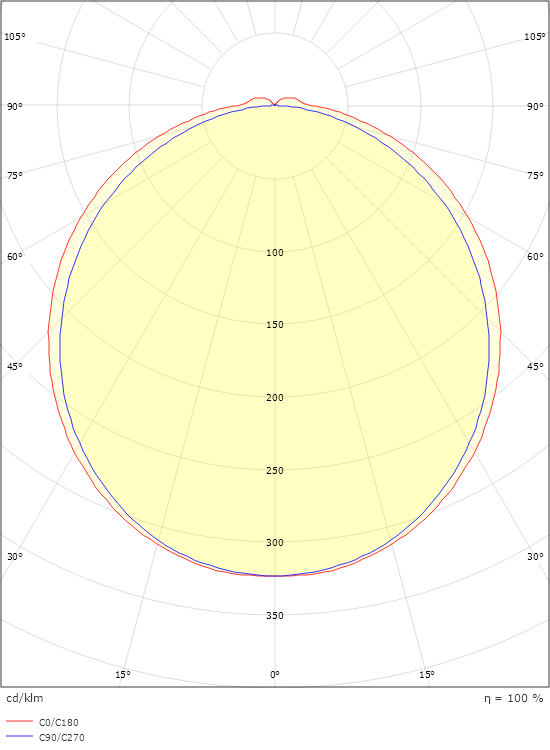

Light distribution
Direct
Optic
Opal
UGR
UGR<28
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Brushed steel
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
460
Width (mm) W
135
Height (mm) H
60
Depth (D)
135
Weight (kg) gross/net
1.1 / 0.917

Packaging

Packaging dimensions (mm)
470 x 142 x 68
