Zoom Square

Zoom Square White 310lm 2700K Ra>90 Integrated dimmer

Article code
912455
EAN
7021989124559
Replaces
912814
Back to articlelist

Overview

Efficacy
52 lm/W
Lumen
310lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 912455 Eulumdat file (ldt) 7021989124559_Zoom Square White 310lm 2700K Ra90-47520 Dialux file (uld) 7021989124559_Zoom Square White 310lm 2700K Ra90

See more

Relux file (rolf) 7021989124559_Zoom_Square_White_w__dimmer_310lm_2700K_Ra_90_Integrated_dimmer Revit file - Generic Zoom Square - Generic Revit file - Face Based Zoom Square - face based Mounting instruction Zoom Square_User Manual CE Declaration Zoom Square

How to specify

Text copied to clipboard

Zoom Square White 310lm 2700K Ra>90 Integrated dimmer, Article code: 912455, EAN: 7021989124559, IP20, Electrical: System wattage: 6W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 310lm, Efficacy: 52 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L70/B50>50,000, Light distribution: Direct, Beam angle: 36°, Control/Dimming: Type: Integrated dimmer, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Front: Aluminium, PA66 frontring, PBT base, steel arm, Colour: Matte white (RAL 9003), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 160, Width (mm) W: 143, Height (mm) H: 100, Weight (kg) gross/net: 0.659 / 0.636, Packaging: Packaging dimensions (mm): 140 x 100 x 158

Electrical

System wattage
6W
Voltage
220-240V
Frequency (Hz)
50/60Hz

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
310lm
Efficacy
52 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L70/B50>50,000

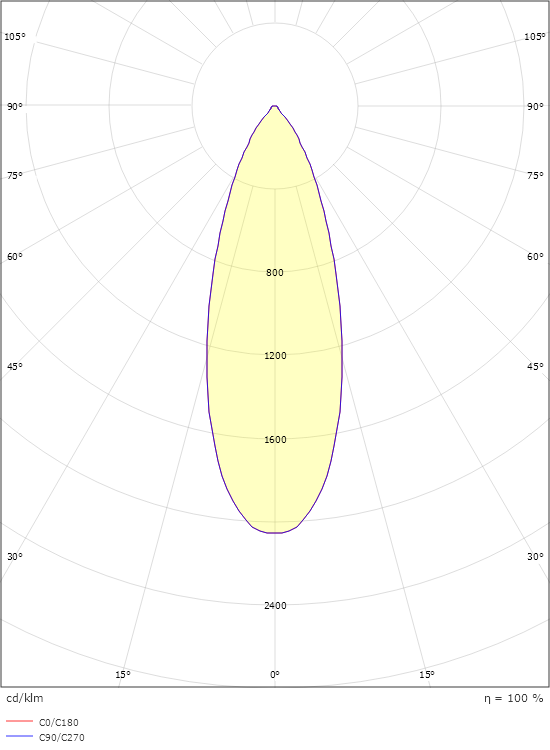

Light distribution
Direct
Beam angle
36°

Control/Dimming

Type
Integrated dimmer

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Front: Aluminium, PA66 frontring, PBT base, steel arm
Colour
Matte white (RAL 9003)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
160
Width (mm) W
143
Height (mm) H
100
Weight (kg) gross/net
0.659 / 0.636

Packaging

Packaging dimensions (mm)
140 x 100 x 158
