Zoom Square

Zoom Square White 320lm 3000K Ra>90 Integrated dimmer

Article code
912456
EAN
7021989124566
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
53 lm/W
Lumen
320lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 912456 Eulumdat file (ldt) 7021989124566_Zoom Square White 320lm 3000K Ra90-47531 Dialux file (uld) 7021989124566_Zoom Square White 320lm 3000K Ra90

See more

Relux file (rolf) 7021989124566_Zoom_Square_White_w__dimmer_320lm_3000K_Ra_90_Integrated_dimmer Revit file - Generic Zoom Square - Generic Revit file - Face Based Zoom Square - face based Mounting instruction Zoom Square_User Manual CE Declaration Zoom Square

How to specify

Text copied to clipboard

Zoom Square White 320lm 3000K Ra>90 Integrated dimmer, Article code: 912456, EAN: 7021989124566, IP20, Electrical: System wattage: 6W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 320lm, Efficacy: 53 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L70/B50>50,000, Light distribution: Direct, Beam angle: 36°, Control/Dimming: Type: Integrated dimmer, Protection: Luminaire class: Class II, IP Class: IP20, Materials and finish: Housing: Front: Aluminium, PA66 frontring, PBT base, steel arm, Colour: Matte white (RAL 9003), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 160, Width (mm) W: 143, Height (mm) H: 100, Weight (kg) gross/net: 0.53 / 0.53, Packaging: Packaging dimensions (mm): 140 x 100 x 158

Electrical

System wattage
6W
Voltage
220-240V
Frequency (Hz)
50/60Hz

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
320lm
Efficacy
53 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L70/B50>50,000

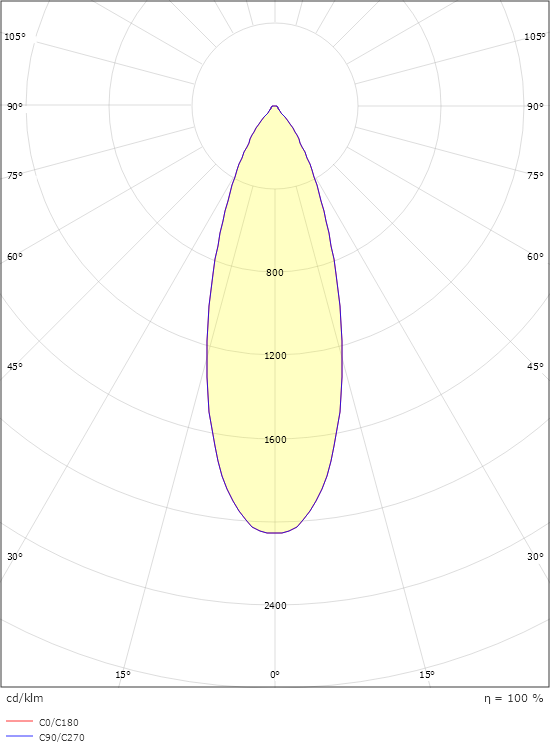

Light distribution
Direct
Beam angle
36°

Control/Dimming

Type
Integrated dimmer

Protection

Luminaire class
Class II
IP Class
IP20

Materials and finish

Housing
Front: Aluminium, PA66 frontring, PBT base, steel arm
Colour
Matte white (RAL 9003)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
160
Width (mm) W
143
Height (mm) H
100
Weight (kg) gross/net
0.53 / 0.53

Packaging

Packaging dimensions (mm)
140 x 100 x 158
