Stripline 230V Outdoor

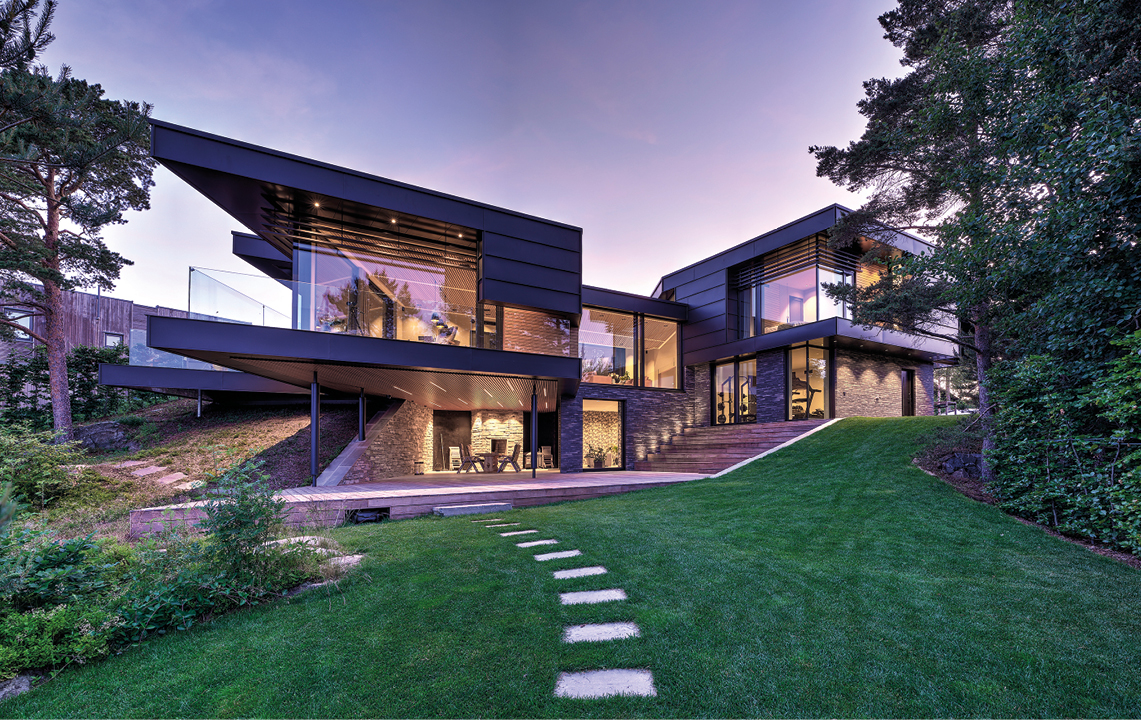

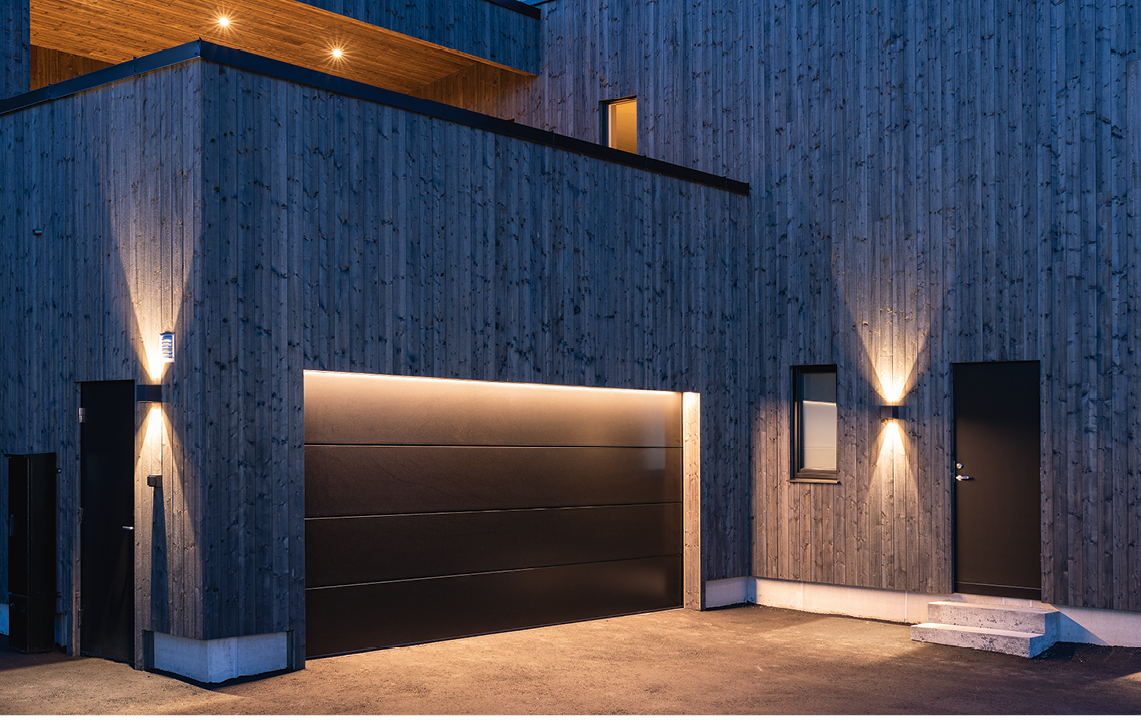

Elevate your lighting projects with StripLine 230V Outdoor, a versatile LED strip system designed for architectural lighting effects on ceilings and facades, functional lighting in parking garages, under stair railings, or decorative garden lighting.

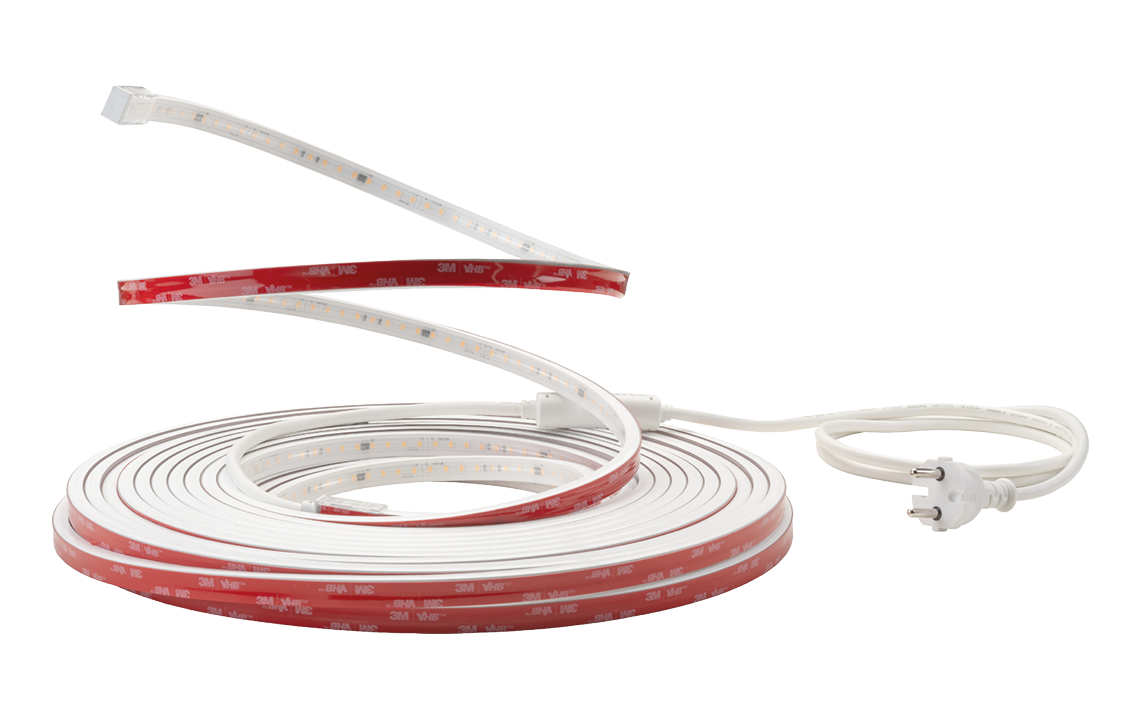

Direct 230V Connection; no driver is needed, enabling long lengths without voltage drop. Available in lengths of up to 40 meters and supplied with a 1.5m cable and plug. Mount it by using the adhesive tape on the back or with the included mounting clips, either directly on surfaces or in an aluminum profile (sold separately). The aluminum profile includes a robust polycarbonate (PC) diffuser, easily attached and removed. For seamless installations, the diffuser is also available in rolls for very long, continuous runs.
Stripline 230V Outdoor can be cut every 10 cm to customize each installation. After cutting, simply apply a new end cap to maintain water protection. The LED strip is encapsulated to IP65 standards and made from UV-resistant materials, ensuring durability and reliability outdoors.
High efficiency, excellent color rendering, and dimming capabilities via phase-cut dimmers. Recommended dimmers include LEDDim 400 and LEDDim Smart.
Available accessories includes fuse with 1.5m cable and plug, flexible connector (50mm), L-connector, and end-connection. All accessories are easy to install without the need for tools.
Article list
Stripline 230V Outdoor
:
Outdoor
Mounting type:
Surface
Light distribution:
Direct
SDCM:
3
Luminaire class:
Class II
IP Class:
IP65
Colour rendering (Ra):
Ra>90
Beam angle:
120°
Lifetime:
L70/B10> 100,000
Filters
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 5m | 2700K | 9W | 855lm/m | Trailing edge |
|
|||
| 10m | 2700K | 9W | 855lm/m | Trailing edge |
|
|||
| 20m | 2700K | 9W | 855lm/m | Trailing edge |
|
|||
| 40m | 2700K | 9W | 855lm/m | Trailing edge |
|
|||
| 20m | 2700K | 15W | 1425lm/m | Trailing edge |
|
|||
| 5m | 3000K | 9W | 900lm/m | Trailing edge |
|
|||
| 10m | 3000K | 9W | 900lm/m | Trailing edge |
|
|||
| 20m | 3000K | 9W | 900lm/m | Trailing edge |
|
|||
| 40m | 3000K | 9W | 900lm/m | Trailing edge |
|
|||
| 20m | 3000K | 15W | 1500lm/m | Trailing edge |
|
Sorry, we couldn’t find what you are looking for.
| Others | Tools | |||||||
|---|---|---|---|---|---|---|---|---|
| 5m | 2700K | 9W | 855lm/m | Trailing edge |
|
|||
| 10m | 2700K | 9W | 855lm/m | Trailing edge |
|
|||
| 20m | 2700K | 9W | 855lm/m | Trailing edge |
|
|||
| 40m | 2700K | 9W | 855lm/m | Trailing edge |
|
|||
| 20m | 2700K | 15W | 1425lm/m | Trailing edge |
|
|||
| 5m | 3000K | 9W | 900lm/m | Trailing edge |
|
|||
| 10m | 3000K | 9W | 900lm/m | Trailing edge |
|
|||
| 20m | 3000K | 9W | 900lm/m | Trailing edge |
|
|||
| 40m | 3000K | 9W | 900lm/m | Trailing edge |
|
|||
| 20m | 3000K | 15W | 1500lm/m | Trailing edge |
|
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Stripline 230V Outdoor 1,8m Black profile surface | L1800 x W26 x H24 | |||
| Stripline 230V Outdoor Black end cover surface kit | L24 x W26 x H12 | |||
| Stripline 230V Outdoor White Fuse with 1.5 m cable/plug and 2×end | L1500 x W13 x H8 | |||
| Stripline 230V Outdoor 50mm White Flexible Connector | L125 x W16 x H11 | |||
| Stripline 230V Outdoor White End piece | L29 x W16 x H11 | |||
| Stripline 230V Outdoor White L Connector | L44 x W44 x H11 | |||
| Stripline 230V Outdoor 1,8m White profile surface | L1800 x W26 x H24 | |||
| Stripline 230V Outdoor White end cover surface kit | L24 x W26 x H12 | |||
| Stripline 230V Outdoor 1,8m Diffuser | L1800 x W25 x H5 | |||
| Stripline 230V Outdoor 10m Diffuser | L10000 x W25 x H5 |
