Econ LED

Econ LED White 790lm 3000K Ra>80 Trailing edge

Article code
181193
EAN
7021981811938
Back to articlelist

Overview

Efficacy
79 lm/W
Lumen
790lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ik10
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 181193 Eulumdat file (ldt) 7021981811938_EnokEconLEDWhite10WLED3000K-30738 Dialux file (uld) 7021981811938_EnokEconLEDWhite10WLED3000K

See more

Relux file (rolf) 7021981811938_Econ_LED_White_650lm_3000K_Ra_80_Trailing_edge_dimming EPD NEPD-7627-7010_En-k-Cl-II Revit file - Generic Enok LED (Ø300) - generic Revit file - Face Based Enok LED 300 - face based Mounting instruction Econ LED_User Manual CE Declaration Enok LED

How to specify

Text copied to clipboard

Econ LED White 790lm 3000K Ra>80 Trailing edge, Article code: 181193, EAN: 7021981811938, IP44, IK10, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Luminous flux: 790lm, Efficacy: 79 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 120°, UGR: UGR<22, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP44, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 92, Diameter (mm) D: 300, Weight (kg) gross/net: 1.32 / 1.096, Packaging: Packaging dimensions (mm): 305 x 305 x 95

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Luminous flux
790lm
Efficacy
79 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>50,000

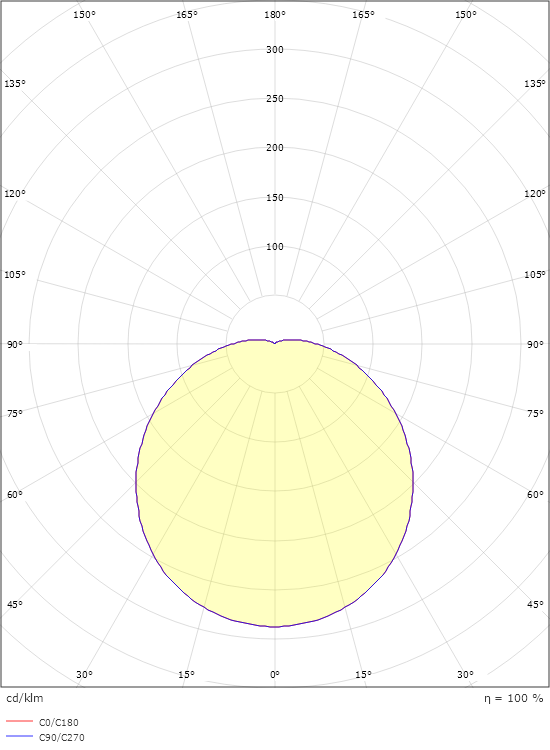

Light distribution
Direct
Optic
Opal
Beam angle
120°
UGR
UGR<22
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP44
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
92
Diameter (mm) D
300
Weight (kg) gross/net
1.32 / 1.096

Packaging

Packaging dimensions (mm)
305 x 305 x 95
