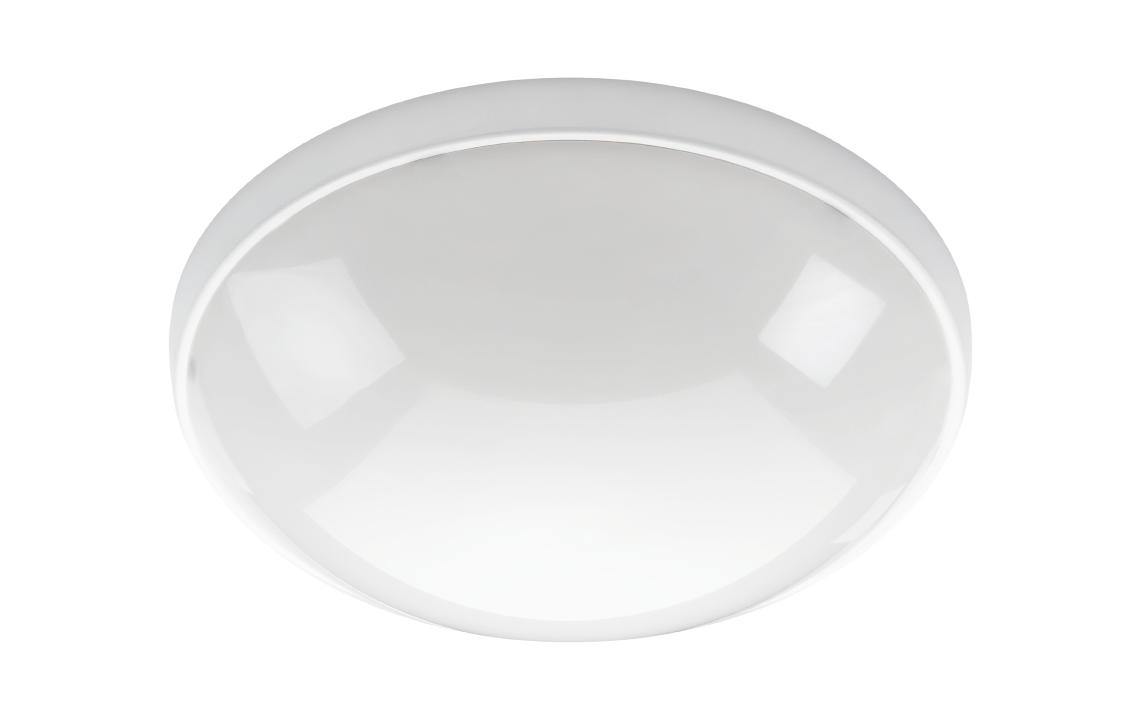

Orion White 1540lm 4000K Ra>80 Sensor Dim

SG code
212135
EAN
7021982121357
Back to articlelist

Overview

Efficacy
103 lm/W
Lumen
1540lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ik10
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 212135 Mounting instruction Orion Sensor Dim_User Manual EPD Orion-1500-Sensor-Dim CE Declaration Orion Relux file (rolf) 7021982121357_Orion_White_1540lm_4000K_Ra_80_Sensor_Dim Eulumdat file (ldt) 7021982121357_Orion White 1540lm 4000K Ra80 Sensor Dim Dialux file (uld) 7021982121357_Orion White 1540lm 4000K Ra80 Sensor Dim Revit file - Generic Orion - Generic Revit file - Face Based Orion - face based

How to specify

Text copied to clipboard

Orion White 1540lm 4000K Ra>80 Sensor Dim, Article code: 212135, EAN: 7021982121357, IP20, IK10, Electrical: System wattage: 15W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 35, B16: 56, C10: 43, C16: 69, Light technic: Type of light source: LED, Luminous flux: 1540lm, Efficacy: 103 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, UGR: UGR<25, Control/Dimming: Type: Sensor Dim, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Sunda Hus: C-, Materials and finish: Housing: Steel, Colour: White, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 87, Diameter (mm) D: 300, Weight (kg) gross/net: 1.2 / 0.9, Packaging: Packaging dimensions (mm): 310 x 310 x 95

Electrical

System wattage
15W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 35, B16: 56, C10: 43, C16: 69

Light technic

Type of light source
LED
Luminous flux
1540lm
Efficacy
103 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>50,000

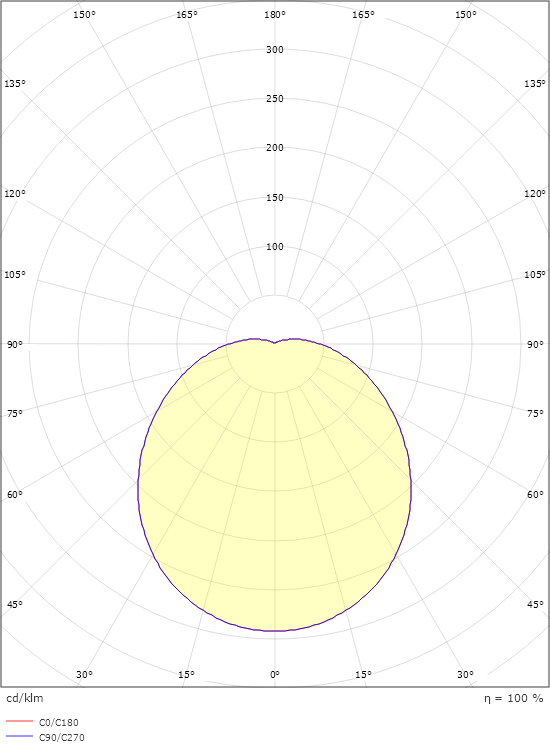

Light distribution
Direct
Optic
Opal
Beam angle
110°
UGR
UGR<25

Control/Dimming

Type
Sensor Dim

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting
Sunda Hus
C-

Materials and finish

Housing
Steel
Colour
White
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

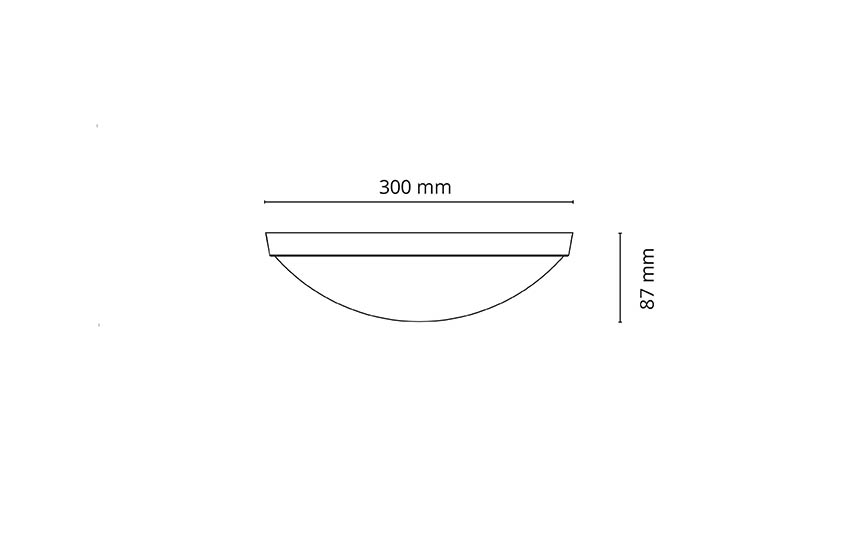

Dimensions

Height (mm) H
87
Diameter (mm) D
300
Weight (kg) gross/net
1.2 / 0.9

Packaging

Packaging dimensions (mm)
310 x 310 x 95
