Prelude Square

Prelude Square Black 1490lm 2700K Trailing edge

Article code
111388
EAN
7021981113889
Back to articlelist

Overview

Efficacy
93 lm/W
Lumen
1490lm
IP Class
IP44 (mounted horizontally) / IP40 (mounted vertically)
Colour temperature
2700K
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ik05
  • ip40
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 111388 Revit file - Generic Prelude Square - generic Revit file - Face Based Prelude Square - face based

See more

Eulumdat file (ldt) 7021981113889_Prelude Square Black 1490lm 2700K Ra90 Trailing edge dimming Eulumdat file (ldt) 7021981113889_Prelude Square Black 600lm 2700K Ra90 with cover Dialux file (uld) 7021981113889_Prelude Square Black 1490lm 2700K Ra90 Trailing edge dimming Dialux file (uld) 7021981113889_Prelude Square Black 600lm 2700K Ra90 with cover Relux file (rolf) 7021981113889_Prelude_Square_Black_1490lm_2700K_Ra_90_Trailing_edge_dimming Relux file (rolf) 7021981113889_Prelude_Square_Black_600lm_2700K_Ra_90_with_cover EPD NEPD-8001-7667_Prelude-Square Mounting instruction Prelude Square_User Manual CE Declaration Prelude Square

How to specify

Text copied to clipboard

Prelude Square Black 1490lm 2700K Trailing edge, Article code: 111388, EAN: 7021981113889, IP44 (mounted horizontally) / IP40 (mounted vertically), IK05, Electrical: System wattage: 16W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Light technic: Type of light source: LED, Luminous flux: 1490lm, Efficacy: 93 lm/W, Colour temperature: 2700K, Light distribution: Direct, Optic: Acrylic diffuser, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK05, IP Class: IP44 (mounted horizontally) / IP40 (mounted vertically), Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 519, Height (mm) H: 59, Depth (D): 62, Weight (kg) gross/net: 0.898 / 0.799, Packaging: Packaging dimensions (mm): 528 x 65 x 65

Electrical

System wattage
16W
Voltage
220-240V
Frequency (Hz)
50/60Hz

Light technic

Type of light source
LED
Luminous flux
1490lm
Efficacy
93 lm/W
Colour temperature
2700K

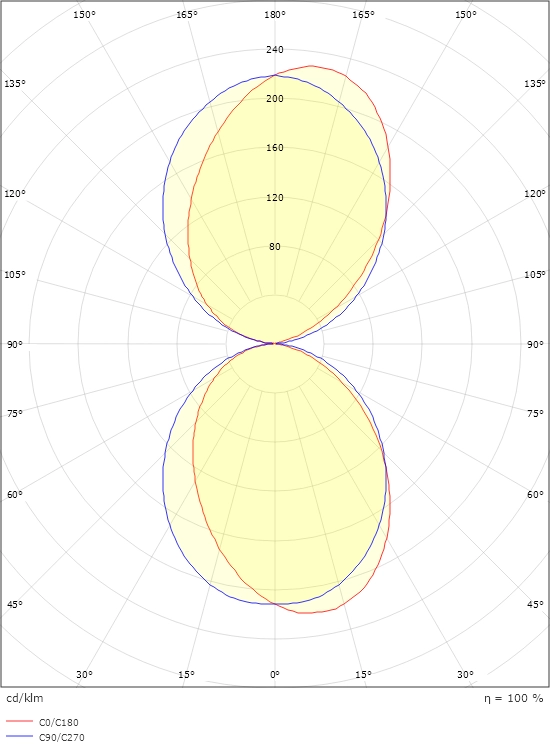

Light distribution
Direct
Optic
Acrylic diffuser

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK05
IP Class
IP44 (mounted horizontally) / IP40 (mounted vertically)

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
519
Height (mm) H
59
Depth (D)
62
Weight (kg) gross/net
0.898 / 0.799

Packaging

Packaging dimensions (mm)
528 x 65 x 65
