Prelude Square

Prelude Square White 1540lm 4000K Ra>90 DALI-2

Article code
111383
EAN
7021981113834
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
96 lm/W
Lumen
1540lm
IP Class
IP44 (mounted horizontally) / IP40 (mounted vertically)
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • ik05
  • ip40
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 111383 Revit file - Generic Prelude Square - generic Revit file - Face Based Prelude Square - face based

See more

Mounting instruction Prelude Square DALI_User Manual Eulumdat file (ldt) 7021981113834_Prelude Square White 1540lm 4000K Ra90 DALI Eulumdat file (ldt) 7021981113834_Prelude Square White 950lm 4000K Ra90 with cover Dialux file (uld) 7021981113834_Prelude Square White 1540lm 4000K Ra90 DALI Dialux file (uld) 7021981113834_Prelude Square White 950lm 4000K Ra90 with cover Relux file (rolf) 7021981113834_Prelude_Square_White_1540lm_4000K_Ra_90_DALI Relux file (rolf) 7021981113834_Prelude_Square_White_1540lm_4000K_Ra_90_with_cover EPD NEPD-8001-7667_Prelude-Square CE Declaration Prelude Square

How to specify

Text copied to clipboard

Prelude Square White 1540lm 4000K Ra>90 DALI-2, Article code: 111383, EAN: 7021981113834, IP44 (mounted horizontally) / IP40 (mounted vertically), IK05, Electrical: System wattage: 16W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 43, B16: 69, C10: 43, C16: 69, Light technic: Type of light source: LED, Luminous flux: 1540lm, Efficacy: 96 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Lifetime: L80/B10>60,000, Light distribution: Direct, Optic: Acrylic diffuser, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IK Class: IK05, IP Class: IP44 (mounted horizontally) / IP40 (mounted vertically), Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 519, Height (mm) H: 59, Depth (D): 62, Weight (kg) gross/net: 0.898 / 0.799, Packaging: Packaging dimensions (mm): 528 x 65 x 65

Electrical

System wattage
16W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 43, B16: 69, C10: 43, C16: 69

Light technic

Type of light source
LED
Luminous flux
1540lm
Efficacy
96 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000
Lifetime
L80/B10>60,000

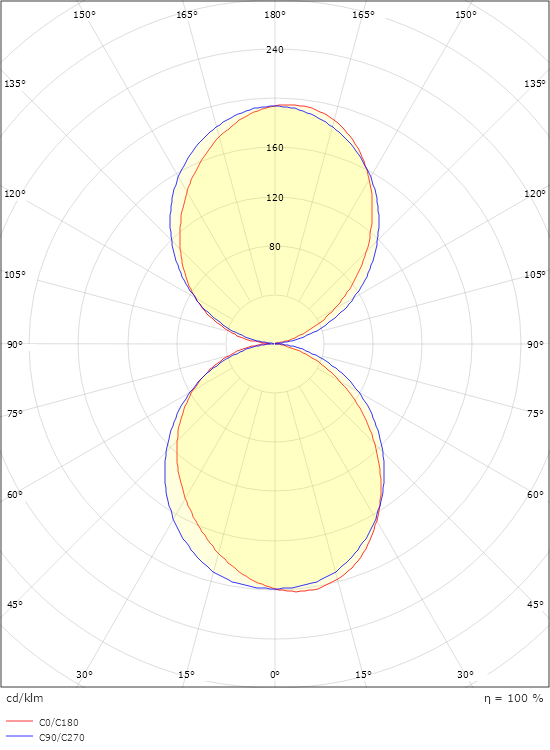

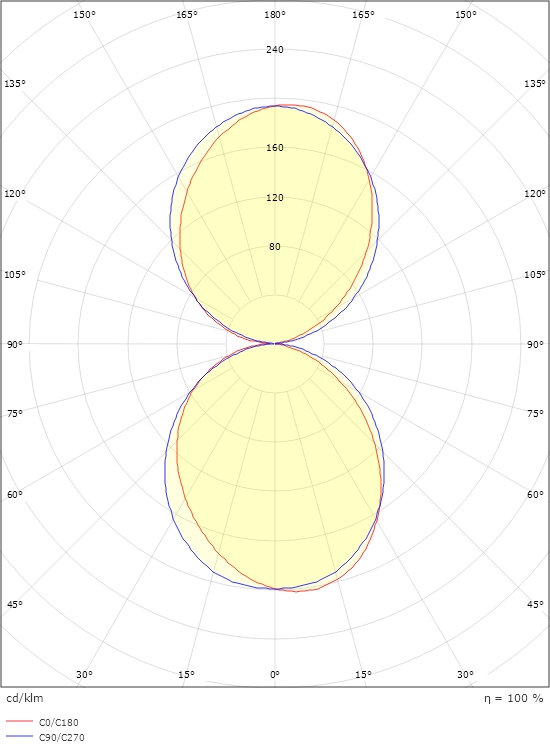

Light distribution
Direct
Optic
Acrylic diffuser

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IK Class
IK05
IP Class
IP44 (mounted horizontally) / IP40 (mounted vertically)

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
519
Height (mm) H
59
Depth (D)
62
Weight (kg) gross/net
0.898 / 0.799

Packaging

Packaging dimensions (mm)
528 x 65 x 65
