Prelude Square

Prelude Square White 1530lm 2700K Ra>90 PIR Sensor

Article code
111374
EAN
7021981113742
Back to articlelist

Overview

Efficacy
118 lm/W
Lumen
1530lm
IP Class
IP44 (mounted horizontally) / IP40 (mounted vertically)
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L80/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik05
  • ip40
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 111374 Revit file - Generic Prelude Square PIR Sensor - generic Revit file - Face Based Prelude Square PIR sensor - face based

See more

Mounting instruction Prelude Square PIR_User Manual Eulumdat file (ldt) 7021981113742_Prelude Square White 1530lm 2700K Ra90 PIR Sensor Dialux file (uld) 7021981113742_Prelude Square White 1530lm 2700K Ra90 PIR Sensor Relux file (rolf) 7021981113742_Prelude_Square_White_1530lm_2700K_Ra_90_PIR_Sensor EPD NEPD-8270-7941_Prelude-Square-Pir CE Declaration Prelude Square

How to specify

Text copied to clipboard

Prelude Square White 1530lm 2700K Ra>90 PIR Sensor, Article code: 111374, EAN: 7021981113742, IP44 (mounted horizontally) / IP40 (mounted vertically), IK05, Electrical: System wattage: 13W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 1530lm, Efficacy: 118 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Light distribution: Direct, Optic: Acrylic diffuser, Control/Dimming: Type: PIR Sensor, Protection: Luminaire class: Class II, IK Class: IK05, IP Class: IP44 (mounted horizontally) / IP40 (mounted vertically), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 615, Height (mm) H: 59, Depth (D): 62, Weight (kg) gross/net: 1.21 / 1.068, Packaging: Packaging dimensions (mm): 625 x 77 x 65

Electrical

System wattage
13W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
1530lm
Efficacy
118 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000

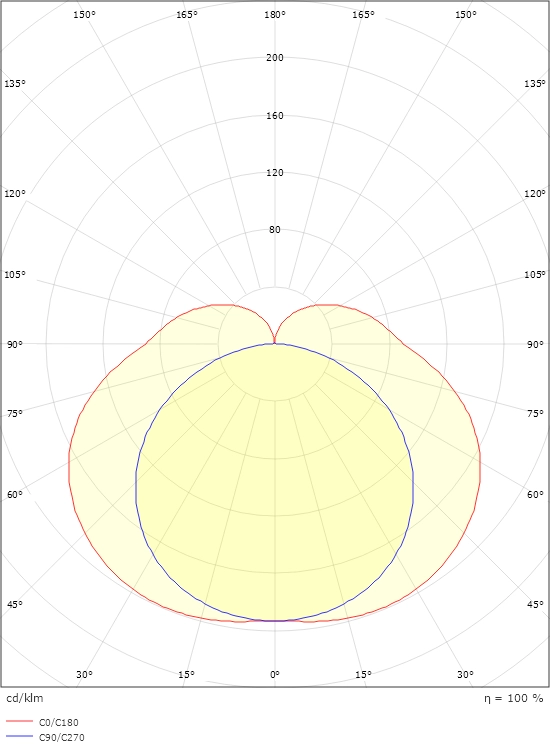

Light distribution
Direct
Optic
Acrylic diffuser

Control/Dimming

Type
PIR Sensor

Protection

Luminaire class
Class II
IK Class
IK05
IP Class
IP44 (mounted horizontally) / IP40 (mounted vertically)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
615
Height (mm) H
59
Depth (D)
62
Weight (kg) gross/net
1.21 / 1.068

Packaging

Packaging dimensions (mm)
625 x 77 x 65
