Sense Pro PIR

Sense Pro 600x600 White 4340lm 3000K Ra>80 PIR Sensor

Article code
212680
EAN
7021982126802
Replaces
212321
Back to articlelist

Overview

Efficacy
124 lm/W
Lumen
4340lm
IP Class
IP40/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
  • dipswitch
  • ik10
  • ip20ip40
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 212680 Revit file - Generic Sense Pro 600x600 PIR - generic Revit file - Face Based Sense PRO Opalprism 600x600 PIR - face based

See more

Eulumdat file (ldt) 7021982126802_Sense Pro 600x600 White 4340lm 3000K Ra80 PIR Sensor Dialux file (uld) 7021982126802_Sense Pro 600x600 White 4340lm 3000K Ra80 PIR Sensor Relux file (rolf) 7021982126802_Sense_Pro_600x600_White_4340lm_3000K_Ra_80_PIR_Sensor EPD NEPD-8163-7854_Sense-Pro-600x600-Pir Mounting instruction Sense 600x600 PIR_User Manual CE Declaration Sense PIR

How to specify

Text copied to clipboard

Sense Pro 600x600 White 4340lm 3000K Ra>80 PIR Sensor, Article code: 212680, EAN: 7021982126802, IP40/IP20, IK10, Electrical: System wattage: 35W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B16: 25, C16: 40, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 4340lm, Efficacy: 124 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 110°, Photobiological safety: RG 0, Control/Dimming: Type: PIR Sensor, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP40/IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Module: Exposed T-carrier 15/24mm, Cable: Cable 2m, Connection: Includes driver, cable and plug, Dimensions: Length (mm) L: 597, Width (mm) W: 597, Height (mm) H: 44, Weight (kg) gross/net: 3.5 / 3.01, Packaging: Packaging dimensions (mm): 635 x 635 x 65

Electrical

System wattage
35W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B16: 25, C16: 40

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
4340lm
Efficacy
124 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

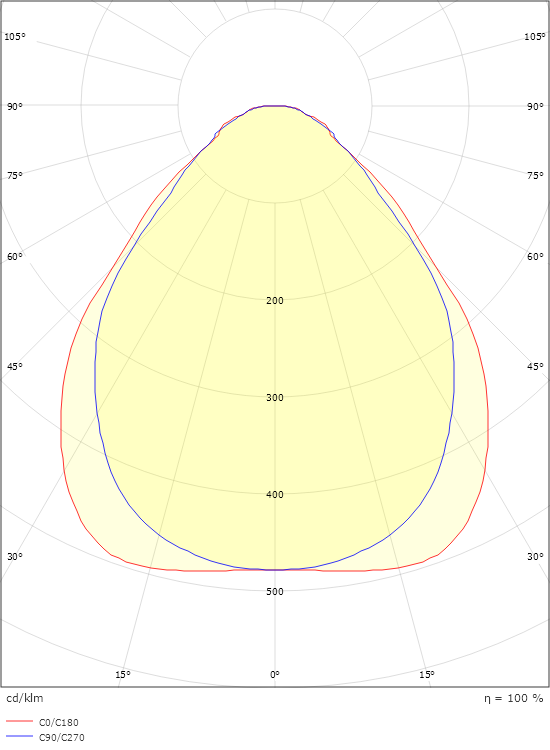

Light distribution
Direct
Optic
Opalprism
Beam angle
110°
Photobiological safety
RG 0

Control/Dimming

Type
PIR Sensor

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP40/IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Module
Exposed T-carrier 15/24mm
Cable
Cable 2m
Connection
Includes driver, cable and plug

Dimensions

Length (mm) L
597
Width (mm) W
597
Height (mm) H
44
Weight (kg) gross/net
3.5 / 3.01

Packaging

Packaging dimensions (mm)
635 x 635 x 65
