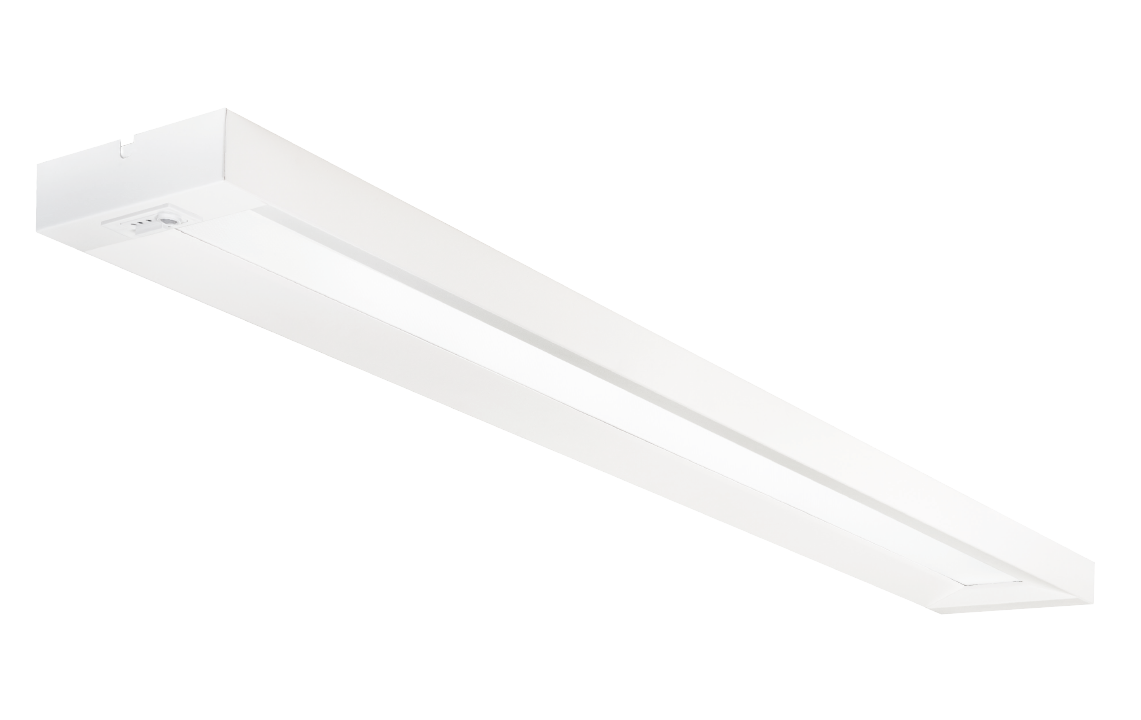

EcoLine Connect

Version of EcoLine which comes complete with driver and integrated wireless SG Connect sensor.

The sensor is discreetly positioned at the edge, switches on when it detects movement and switches off after a pre-selected period of time to save energy.

The sensor also includes an integrated daylight sensor. If this function is activated, the sensor will constantly work to provide the desired amount of light in its work area.

The lighting control is easy to configure using the SG Connect Commissioning App, and the luminaire can be used individually or as part of a larger system, which can easily be enlarged or reconfigured as needed.

Article list

EcoLine Connect

Indoor Direct Suspended or surface SDCM: 3 Class I IP20 Ra>80, Ra>90 L80/B20> 100,000

Filters

Module

Colour temperature

System wattage

Lumen

						Others	Tools
212096	1200	3000K	30W	3910lm	Connect	130 lm/W, L1235 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212098	1600	3000K	36W	4880lm	Connect	136 lm/W, L1600 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212816	1200	3000K	30W	3324lm	Connect	111 lm/W, L1235 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212818	1600	3000K	36W	4148lm	Connect	115 lm/W, L1600 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212097	1200	4000K	30W	4150lm	Connect	138 lm/W, L1235 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212099	1600	4000K	36W	5180lm	Connect	144 lm/W, L1600 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212817	1200	4000K	30W	3528lm	Connect	118 lm/W, L1235 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212819	1600	4000K	36W	4403lm	Connect	122 lm/W, L1600 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
212096	1200	3000K	30W	3910lm	Connect	130 lm/W, L1235 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212098	1600	3000K	36W	4880lm	Connect	136 lm/W, L1600 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212816	1200	3000K	30W	3324lm	Connect	111 lm/W, L1235 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212818	1600	3000K	36W	4148lm	Connect	115 lm/W, L1600 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212097	1200	4000K	30W	4150lm	Connect	138 lm/W, L1235 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212099	1600	4000K	36W	5180lm	Connect	144 lm/W, L1600 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212817	1200	4000K	30W	3528lm	Connect	118 lm/W, L1235 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212819	1600	4000K	36W	4403lm	Connect	122 lm/W, L1600 x W166 x H55, 3 pole Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Image	Article code	Description	Dimensions	Tools
	212255	T-profil White Suspension Rail 600mm	L596 x W35 x H17	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
	212095	EcoLine Wire kit Steel/plastic	L2000	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

References

Green transition

All old lighting is being replaced with the SG Connect system as part of the green shift towards more environmentally friendly and energy-efficient solutions.
