Inspire Connect

How to specify

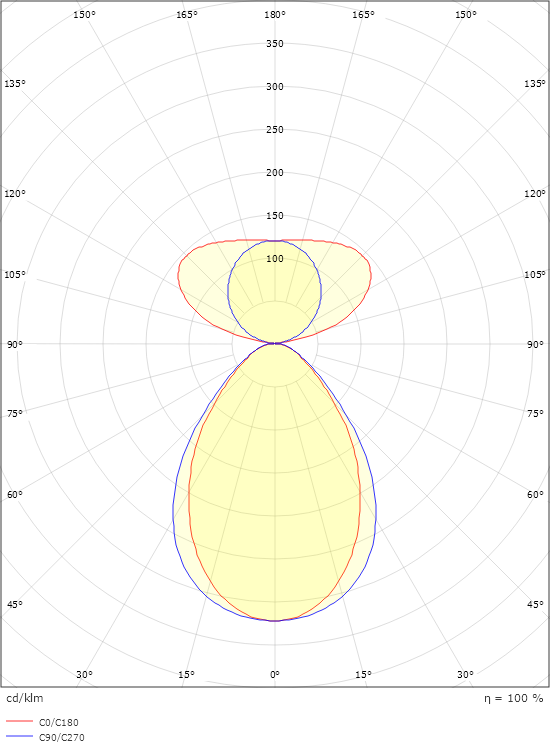

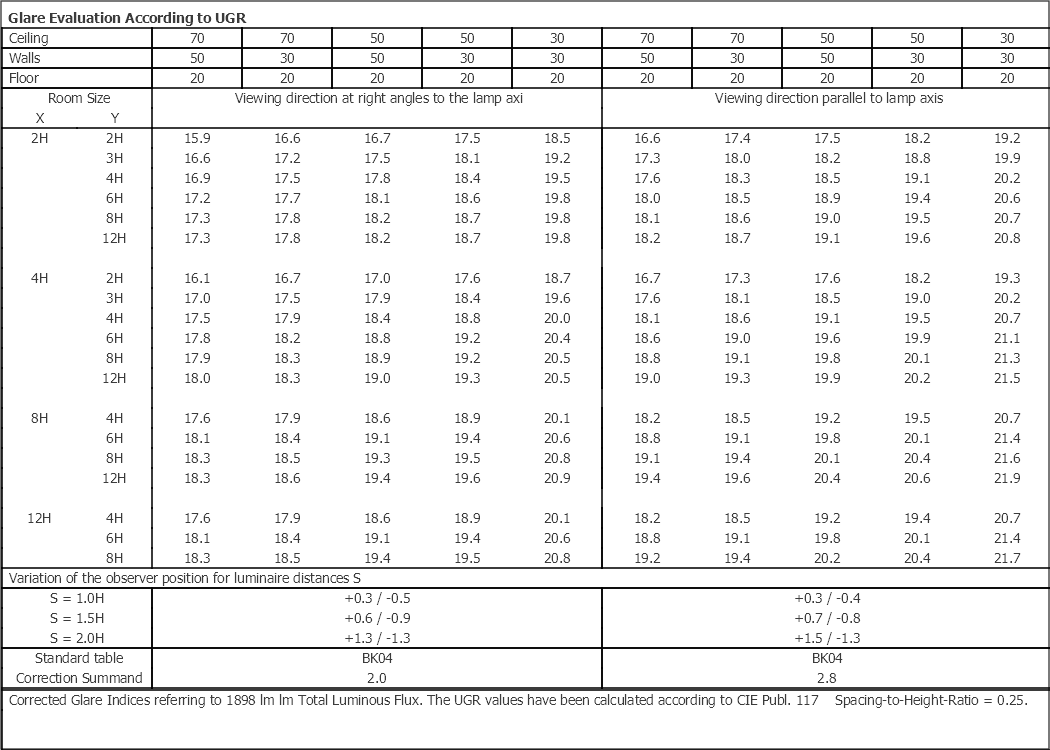

Inspire Connect 1200 White prism 3400lm 3000K Ra>90 Connect, Article code: 212931, EAN: 7021982129315, IP20, Electrical: System wattage: 29W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 26, B16: 42, C10: 43, C16: 71, Leakage current (mA): 0.50, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 3400lm, Efficacy: 117 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct/Indirect 50/50%, Optic: Prism Optic, UGR: UGR<19, Photobiological safety: RG 0, Control/Dimming: Type: Connect, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: B, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Suspended, Indoor, Module: 1200, Wire set: 2x2m wire kit, Cable: Cable 3x0,75mm² 2,5m, Dimensions: Length (mm) L: 1241, Width (mm) W: 38, Height (mm) H: 70, Weight (kg) gross/net: 3.775 / 3.375, Packaging: Packaging dimensions (mm): 1365 x 90 x 61
