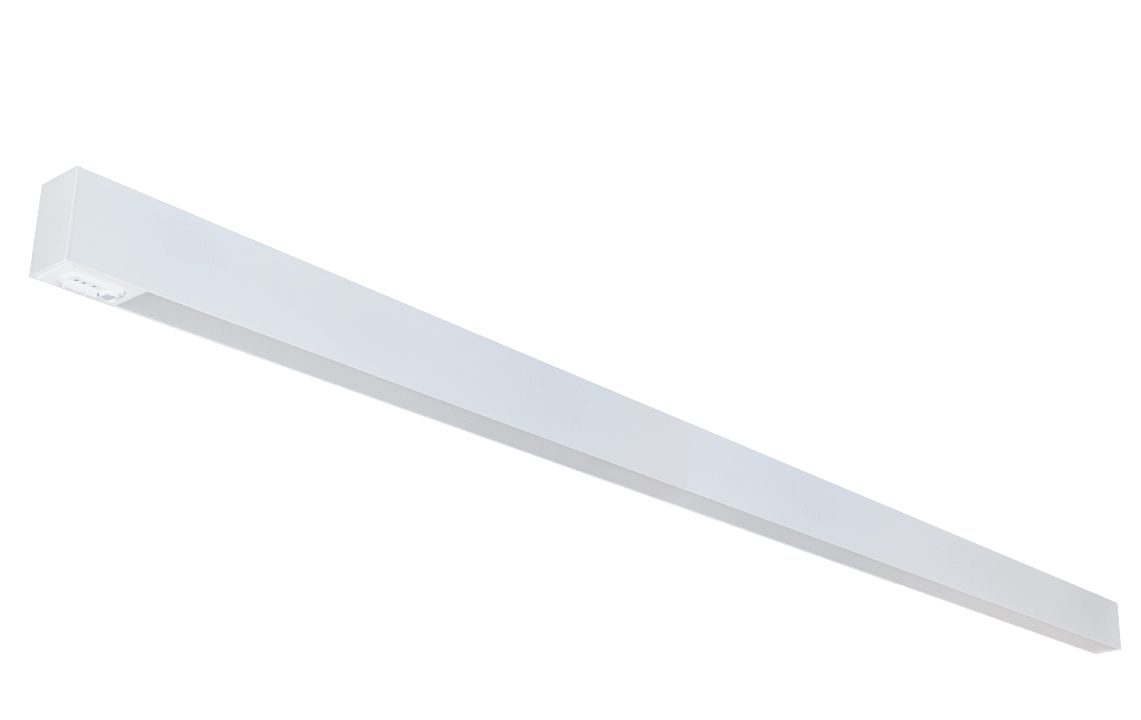

Lineal Surface Connect

Lineal surface 1400 White 2320lm 3000K Ra>80 Connect

Article code
9341000675
EAN
5703821206044
Back to articlelist

Overview

Efficacy
110 lm/W
Lumen
2320lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ik08
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 9341000675 Revit file - Generic Lineal Surface 1400 connect - generic Revit file - Ceiling Based Lineal Surface 1400 connect - ceiling based

See more

Eulumdat file (ldt) 5703821206044_Lineal Surface 1400 White 2320lm 3000K Ra80 Connect Dialux file (uld) 5703821206044_Lineal Surface 1400 White 2320lm 3000K Ra80 Connect Relux file (rolf) 5703821206044_Lineal_Surface_1400_White_2320lm_3000K_Ra_80_Connect EPD NEPD-8387-8063_Lineal-Surface-1400-Connect Mounting instruction Lineal Surface Connect_User Manuals CE Declaration Lineal Surface Connect

How to specify

Text copied to clipboard

Lineal surface 1400 White 2320lm 3000K Ra>80 Connect, Article code: 9341000675, EAN: 5703821206044, IP20, IK08, Electrical: System wattage: 21W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 26, B16: 42, C10: 44, C16: 70, Light technic: Type of light source: LED, Luminous flux: 2320lm, Efficacy: 110 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L93/>50,000, Light distribution: Direct, Control/Dimming: Type: Connect, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Mounting/Connection: Mounting: Surface, Indoor, Module: 1400, Dimensions: Length (mm) L: 1472, Width (mm) W: 42, Height (mm) H: 70, Weight (kg) gross/net: 3.5 / 2.9, Packaging: Packaging dimensions (mm): 1630 x 47 x 85

Electrical

System wattage
21W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 26, B16: 42, C10: 44, C16: 70

Light technic

Type of light source
LED
Luminous flux
2320lm
Efficacy
110 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L93/>50,000
Light distribution
Direct

Control/Dimming

Type
Connect

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Surface, Indoor
Module
1400

Dimensions

Length (mm) L
1472
Width (mm) W
42
Height (mm) H
70
Weight (kg) gross/net
3.5 / 2.9

Packaging

Packaging dimensions (mm)
1630 x 47 x 85
