Rax Soft 220-240 Connect

Rax Soft 220-240 Satin 2240lm 3000K Ra>80 Connect

Article code
212904+820556
EAN
7021982129049+7021988205563
Back to articlelist

Overview

Efficacy
118 lm/W
Lumen
2240lm
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • ip44
  • ip20
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 212904+820556 Mounting instruction Rax Soft Connect 220-240 User Manual CE Declaration Rax Soft 200 Connect Relux file (rolf) 702198212904907021988205563_Rax_Soft_220-240_Satin_2240lm_3000K_Ra_80_Connect Eulumdat file (ldt) 702198212904907021988205563_Rax Soft 220-240 Satin 2240lm 3000K Ra80 Connect Dialux file (uld) 702198212904907021988205563_Rax Soft 220-240 Satin 2240lm 3000K Ra80 Connect

How to specify

Text copied to clipboard

Rax Soft 220-240 Satin 2240lm 3000K Ra>80 Connect, Article code: 212904+820556, EAN: 7021982129049+7021988205563, IP44 (mounted horizontally) / IP20 (mounted vertically), Electrical: System wattage: 19W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 2240lm, Efficacy: 118 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Satin Matt Reflector, Beam angle: 62°, Visible flicker (PstLM): 0.09, Stroboscopic flicker (SVM): 0.05, Photobiological safety: RG 1, Control/Dimming: Type: Connect, Protection: Luminaire class: Class II SELV, IP Class: IP44 (mounted horizontally) / IP20 (mounted vertically), Energy and approvals: Contains light source of energy class: C, Materials and finish: Housing: Flame retardant polycarbonate, Colour: White/Satin mat, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Recessed, Indoor, Connection: 3 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 93, Diameter (mm) D: 256, Cut-out (mm): 220-240, Weight (kg) gross/net: 1.175 / 0.93, Packaging: Packaging dimensions (mm): 260 x 260 x 110

Electrical

System wattage
19W
Voltage
220-240V
Frequency (Hz)
50/60Hz

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
2240lm
Efficacy
118 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

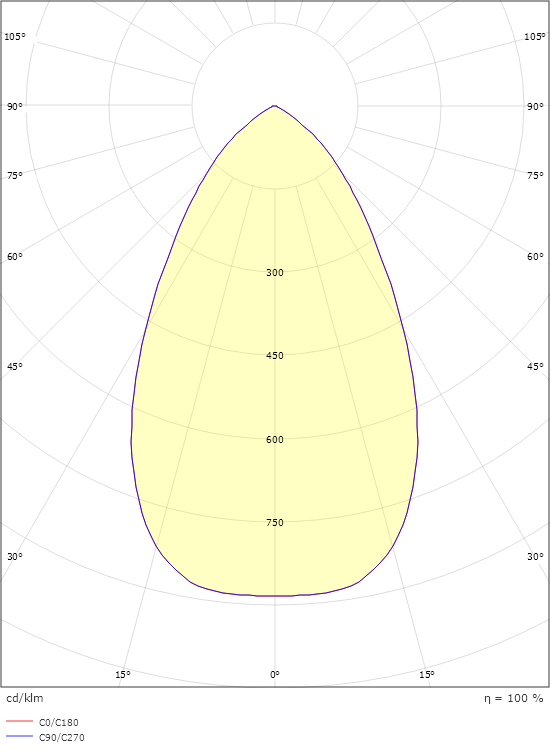

Light distribution
Direct
Optic
Satin Matt Reflector
Beam angle
62°
Visible flicker (PstLM)
0.09
Stroboscopic flicker (SVM)
0.05
Photobiological safety
RG 1

Control/Dimming

Type
Connect

Protection

Luminaire class
Class II SELV
IP Class
IP44 (mounted horizontally) / IP20 (mounted vertically)

Energy and approvals

Contains light source of energy class
C

Materials and finish

Housing
Flame retardant polycarbonate
Colour
White/Satin mat
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
3 pol Linect / screwless terminal block

Dimensions

Height (mm) H
93
Diameter (mm) D
256
Cut-out (mm)
220-240
Weight (kg) gross/net
1.175 / 0.93

Packaging

Packaging dimensions (mm)
260 x 260 x 110
