Sense Pro Connect 300x1200

Sense Pro Connect 300x1200 White 3000K Ra>80 Connect

Article code
212686
EAN
7021982126864
Back to articlelist

Overview

IP Class
IP40/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ik10
  • ip20ip40
  • klasse_3
  • ce

Tools

Downloads

Specification sheet 212686 Eulumdat file (ldt) 7021982126864_Sense Pro Connect 300x1200 White 3370lm 3000K Ra80 @700mA Eulumdat file (ldt) 7021982126864_Sense Pro Connect 300x1200 White 4250lm 3000K Ra80 @900mA

See more

Dialux file (uld) 7021982126864_Sense Pro Connect 300x1200 White 3370lm 3000K Ra80 @700mA Dialux file (uld) 7021982126864_Sense Pro Connect 300x1200 White 4250lm 3000K Ra80 @900mA Relux file (rolf) 7021982126864_Sense_Pro_Connect_300x1200_White_3370lm_3000K_Ra_80_@700mA Relux file (rolf) 7021982126864_Sense_Pro_Connect_300x1200_White_4250lm_3000K_Ra_80_@900mA EPD NEPD-8384-8052_Sense-Pro-Connect-300x1200 Mounting instruction Sense Pro Connect_User Manual CE Declaration Sense Pro Connect 300x1200

How to specify

Text copied to clipboard

Sense Pro Connect 300x1200 White 3000K Ra>80 Connect, Article code: 212686, EAN: 7021982126864, IP40/IP20, IK10, Electrical: Voltage: 33V, Frequency (Hz): 50/60Hz, Light technic: Type of light source: LED, Light source included: Yes, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 110°, Photobiological safety: RG 0, Control/Dimming: Type: Connect, Protection: Luminaire class: Class III, IK Class: IK10, IP Class: IP40/IP20, Energy and approvals: Contains light source of energy class: C, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 300x1200 Exposed T-carrier 15/24mm, Connection: Quick connector, Dimensions: Length (mm) L: 1197, Width (mm) W: 297, Height (mm) H: 11, Weight (kg) gross/net: 4.175 / 3.925, Packaging: Packaging dimensions (mm): 1234 x 324 x 33

Electrical

Voltage
33V
Frequency (Hz)
50/60Hz

Light technic

Type of light source
LED
Light source included
Yes
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

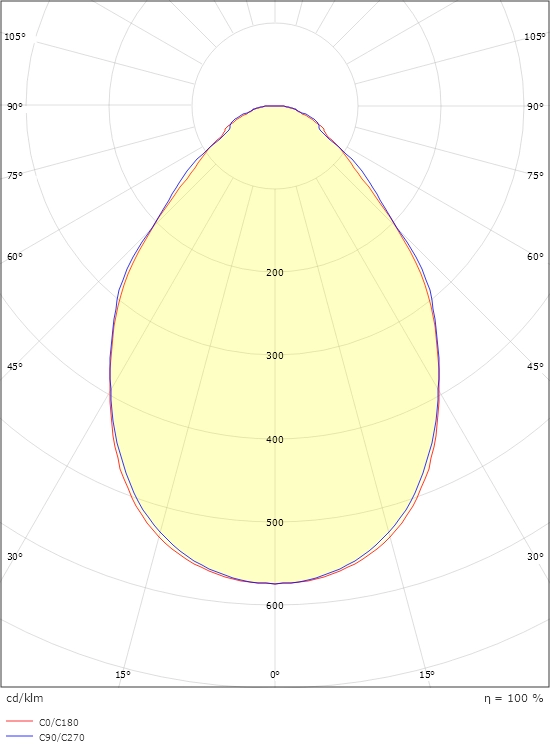

Light distribution
Direct
Optic
Opalprism
Beam angle
110°
Photobiological safety
RG 0

Control/Dimming

Type
Connect

Protection

Luminaire class
Class III
IK Class
IK10
IP Class
IP40/IP20

Energy and approvals

Contains light source of energy class
C

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
300x1200 Exposed T-carrier 15/24mm
Connection
Quick connector

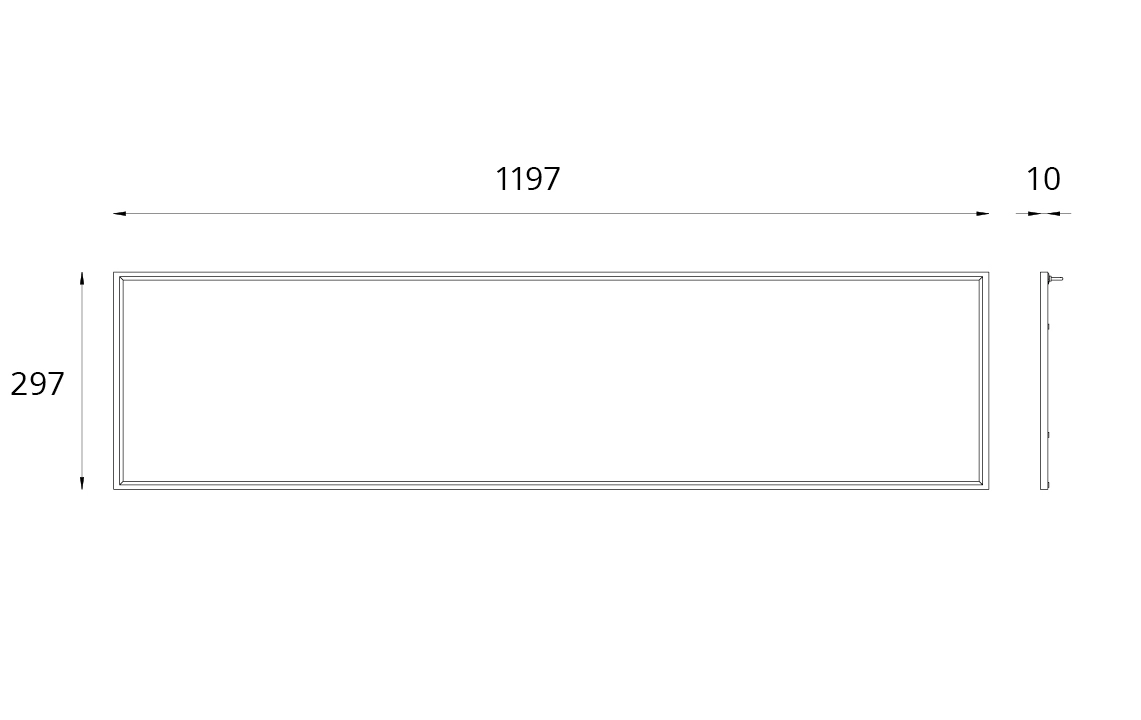

Dimensions

Length (mm) L
1197
Width (mm) W
297
Height (mm) H
11
Weight (kg) gross/net
4.175 / 3.925

Packaging

Packaging dimensions (mm)
1234 x 324 x 33
