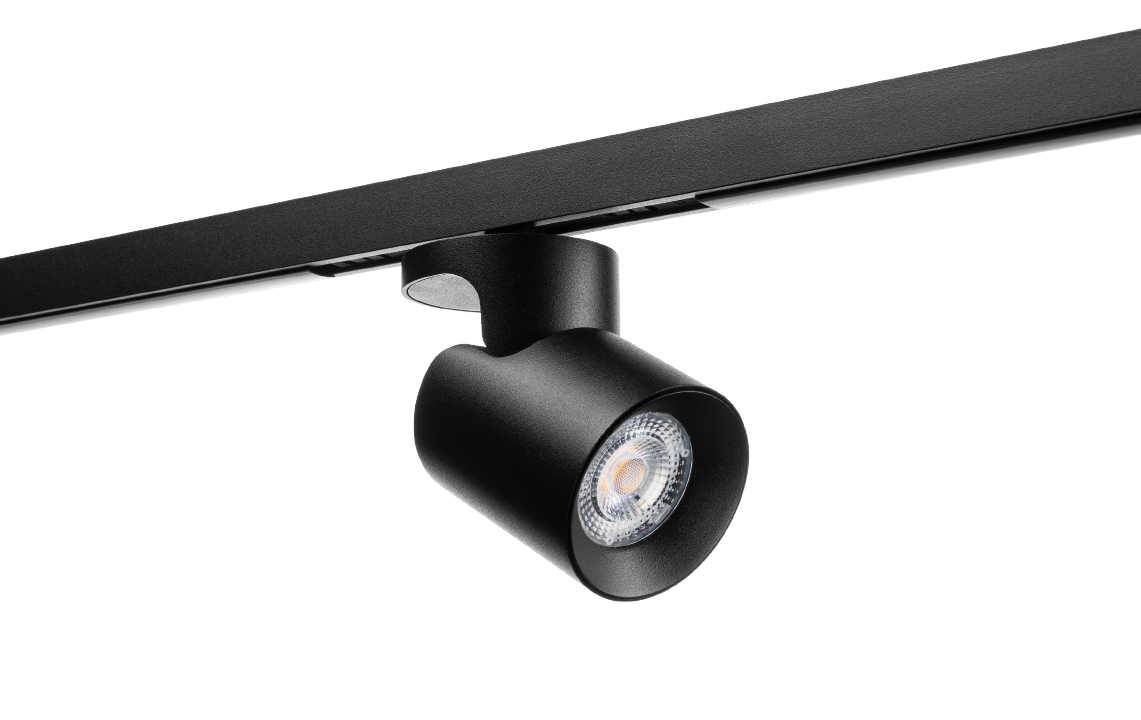

Zip Aneto Mini

Zip Aneto Mini Black 570lm 3000K Ra>90 Trailing edge

Article code
320796
EAN
7021983207968
Back to articlelist

Overview

Wattage
6,5W
Efficacy
88 lm/W
Lumen
570lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • flickerfree
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 320796 Revit file - Generic Zip Aneto Mini - generic Eulumdat file (ldt) 7021983207968_Zip Aneto Mini Black 570lm 3000K Ra90 Trailing edge dimming

See more

Dialux file (uld) 7021983207968_Zip Aneto Mini Black 570lm 3000K Ra90 Trailing edge dimming Relux file (rolf) 7021983207968_Zip_Aneto_Mini_Black_570lm_3000K_Ra_90_Trailing_edge_dimming EPD NEPD-11738-11692_Zip-Aneto-Mini Mounting instruction Zip Aneto Mini_User Manual CE Declaration Zip Aneto Mini

How to specify

Text copied to clipboard

Zip Aneto Mini Black 570lm 3000K Ra>90 Trailing edge, Article code: 320796, EAN: 7021983207968, IP20, Electrical: Wattage: 6,5W, System wattage: 6.5W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 180, B16: 300, C10: 180, C16: 300, Light technic: Type of light source: LED, Luminous flux: 570lm, Efficacy: 88 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L80/B20>100,000, Light distribution: Direct, Optic: Lens, Beam angle: 42°, UGR: UGR<19, Visible flicker (PstLM): 0.01, Stroboscopic flicker (SVM): 0.02, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: F, Materials and finish: Housing: Aluminium, Mounting/Connection: Mounting: Surface, Indoor, Connection: Zip track (adapter included), Dimensions: Height (mm) H: 85, Diameter (mm) D: 65, Weight (kg) gross/net: 0.37 / 0.31, Packaging: Packaging dimensions (mm): 140 x 70 x 115

Electrical

Wattage
6,5W
System wattage
6.5W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 180, B16: 300, C10: 180, C16: 300

Light technic

Type of light source
LED
Luminous flux
570lm
Efficacy
88 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L80/B20>100,000

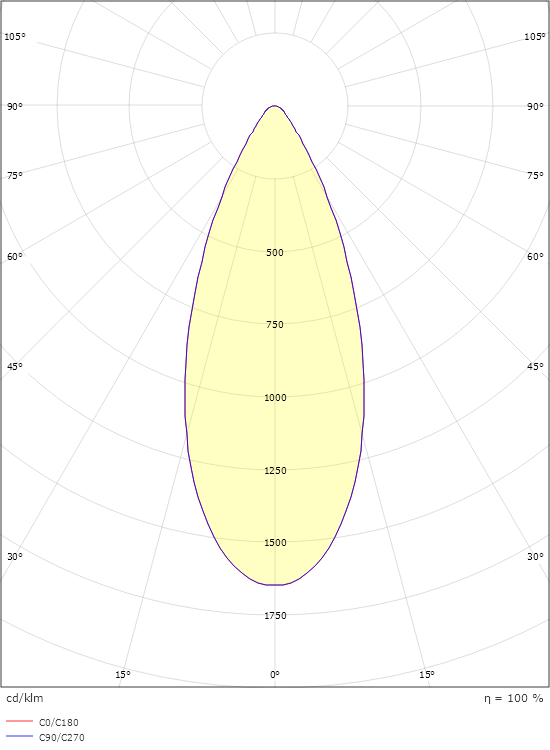

Light distribution
Direct
Optic
Lens
Beam angle
42°
UGR
UGR<19
Visible flicker (PstLM)
0.01
Stroboscopic flicker (SVM)
0.02

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
F

Materials and finish

Housing
Aluminium

Mounting/Connection

Mounting
Surface, Indoor
Connection
Zip track (adapter included)

Dimensions

Height (mm) H
85
Diameter (mm) D
65
Weight (kg) gross/net
0.37 / 0.31

Packaging

Packaging dimensions (mm)
140 x 70 x 115
