Zip Inspire

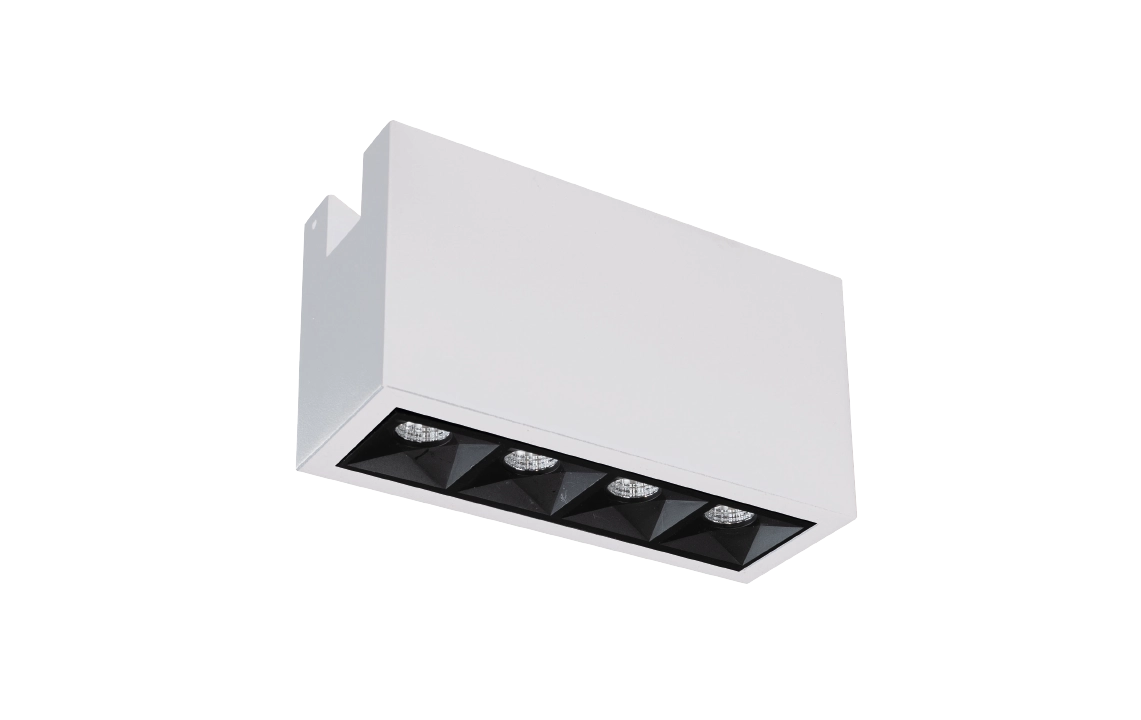

Zip Inspire 150 White 450lm 2700K Ra 98 Trailing edge

Article code
320760
EAN
7021983207609
Back to articlelist

Overview

Efficacy
56 lm/W
Lumen
450lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
Lifetime
100,000 L90/B10>
Mounting
Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • flickerfree
  • ip20
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 320760 Revit file - Generic Zip Inspire 150 - generic Revit file - Ceiling Based Zip Inspire 150 - ceiling based

See more

Eulumdat file (ldt) 7021983207609_Zip Inspire 150 White 450lm 2700K Ra 98 Trailing edge dimming Dialux file (uld) 7021983207609_Zip Inspire 150 White 450lm 2700K Ra 98 Trailing edge dimming Relux file (rolf) 7021983207609_Zip_Inspire_150_White_450lm_2700K_Ra_98_Trailing_edge_dimming EPD NEPD-11745-11685_Zip-Inspire-150 Mounting instruction Zip Inspire 150_User Manual CE Declaration Zip Inspire

How to specify

Text copied to clipboard

Zip Inspire 150 White 450lm 2700K Ra 98 Trailing edge, Article code: 320760, EAN: 7021983207609, IP20, Electrical: System wattage: 8W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 450lm, Efficacy: 56 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Beam angle: 55°, Visible flicker (PstLM): 0.1, Stroboscopic flicker (SVM): 0.1, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II SELV, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Mounting/Connection: Mounting: Indoor, Module: 150, Connection: Zip track (adapter included), Dimensions: Length (mm) L: 160, Width (mm) W: 59, Height (mm) H: 85, Weight (kg) gross/net: 0.99 / 0.65, Packaging: Packaging dimensions (mm): 92 x 66 x 168

Electrical

System wattage
8W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
450lm
Efficacy
56 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000
Light distribution
Direct
Beam angle
55°
Visible flicker (PstLM)
0.1
Stroboscopic flicker (SVM)
0.1

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II SELV
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Indoor
Module
150
Connection
Zip track (adapter included)

Dimensions

Length (mm) L
160
Width (mm) W
59
Height (mm) H
85
Weight (kg) gross/net
0.99 / 0.65

Packaging

Packaging dimensions (mm)
92 x 66 x 168
