Zip Inspire

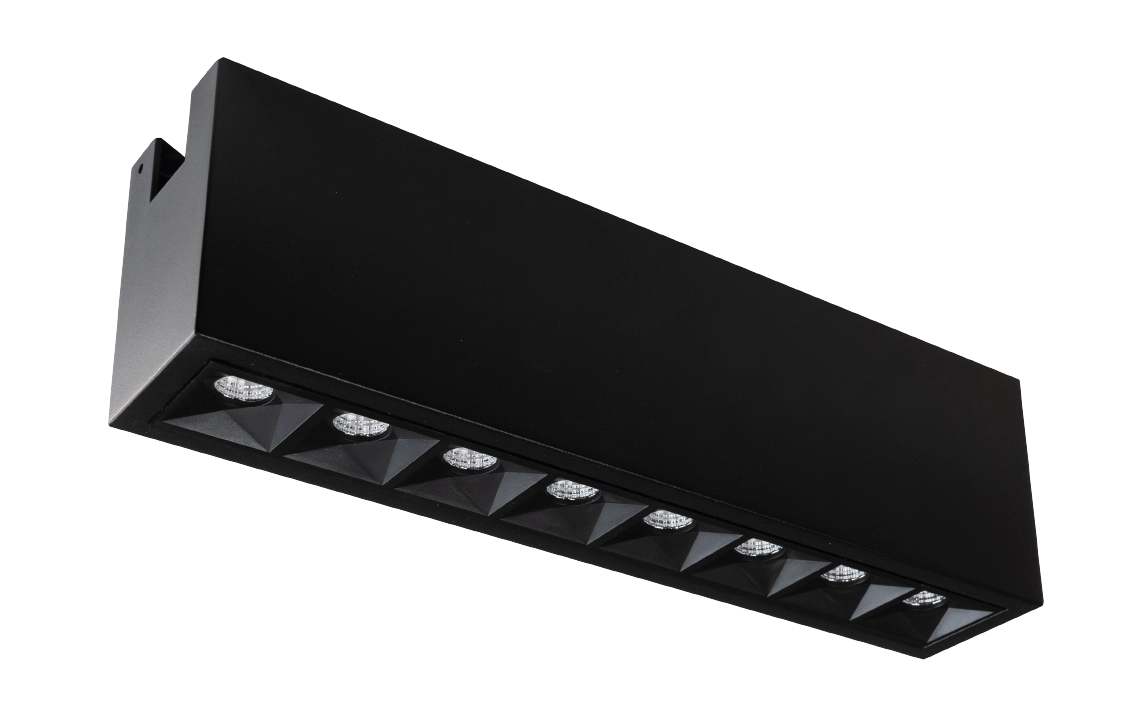

Zip Inspire 300 Black 950lm 3000K Ra 98 Trailing edge
- Article code
- 320779
- EAN
- 7021983207791
Overview
- Efficacy
- 63 lm/W
- Lumen
- 950lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Indoor
Tools
Downloads
Specification sheet
320779
pdf
(Opens in new tab)
Mounting instruction
Zip Inspire 300_User Manual
pdf
(Opens in new tab)
EPD
NEPD-11746-11684_Zip-Inspire-300
pdf
(Opens in new tab)
CE Declaration
Zip Inspire
pdf
(Opens in new tab)
Relux file (rolf)
7021983207791_Zip_Inspire_300_Black_950lm_3000K_Ra_98_Trailing_edge_dimming
rolf
Eulumdat file (ldt)
7021983207791_Zip Inspire 300 Black 950lm 3000K Ra 98 Trailing edge dimming
ldt
Dialux file (uld)
7021983207791_Zip Inspire 300 Black 950lm 3000K Ra 98 Trailing edge dimming
uld
Revit file - Generic
Zip Inspire 300 - generic
rfa
Revit file - Ceiling Based
Zip Inspire 300 - ceiling based
rfa
Electrical
- System wattage
- 15W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
Light technic
- Type of light source
- LED
- Luminous flux
- 950lm
- Efficacy
- 63 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>100,000

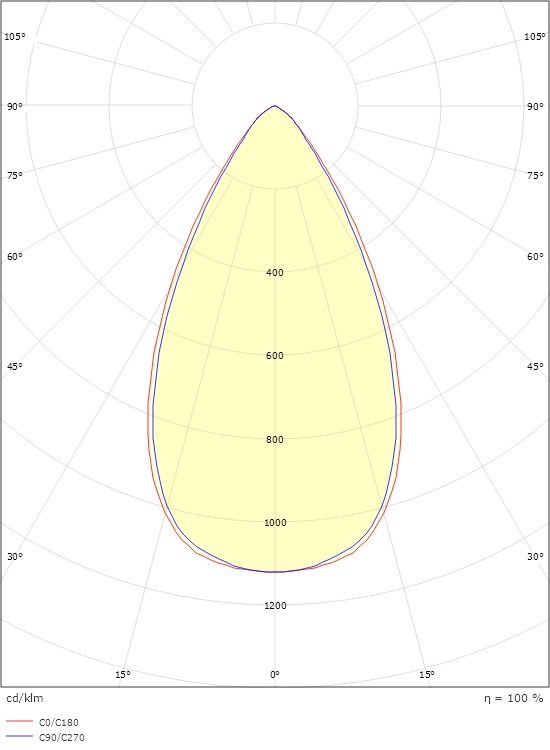

- Light distribution
- Direct
- Beam angle
- 55°
- Visible flicker (PstLM)
- 0.1
- Stroboscopic flicker (SVM)
- 0.1
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II SELV
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
Mounting/Connection
- Mounting
- Indoor
- Module
- 300
- Connection
- Zip track (adapter included)
Dimensions
- Length (mm) L
- 300
- Width (mm) W
- 59
- Height (mm) H
- 85
- Weight (kg) gross/net
- 1.144 / 1.05
Packaging
- Packaging dimensions (mm)
- 92 x 66 x 308
