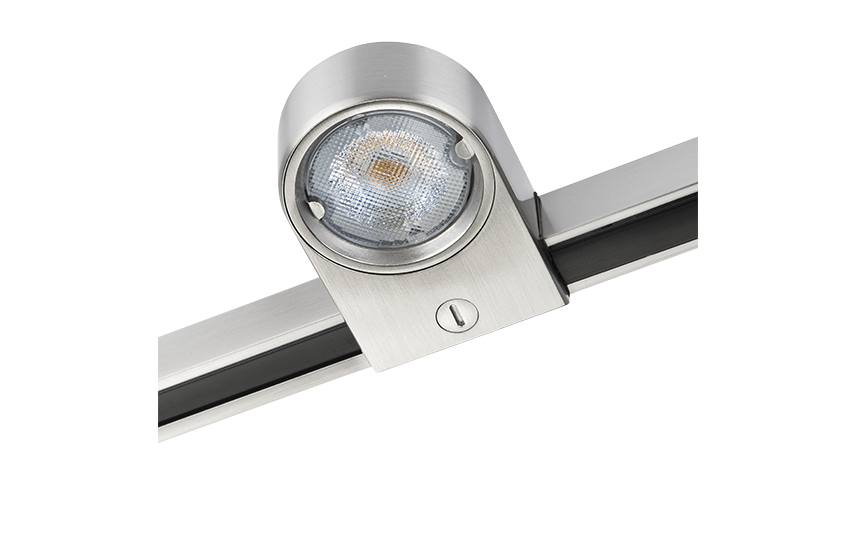

Zip Star 1-Circuit

Zip Star Brushed steel 440lm 2700K Ra>90 Trailing edge

Article code
3031
EAN
7021980030316
Back to articlelist

Overview

Wattage
5W
Efficacy
68 lm/W
Lumen
440lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 3031 Mounting instruction Zip Star Mounting instructions CE Declaration Zip Star Relux file (rolf) 7021980030316_Zip_Star_Brushed_steel_440lm_2700K_Ra_90_Trailing_edge_dimming Eulumdat file (ldt) 7021980030316_ZipStarBrushedSteel6.5WLED2700KRa90-33941 Dialux file (uld) 7021980030316_ZipStarBrushedSteel6.5WLED2700KRa90 Revit file - Generic Zip Star - Generic Revit file - Face Based Zip star - face based

How to specify

Text copied to clipboard

Zip Star Brushed steel 440lm 2700K Ra>90 Trailing edge, Article code: 3031, EAN: 7021980030316, IP20, Electrical: Wattage: 5W, System wattage: 6.5W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 440lm, Efficacy: 68 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Plastic clear, Beam angle: 50°, UGR: UGR<25, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Materials and finish: Housing: Aluminium, Colour: Brushed steel, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Zip track (adapter included), Dimensions: Width (mm) W: 64, Height (mm) H: 29, Depth (D): 92, Weight (kg) gross/net: 0.2 / 0.19, Packaging: Packaging dimensions (mm): 110 x 72 x 42

Electrical

Wattage
5W
System wattage
6.5W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
440lm
Efficacy
68 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L70/B50>50,000

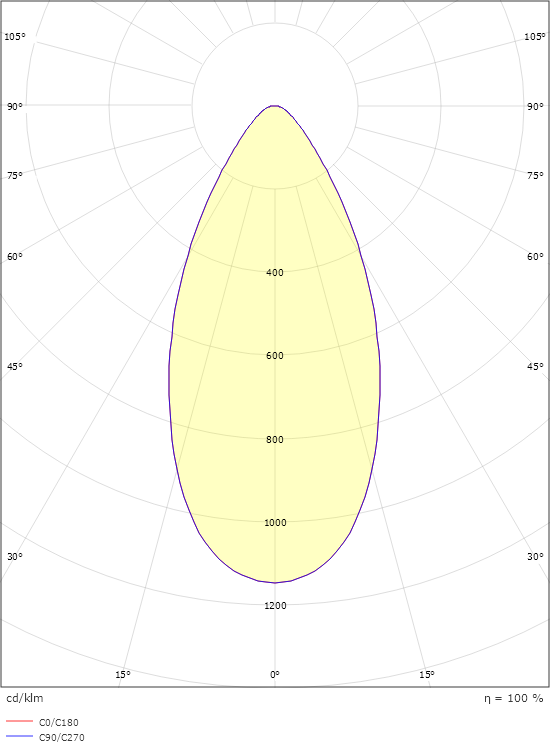

Light distribution
Direct
Optic
Plastic clear
Beam angle
50°
UGR
UGR<25

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Materials and finish

Housing
Aluminium
Colour
Brushed steel
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Zip track (adapter included)

Dimensions

Width (mm) W
64
Height (mm) H
29
Depth (D)
92
Weight (kg) gross/net
0.2 / 0.19

Packaging

Packaging dimensions (mm)
110 x 72 x 42
