Zip Tube Micro

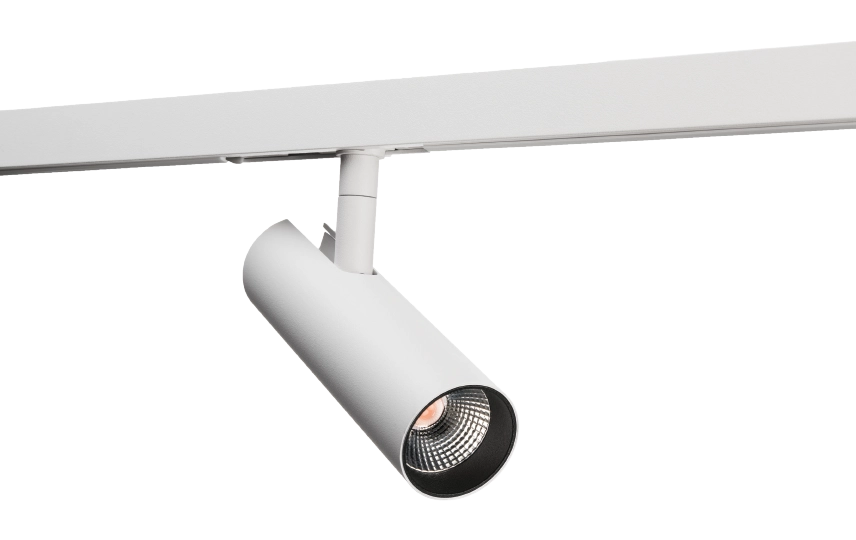

Zip Tube Micro White DimToWarm 340lm 2000-2800K Ra>95 Trailing edge

Article code
320603
EAN
7021983206039
Back to articlelist

Overview

Efficacy
49 lm/W
Lumen
340lm
IP Class
IP20
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>95
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • flickerfree
  • dimtowarm
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 320603 Revit file - Generic Zip Tube Micro - generic Revit file - Face Based Zip Tube Micro - face based

See more

Eulumdat file (ldt) 7021983206039_Zip Tube Micro White 340lm 2000-2800K Ra95 Trailing edge dimming Dialux file (uld) 7021983206039_Zip Tube Micro White 340lm 2000-2800K Ra95 Trailing edge dimming Relux file (rolf) 7021983206039_Zip_Tube_Micro_White_340lm_2000-2800K_Ra_95_Trailing_edge_dimming EPD NEPD-11470-11407_Zip-Tube-Micro-DTW Mounting instruction Zip Tube Micro_User Manual CE Declaration Zip Tube Micro

How to specify

Text copied to clipboard

Zip Tube Micro White DimToWarm 340lm 2000-2800K Ra>95 Trailing edge, Article code: 320603, EAN: 7021983206039, IP20, Electrical: System wattage: 7W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 180, B16: 290, C10: 180, C16: 290, Light technic: Type of light source: LED, Luminous flux: 340lm, Efficacy: 49 lm/W, Colour temperature: 2000-2800K, Colour rendering (Ra): Ra>95, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Light distribution: Direct, Optic: Reflector medium, Beam angle: 40°, UGR: UGR<19, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Zip track (adapter included), Dimensions: Length (mm) L: 135, Width (mm) W: 39, Height (mm) H: 135, Weight (kg) gross/net: 0.3 / 0.25, Packaging: Packaging dimensions (mm): 135 x 39 x 135

Electrical

System wattage
7W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 180, B16: 290, C10: 180, C16: 290

Light technic

Type of light source
LED
Luminous flux
340lm
Efficacy
49 lm/W
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>95
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000

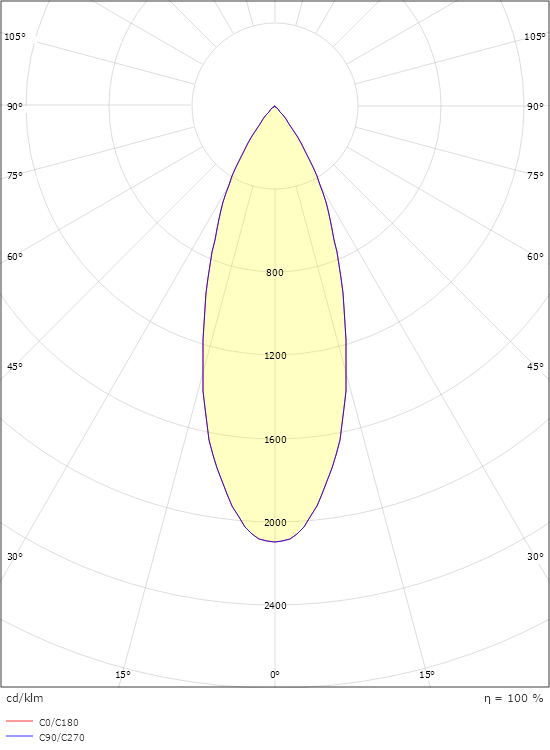

Light distribution
Direct
Optic
Reflector medium
Beam angle
40°
UGR
UGR<19

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Zip track (adapter included)

Dimensions

Length (mm) L
135
Width (mm) W
39
Height (mm) H
135
Weight (kg) gross/net
0.3 / 0.25

Packaging

Packaging dimensions (mm)
135 x 39 x 135
