Zip Zoom 1-Circuit
Zip Zoom Brushed steel 280lm 3000K Ra>90 Trailing edge
- Article code
- 3517
- EAN
- 7021980035175
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 47 lm/W
- Lumen
- 280lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B50>
- Mounting
- Surface, Indoor
Tools
Downloads
Specification sheet
3517
pdf
(Opens in new tab)
Mounting instruction
Zip Zoom Mounting instructions
pdf
(Opens in new tab)
CE Declaration
Zip Zoom
pdf
(Opens in new tab)
Relux file (rolf)
7021980035175_Zip_Zoom_Brushed_steel_280lm_3000K_Ra_90_Trailing_edge_dimming
rolf
Eulumdat file (ldt)
7021980035175_Zip Zoom Brushed Steel 6W 3000K Ra90-45879
ldt
Dialux file (uld)
7021980035175_Zip Zoom Brushed Steel 6W 3000K Ra90
uld
Revit file - Generic
Zip Zoom - Generic
rfa
Revit file - Ceiling Based
Zip Zoom - ceiling based
rfa
Electrical
- System wattage
- 6W
- Voltage
- 220-240V
Light technic
- Type of light source
- LED
- Socket
- GU10
- Light source included
- Yes
- Luminous flux
- 280lm
- Efficacy
- 47 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- MacAdams factor
- SDCM: 2
- Lifetime
- L70/B50>50,000

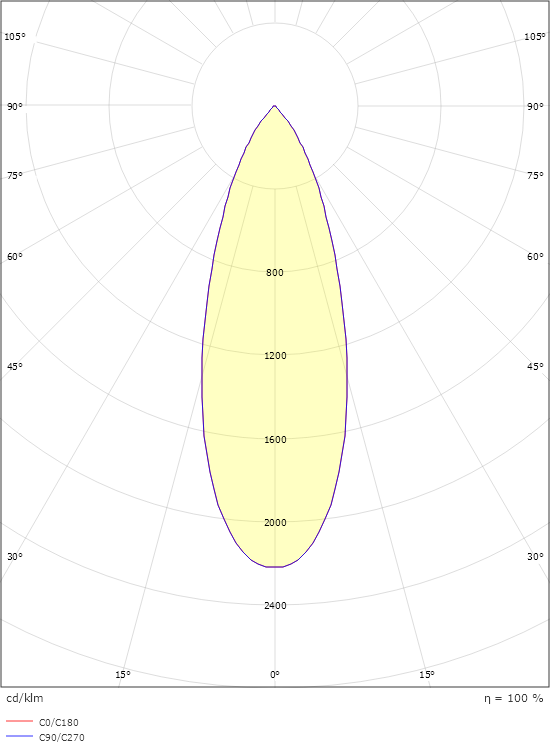

- Light distribution
- Direct
- Beam angle
- 36°
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- G
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium, PA66 frontring, steel arm.
- Colour
- Brushed steel
Mounting/Connection
- Mounting
- Surface, Indoor
- Connection
- Zip track (adapter included)

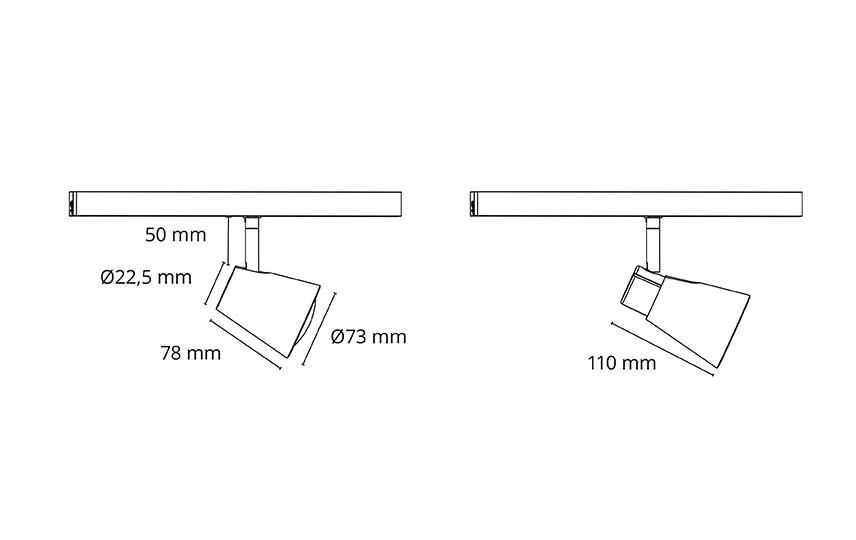

Dimensions
- Length (mm) L
- 78
- Width (mm) W
- 73
- Height (mm) H
- 128
- Distance to flammable materials
- 50mm
- Weight (kg) gross/net
- 0.338 / 0.338
Packaging
- Packaging dimensions (mm)
- 135 x 85 x 110
