Zip Zoom 1-Circuit

Zip Zoom White DimToWarm 300lm 2000-2800K Ra>90 Trailing edge

Article code
3527
EAN
7021980035274
Replaces
912834
Back to articlelist

Overview

Efficacy
50 lm/W
Lumen
300lm
IP Class
IP20
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dimtowarm
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 3527 Mounting instruction Zip Zoom Mounting instructions CE Declaration Zip Zoom Relux file (rolf) 7021980035274_Zip_Zoom_White_DimToWarm_300lm_2000-2800K_Ra_90_Trailing_edge_dimming Eulumdat file (ldt) 7021980035274_Zip Zoom DimToWarm Matt White 6W 2000-2800K Ra90-44511 Dialux file (uld) 7021980035274_Zip Zoom DimToWarm Matt White 6W 2000-2800K Ra90 Revit file - Generic Zip Zoom - Generic Revit file - Ceiling Based Zip Zoom - ceiling based

How to specify

Text copied to clipboard

Zip Zoom White DimToWarm 300lm 2000-2800K Ra>90 Trailing edge, Article code: 3527, EAN: 7021980035274, IP20, Electrical: System wattage: 6W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 300lm, Efficacy: 50 lm/W, Colour temperature: 2000-2800K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Beam angle: 36°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, PA66 frontring, steel arm., Colour: Matte white (RAL 9003), Mounting/Connection: Mounting: Surface, Indoor, Connection: Zip track (adapter included), Dimensions: Length (mm) L: 78, Width (mm) W: 73, Height (mm) H: 128, Weight (kg) gross/net: 0.406 / 0.338, Packaging: Packaging dimensions (mm): 135 x 85 x 110

Electrical

System wattage
6W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
300lm
Efficacy
50 lm/W
Colour temperature
2000-2800K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

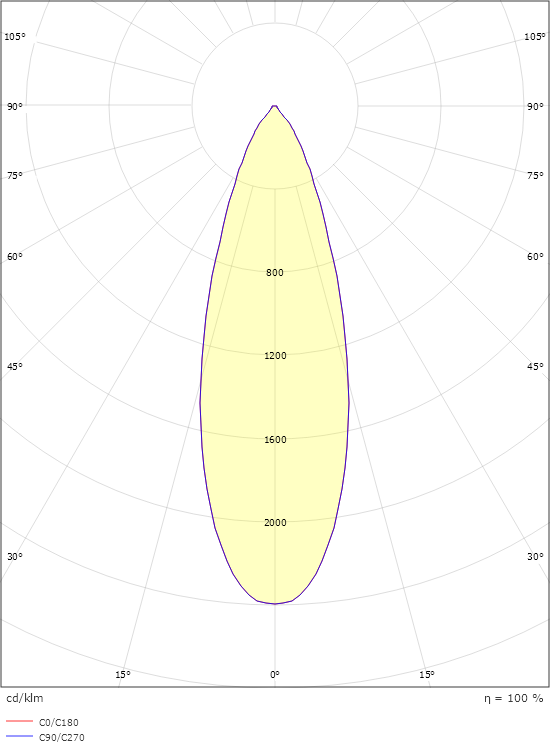

Light distribution
Direct
Beam angle
36°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium, PA66 frontring, steel arm.
Colour
Matte white (RAL 9003)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Zip track (adapter included)

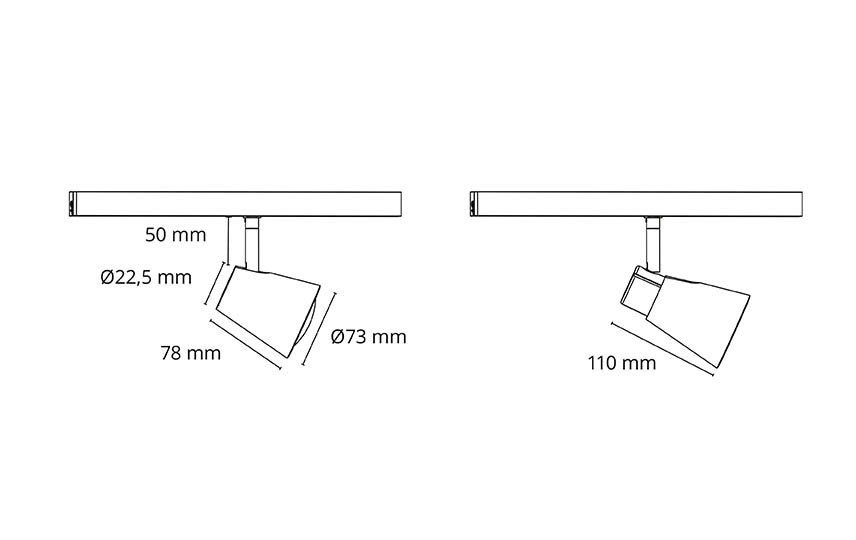

Dimensions

Length (mm) L
78
Width (mm) W
73
Height (mm) H
128
Weight (kg) gross/net
0.406 / 0.338

Packaging

Packaging dimensions (mm)
135 x 85 x 110
