Sector

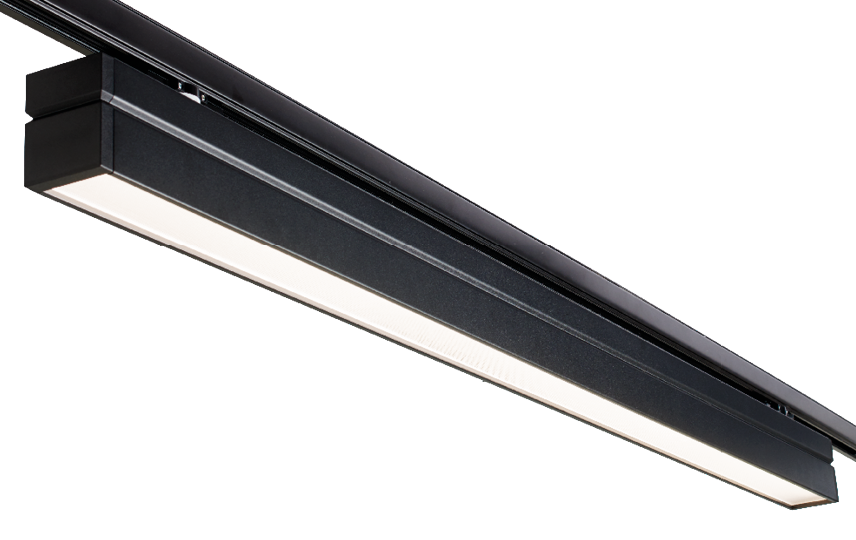

Sector Black 6100lm 4000K Ra>80 On/Off
- SG code
- 8246094487
- EAN
- 5703821177443
Overview
- Efficacy
- 92 lm/W
- Lumen
- 6100lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B20>
- Mounting
- Indoor
Tools
Downloads
Specification sheet
8246094487
pdf
(Opens in new tab)
Mounting instruction
Sector 3T On Off_User manual
pdf
(Opens in new tab)
EPD
NEPD-5090-4424_Sector
pdf
(Opens in new tab)
CE Declaration
Sector
pdf
(Opens in new tab)
Relux file (rolf)
5703821177443_Sector_Black_6100lm_4000K_Ra_80_On_Off
rolf
Eulumdat file (ldt)
5703821177443_SectorBlack66WLED4000KRa80CDLensC-37692
ldt
Dialux file (uld)
5703821177443_SectorBlack66WLED4000KRa80CDLensC
uld
Revit file - Generic
Sector - generic
rfa
Revit file - Face Based
Sector - face based
rfa
Electrical
- System wattage
- 66W
- Max. luminaires per circuit breaker
- B10: 16, B16: 26, C10: 27, C16: 44
- Leakage current (mA)
- 0.54
Light technic
- Type of light source
- LED
- Luminous flux
- 6100lm
- Efficacy
- 92 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B20>50,000
- Control gear, h/max failure %
- 100000/10

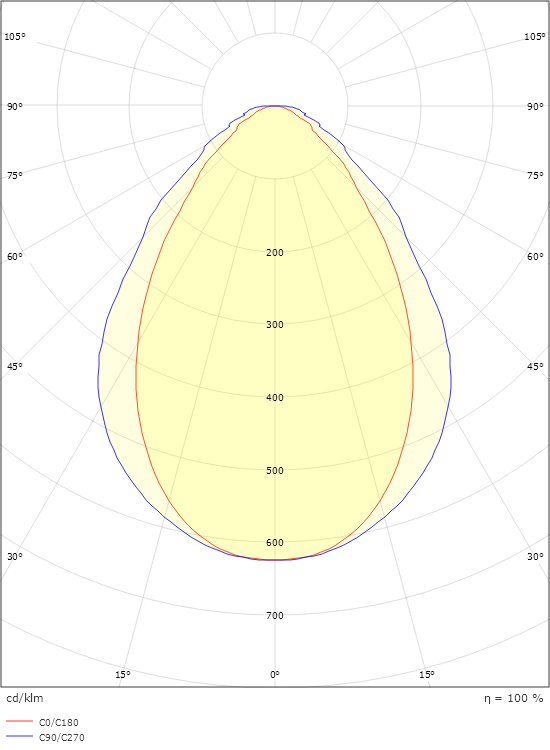

- Light distribution
- Direct
- Optic
- Lens C, prismatic Conical

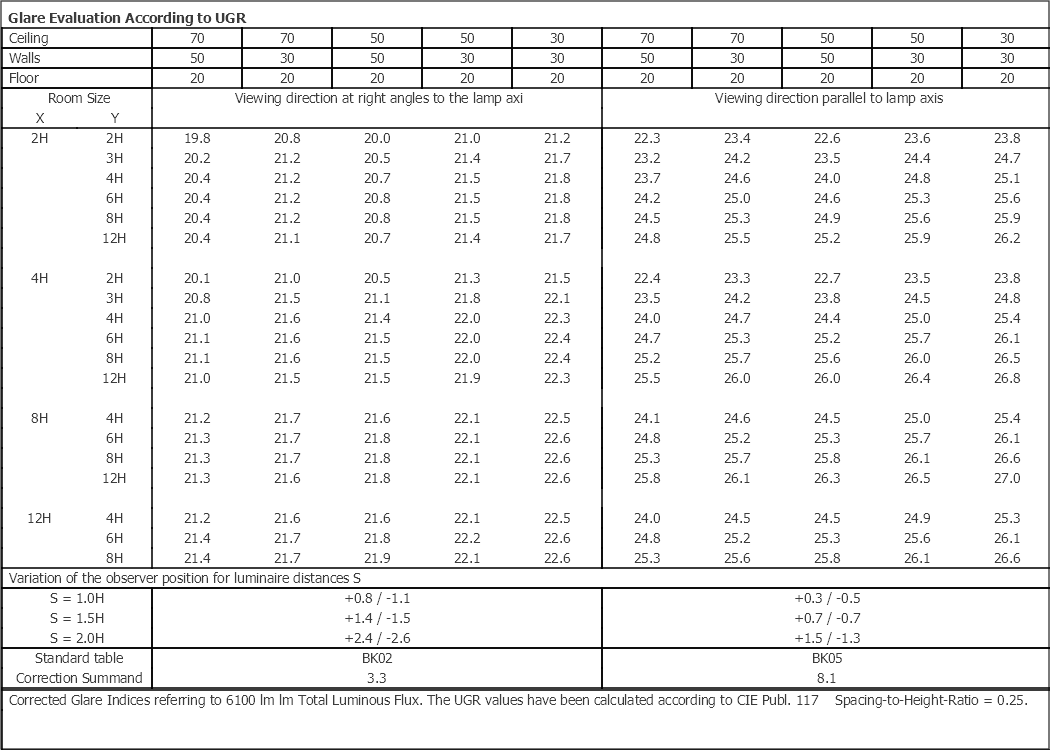

- UGR
- UGR<28
- Photobiological safety
- RG 0
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel, end caps in ABS
- Colour
- Black
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Indoor

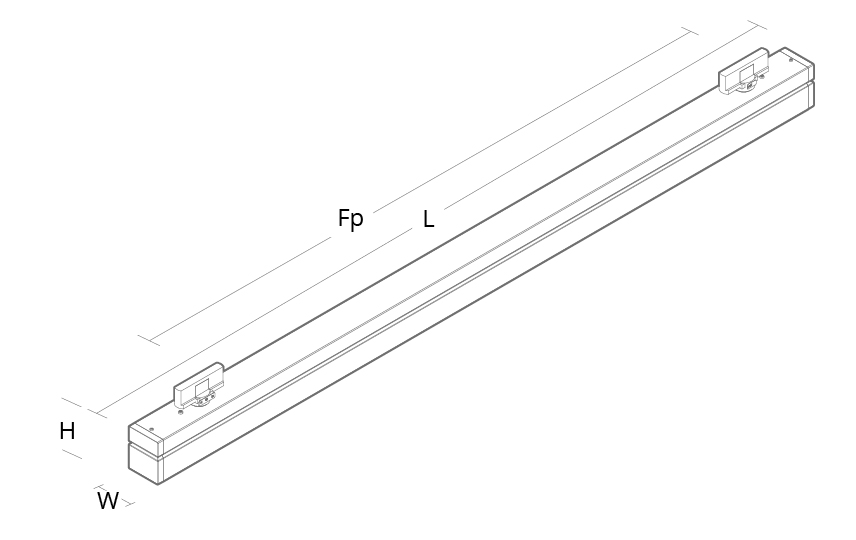

Dimensions
- Length (mm) L
- 1444
- Width (mm) W
- 64
- Height (mm) H
- 102
- Weight (kg) gross/net
- 4.3 / 4.1
Packaging
- Packaging dimensions (mm)
- 1531 x 68 x 146
