Vision

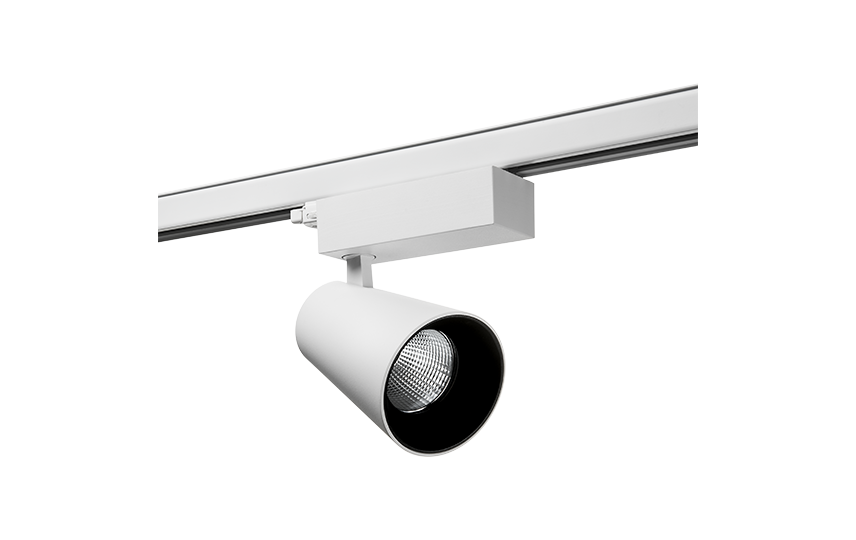

Vision White 2820lm 4000K Ra>90 On/Off

Article code
312483
EAN
7021983124838
Back to articlelist

Overview

Efficacy
94 lm/W
Lumen
2820lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 312483 Eulumdat file (ldt) 7021983124838_VisionMattWhite30WLED4000KRa9050D-37314 Dialux file (uld) 7021983124838_VisionMattWhite30WLED4000KRa9050D

See more

Relux file (rolf) 7021983124838_Vision_White_2820lm_4000K_Ra_90_On_Off Revit file - Generic Vision - Generic Revit file - Ceiling Based Vision - ceiling based Mounting instruction Vision Mounting instructions CE Declaration Vision

How to specify

Text copied to clipboard

Vision White 2820lm 4000K Ra>90 On/Off, Article code: 312483, EAN: 7021983124838, IP20, Electrical: System wattage: 30W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 2820lm, Efficacy: 94 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L80/B20>50,000, Light distribution: Direct, UGR: UGR<16, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IP Class: IP20, Materials and finish: Housing: Aluminium, Colour: Matte white (RAL 9003), Optics: Glass, Mounting/Connection: Mounting: Surface, Indoor, Dimensions: Length (mm) L: 223, Width (mm) W: 110, Height (mm) H: 238, Weight (kg) gross/net: 1.523 / 1.232, Packaging: Packaging dimensions (mm): 245 x 225 x 140

Electrical

System wattage
30W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
2820lm
Efficacy
94 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L80/B20>50,000

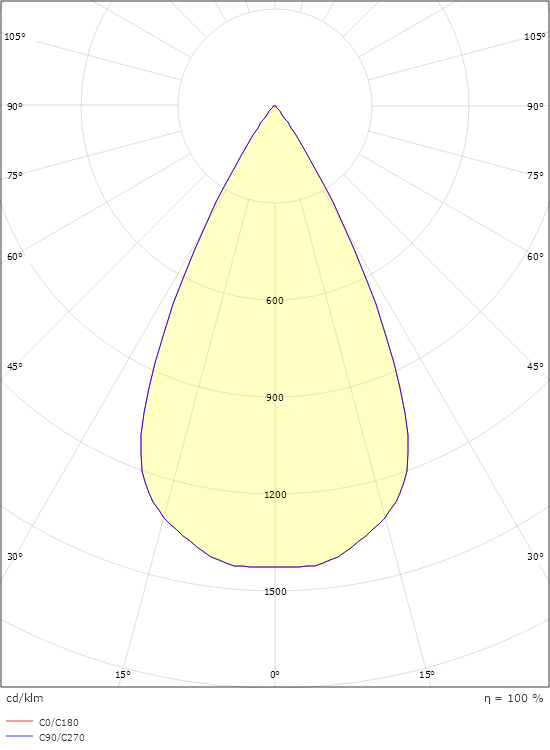

Light distribution
Direct
UGR
UGR<16

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IP Class
IP20

Materials and finish

Housing
Aluminium
Colour
Matte white (RAL 9003)
Optics
Glass

Mounting/Connection

Mounting
Surface, Indoor

Dimensions

Length (mm) L
223
Width (mm) W
110
Height (mm) H
238
Weight (kg) gross/net
1.523 / 1.232

Packaging

Packaging dimensions (mm)
245 x 225 x 140
