Zip Pro 3-Circuit
Zip Pro 3-Circuit Black 40° 3370lm 3000K Ra>90 On/Off
- Article code
- 320736
- EAN
- 7021983207364
- Replaces
- 3491
Overview
- Efficacy
- 84 lm/W
- Lumen
- 3370lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Indoor
Electrical
- System wattage
- 40W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 11, B16: 19, C10: 19, C16: 31
Light technic
- Type of light source
- LED
- Luminous flux
- 3370lm
- Efficacy
- 84 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>100,000
- Lifetime at max ambient temperature
- L90/B10>

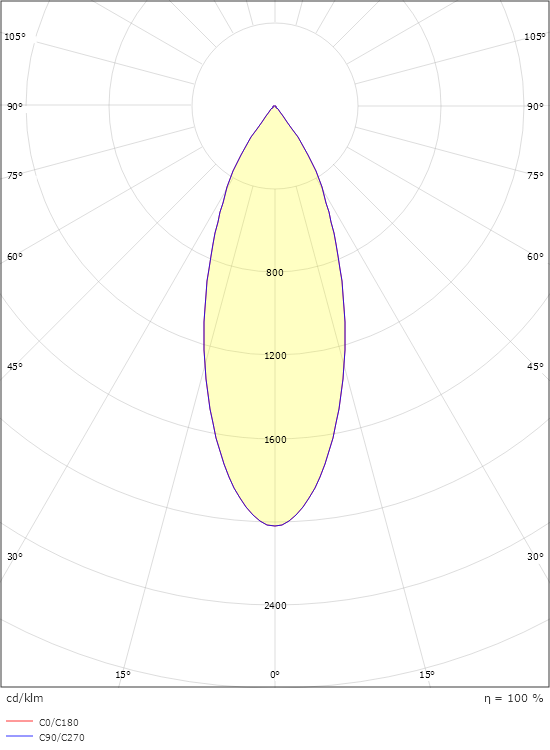

- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 40°

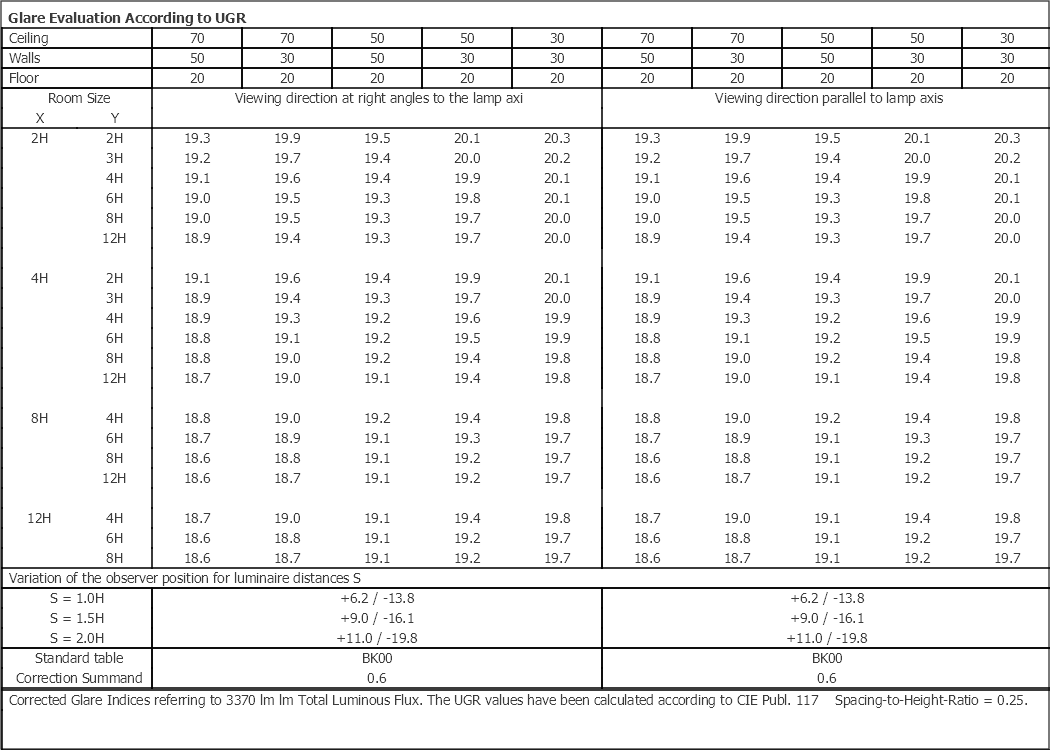

- UGR
- UGR<22
- Photobiological safety
- RG 0
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Surface, Indoor
- Connection
- ShopLine track (adapter included)
Dimensions
- Length (mm) L
- 218
- Width (mm) W
- 100
- Height (mm) H
- 148
- Diameter (mm) D
- 100
- Weight (kg) gross/net
- 1.345 / 1.158
Packaging
- Packaging dimensions (mm)
- 253 x 250 x 110
