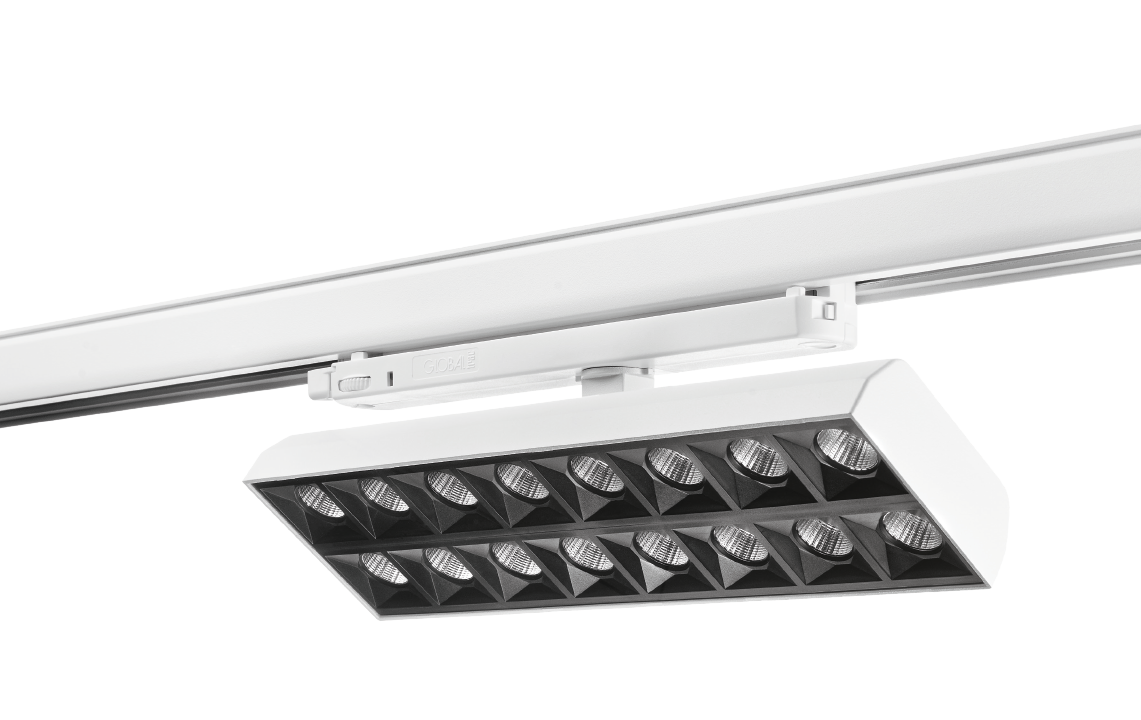

Inspire 300 DALI
Inspire 300 3-Circuit White 3500lm 4000K Ra>90 DALI-2
- Article code
- 212463
- EAN
- 7021982124631
Overview
- Efficacy
- 103 lm/W
- Lumen
- 3500lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L80/B10>
- Mounting
- Surface, Indoor
Tools
Downloads
Specification sheet
212463
pdf
(Opens in new tab)
Mounting instruction
Inspire 300 3T, Dali _User Manual
pdf
(Opens in new tab)
EPD
NEPD-12117-12097_Inspire-300-3-T-Dali
pdf
(Opens in new tab)
CE Declaration
Inspire 300 DALI
pdf
(Opens in new tab)
Relux file (rolf)
7021982124631_Inspire_300_3-T_White_3500lm_4000K_Ra_90_DALI-2
rolf
Eulumdat file (ldt)
7021982124631_Inspire 300 3-T White 3500lm 4000K Ra90 DALI-2
ldt
Dialux file (uld)
7021982124631_Inspire 300 3-T White 3500lm 4000K Ra90 DALI-2
uld
Revit file - Generic
Inspire 300 DALI - generic
rfa
Revit file - Face Based
Inspire 300 Dali - face based
rfa
Electrical
- System wattage
- 34W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
Light technic
- Type of light source
- LED
- Luminous flux
- 3500lm
- Efficacy
- 103 lm/W
- Constant lumen output option
- Yes
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>50,000
- Maximum ambient temperature
- 35°C
- Optic
- Cubic Optic Black
- Visible flicker (PstLM)
- 0,01
- Stroboscopic flicker (SVM)
- 0,01
- Photobiological safety
- RG 1
Control/Dimming
- Type
- DALI-2
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Optics
- Polycarbonat (PC)
Mounting/Connection
- Mounting
- Surface, Indoor
- Connection
- ShopLine DALI track (adapter included)
Dimensions
- Length (mm) L
- 285
- Width (mm) W
- 82
- Height (mm) H
- 75
- Weight (kg) gross/net
- 0.83 / 0.7
Packaging
- Packaging dimensions (mm)
- 290 x 87 x 80
