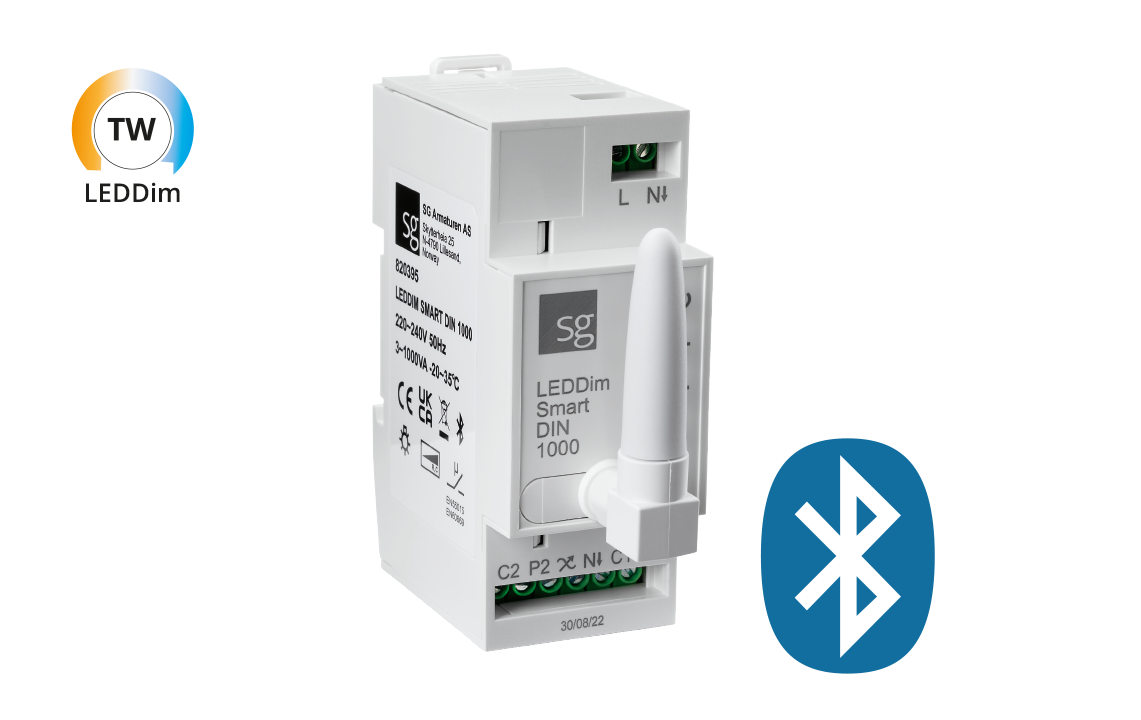

LEDDim Smart DIN 1000

LEDDim Smart DIN 1000 1000VA

Article code
820395
EAN
7021988203958
Back to articlelist

Overview

Wattage
1000VA
IP Class
IP20
    5 years Warranty
  • ip20
  • ce

Tools

Downloads

Specification sheet 820395 Mounting instruction LEDDim Smart DIN 1000_User Manual CE Declaration LEDDim Smart DIN 1000

How to specify

Text copied to clipboard

LEDDim Smart DIN 1000 1000VA, Article code: 820395, EAN: 7021988203958, IP20, Electrical: Wattage: 1000VA, Voltage: 220-240V, Frequency (Hz): 50Hz (60Hz upon request), Overvoltage protection: Yes, Overload protection: Yes, Control/Dimming: Type: Trailing edge / TW Leddim / On/Off, Protection: IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Dimensions: Width (mm) W: 36, Height (mm) H: 90, Depth (D): 68, Weight (kg) gross/net: 0.185 / 0.175, Packaging: Packaging dimensions (mm): 98 x 87 x 46

Electrical

Wattage
1000VA
Voltage
220-240V
Frequency (Hz)
50Hz (60Hz upon request)
Overvoltage protection
Yes
Overload protection
Yes

Control/Dimming

Type
Trailing edge / TW Leddim / On/Off

Protection

IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)

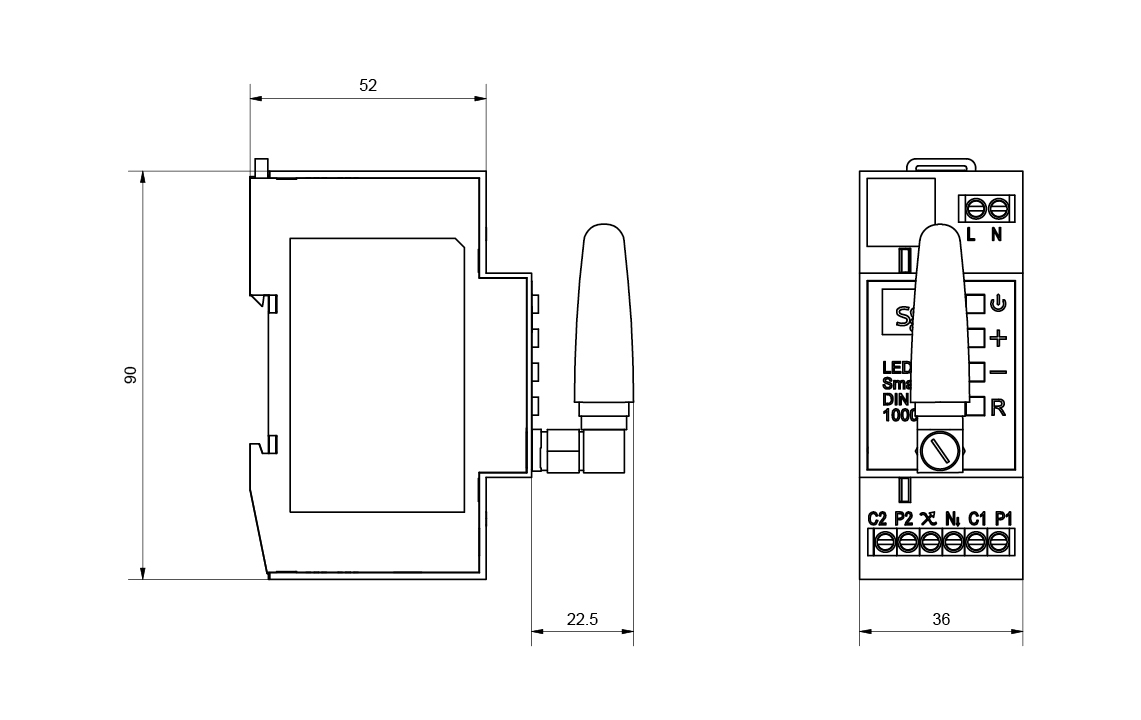

Dimensions

Width (mm) W
36
Height (mm) H
90
Depth (D)
68
Weight (kg) gross/net
0.185 / 0.175

Packaging

Packaging dimensions (mm)
98 x 87 x 46
