Disc 480 TW

Disc 480 TW Black 3470lm (@6500K) 2700-6500K Ra>80 TW LEDDim

Article code
606027
EAN
7021986060270
Back to articlelist

Overview

Efficacy
96 lm/W
Lumen
3470lm (@6500K)
IP Class
IP20
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik10
  • ip20
  • klasse_2
  • tw
  • ce
  • enec

Tools

Downloads

Specification sheet 606027 Eulumdat file (ldt) 7021986060270_Disc 480 TW Black 3030lm (@2700K) 2700-6500K Ra80 Tunable White LEDDim Eulumdat file (ldt) 7021986060270_Disc 480 TW Black 3470lm (@6500K) 2700-6500K Ra80 Tunable White LEDDim

See more

Dialux file (uld) 7021986060270_Disc 480 TW Black 3030lm (@2700K) 2700-6500K Ra80 Tunable White LEDDim Dialux file (uld) 7021986060270_Disc 480 TW Black 3470lm (@6500K) 2700-6500K Ra80 Tunable White LEDDim Relux file (rolf) 7021986060270_Disc_480_TW_Black_3030lm_(@2700K)_2700-6500K_Ra80_Tunable_White_LEDDim Relux file (rolf) 7021986060270_Disc_480_TW_Black_3470lm_(@6500K)_2700-6500K_Ra80_Tunable_White_LEDDim ENEC Certificate DISC 480 TW Revit file - Generic Disc 480 - generic Revit file - Face Based Disc 480 - face based Mounting instruction Disc 480 TW LEDDim_User Manuals CE Declaration Disc 480 TW

How to specify

Text copied to clipboard

Disc 480 TW Black 3470lm (@6500K) 2700-6500K Ra>80 TW LEDDim, Article code: 606027, EAN: 7021986060270, IP20, IK10, Electrical: System wattage: 36W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 21, B16: 33, C10: 21, C16: 33, Light technic: Type of light source: LED, Luminous flux: 3470lm (@6500K), Efficacy: 96 lm/W, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 85°, UGR: UGR<22, Control/Dimming: Type: TW LEDDim, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 55, Diameter (mm) D: 470, Weight (kg) gross/net: 4.845 / 4.433, Packaging: Packaging dimensions (mm): 490 x 485 x 60

Electrical

System wattage
36W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 21, B16: 33, C10: 21, C16: 33

Light technic

Type of light source
LED
Luminous flux
3470lm (@6500K)
Efficacy
96 lm/W
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

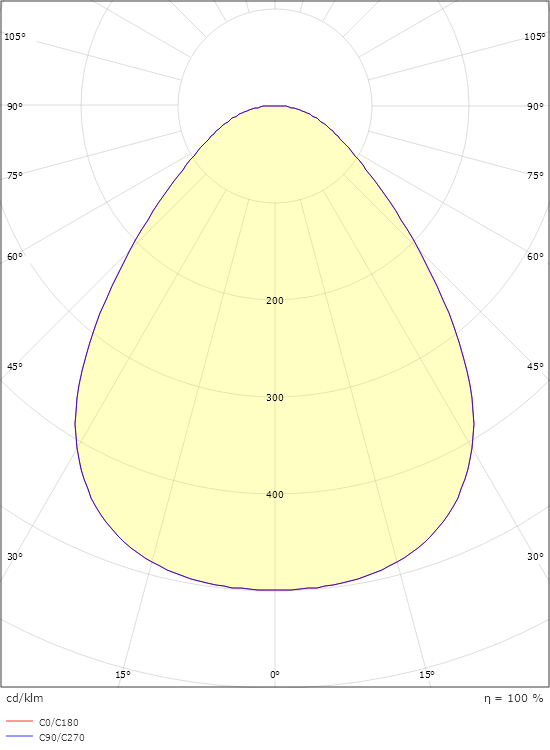

Light distribution
Direct
Optic
Opalprism
Beam angle
85°
UGR
UGR<22

Control/Dimming

Type
TW LEDDim

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
55
Diameter (mm) D
470
Weight (kg) gross/net
4.845 / 4.433

Packaging

Packaging dimensions (mm)
490 x 485 x 60
