EcoLine Office TW

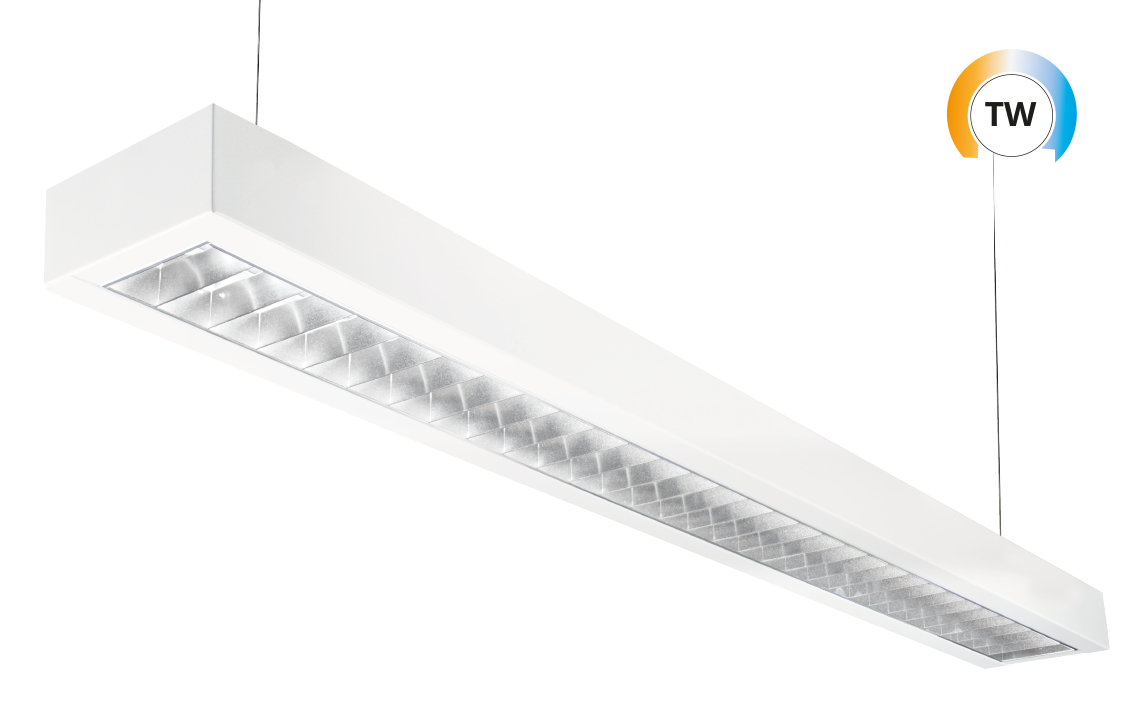

EcoLine Office TW 1200 White 4600lm 2700-6500K Ra>80 TW DALI Type 8

Article code
8246091985
EAN
5703821173599
Back to articlelist

Overview

Efficacy
112 lm/W
Lumen
4600lm
IP Class
IP20
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L90/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • tw
  • ce

Tools

Downloads

Specification sheet 8246091985 Mounting instruction Box Lean TW Mounting Instruction Relux file (rolf) 5703821173599_EcoLine_Office_TW_1200_White_4600lm_2700-6500K_Ra_80_Tunable_White_DALI_Type_8 Eulumdat file (ldt) 5703821173599_EcoLineOfficeTW1200DI41W2700-6500KRa80CD-DA8DP-SM-19539 Dialux file (uld) 5703821173599_EcoLineOfficeTW1200DI41W2700-6500KRa80CD-DA8DP-SM Revit file - Generic Box Lean DI - Generic Revit file - Ceiling Based Box Lean DI - Ceiling based

How to specify

Text copied to clipboard

EcoLine Office TW 1200 White 4600lm 2700-6500K Ra>80 TW DALI Type 8, Article code: 8246091985, EAN: 5703821173599, IP20, Electrical: System wattage: 41W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 11, B16: 17, C10: 18, C16: 29, Leakage current (mA): 0.30, Light technic: Type of light source: LED, Luminous flux: 4600lm, Efficacy: 112 lm/W, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Light distribution: Direct/Indirect 60/40%, Optic: Double parabolic louvre, satin matt, Control/Dimming: Type: TW DALI Type 8, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (Pure white, 25% gloss), Optics: Aluminium, Mounting/Connection: Mounting: Suspended, Indoor, Module: 1200, Wire set: 2x2m wire kit w/loop M13 w/2 brackets, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1200, Width (mm) W: 142, Height (mm) H: 81, Weight (kg) gross/net: 6.2 / 6, Packaging: Packaging dimensions (mm): 1255 x 146 x 95

Electrical

System wattage
41W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 11, B16: 17, C10: 18, C16: 29
Leakage current (mA)
0.30

Light technic

Type of light source
LED
Luminous flux
4600lm
Efficacy
112 lm/W
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000

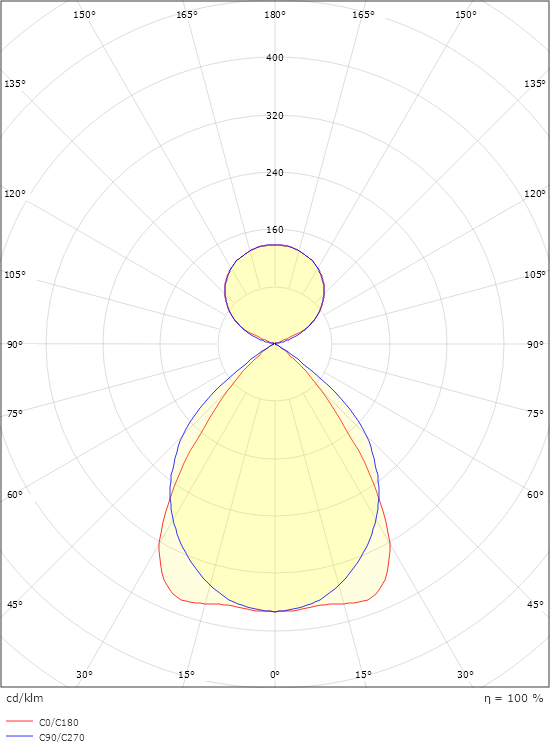

Light distribution
Direct/Indirect 60/40%
Optic
Double parabolic louvre, satin matt

Control/Dimming

Type
TW DALI Type 8

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (Pure white, 25% gloss)
Optics
Aluminium

Mounting/Connection

Mounting
Suspended, Indoor
Module
1200
Wire set
2x2m wire kit w/loop M13 w/2 brackets
Connection
Screwless terminal block

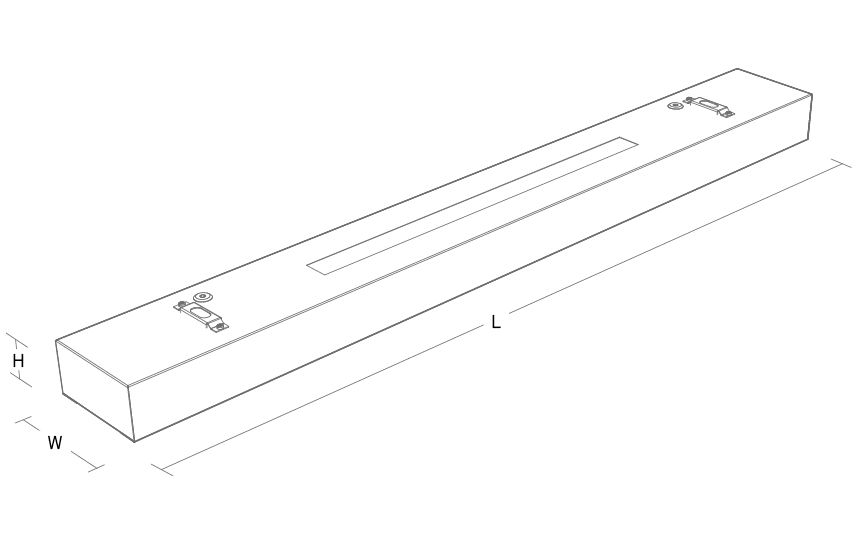

Dimensions

Length (mm) L
1200
Width (mm) W
142
Height (mm) H
81
Weight (kg) gross/net
6.2 / 6

Packaging

Packaging dimensions (mm)
1255 x 146 x 95
