Inspire R TW

Inspire R Black 300 970lm (@4000K) 2000-4000K Ra>90 TW DALI Type 8

Article code
212446
EAN
7021982124464
Back to articlelist

Overview

Efficacy
57 lm/W
Lumen
970lm (@4000K)
IP Class
IP20
Colour temperature
2000-4000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
  • indoor
  • el
  • ip20
  • klasse_2
  • selv
  • tw
  • ce

Tools

Downloads

Specification sheet 212446 Mounting instruction Inspire R300 TW Dali_User Manual EPD NEPD-11313-11269_Inspire-R-300-TW-Dali CE Declaration Inspire R TW Relux file (rolf) 7021982124464_Inspire_R_Black_300_630lm_(@2000K)_2000-4000K_Ra90_Tunable_White_DALI_Type_8 Relux file (rolf) 7021982124464_Inspire_R_Black_300_970lm_(@4000K)_2000-4000K_Ra90_Tunable_White_DALI_Type_8 Eulumdat file (ldt) 7021982124464_Inspire R Black 300 630lm (@2000K) 2000-4000K Ra90 Tunable White DALI Type 8 Eulumdat file (ldt) 7021982124464_Inspire R Black 300 970lm (@4000K) 2000-4000K Ra90 Tunable White DALI Type 8 Dialux file (uld) 7021982124464_Inspire R Black 300 630lm (@2000K) 2000-4000K Ra90 Tunable White DALI Type 8 Dialux file (uld) 7021982124464_Inspire R Black 300 970lm (@4000K) 2000-4000K Ra90 Tunable White DALI Type 8 Revit file - Generic Inspire R 300 TW - generic Revit file - Ceiling Based Inspire R 300 TW - ceiling based

How to specify

Text copied to clipboard

Inspire R Black 300 970lm (@4000K) 2000-4000K Ra>90 TW DALI Type 8, Article code: 212446, EAN: 7021982124464, IP20, Electrical: System wattage: 17W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 22, B16: 36, C10: 37, C16: 61, Light technic: Type of light source: LED, Luminous flux: 970lm (@4000K), Efficacy: 57 lm/W, Colour temperature: 2000-4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Lens, Beam angle: 55°, Photobiological safety: RG 1, Control/Dimming: Type: TW DALI Type 8, Protection: Luminaire class: Class II SELV, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Mounting/Connection: Mounting: Recessed, Indoor, Module: Recessed, Connection: 5 pol Linect / screwless terminal block, Dimensions: Length (mm) L: 303, Width (mm) W: 62, Height (mm) H: 40, Weight (kg) gross/net: 0.78 / 0.45, Packaging: Packaging dimensions (mm): 317 x 135 x 50

Electrical

System wattage
17W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 22, B16: 36, C10: 37, C16: 61

Light technic

Type of light source
LED
Luminous flux
970lm (@4000K)
Efficacy
57 lm/W
Colour temperature
2000-4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

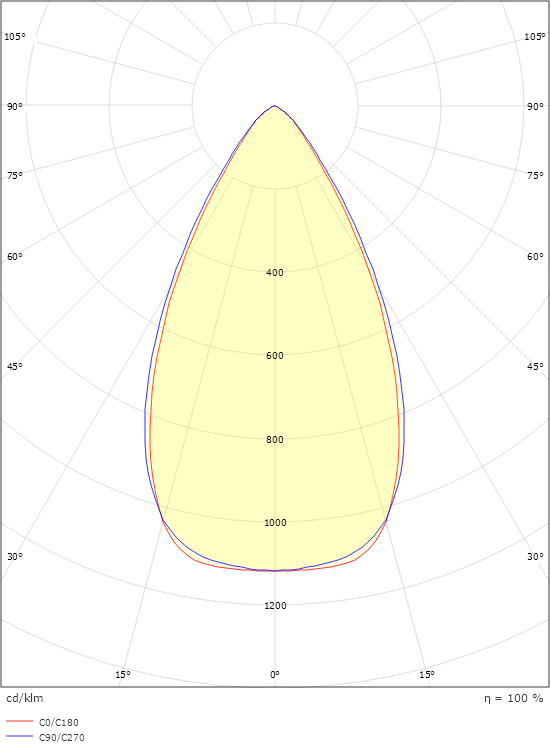

Light distribution
Direct
Optic
Lens
Beam angle
55°
Photobiological safety
RG 1

Control/Dimming

Type
TW DALI Type 8

Protection

Luminaire class
Class II SELV
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)

Mounting/Connection

Mounting
Recessed, Indoor
Module
Recessed
Connection
5 pol Linect / screwless terminal block

Dimensions

Length (mm) L
303
Width (mm) W
62
Height (mm) H
40
Weight (kg) gross/net
0.78 / 0.45

Packaging

Packaging dimensions (mm)
317 x 135 x 50
