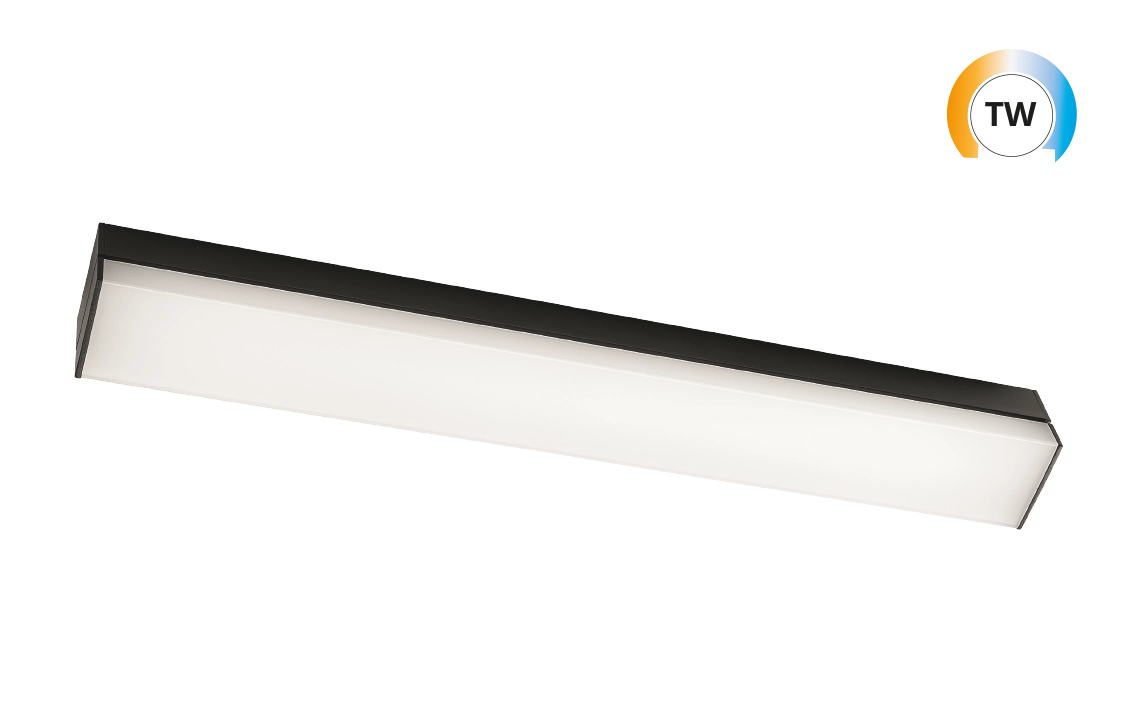

Prelude Square TW

Prelude Square Black 1370lm 2000-4000K Ra>80 TW LEDDim

Article code
111395
EAN
7021981113957
Back to articlelist

Overview

Efficacy
114 lm/W
Lumen
1370lm
IP Class
IP44 (mounted horizontally) / IP40 (mounted vertically)
Colour temperature
2000-4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B50>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik05
  • ip40
  • ip44
  • klasse_2
  • tw
  • ce

Tools

Downloads

Specification sheet 111395 Revit file - Generic Prelude Square TW - generic Revit file - Face Based Prelude Square TW - face based

See more

Eulumdat file (ldt) 7021981113957_Prelude Square Black 1370lm (@4000K) 2000-4000K Ra80 Tunable White LEDDim Eulumdat file (ldt) 7021981113957_Prelude Square Black 960lm (@2000K) 2000-4000K Ra80 Tunable White LEDDim Dialux file (uld) 7021981113957_Prelude Square Black 1370lm (@4000K) 2000-4000K Ra80 Tunable White LEDDim Dialux file (uld) 7021981113957_Prelude Square Black 960lm (@2000K) 2000-4000K Ra80 Tunable White LEDDim Relux file (rolf) 7021981113957_Prelude_Square_Black_1370lm_(@4000K)_2000-4000K_Ra80_Tunable_White_LEDDim Relux file (rolf) 7021981113957_Prelude_Square_Black_960lm_(@2000K)_2000-4000K_Ra80_Tunable_White_LEDDim Mounting instruction Prelude Square TW No Outlet_User Manual CE Declaration Prelude Square TW

How to specify

Text copied to clipboard

Prelude Square Black 1370lm 2000-4000K Ra>80 TW LEDDim, Article code: 111395, EAN: 7021981113957, IP44 (mounted horizontally) / IP40 (mounted vertically), IK05, Electrical: System wattage: 12W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 74, B16: 118, C10: 74, C16: 118, Light technic: Type of light source: LED, Luminous flux: 1370lm, Efficacy: 114 lm/W, Colour temperature: 2000-4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B50>100,000, Light distribution: Direct, Optic: Acrylic diffuser, Photobiological safety: RG 0, Control/Dimming: Type: TW LEDDim, Protection: Luminaire class: Class II, IK Class: IK05, IP Class: IP44 (mounted horizontally) / IP40 (mounted vertically), Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 519, Height (mm) H: 59, Depth (D): 62, Weight (kg) gross/net: 0.902 / 0.803, Packaging: Packaging dimensions (mm): 528 x 65 x 65

Electrical

System wattage
12W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 74, B16: 118, C10: 74, C16: 118

Light technic

Type of light source
LED
Luminous flux
1370lm
Efficacy
114 lm/W
Colour temperature
2000-4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B50>100,000

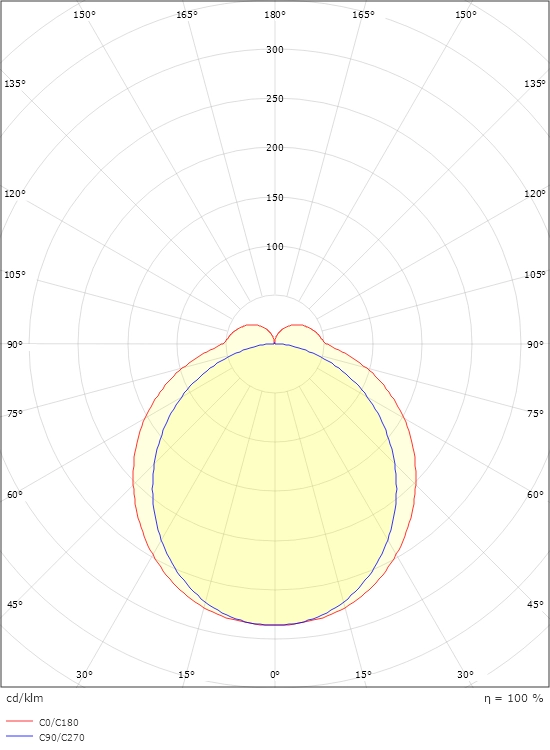

Light distribution
Direct
Optic
Acrylic diffuser
Photobiological safety
RG 0

Control/Dimming

Type
TW LEDDim

Protection

Luminaire class
Class II
IK Class
IK05
IP Class
IP44 (mounted horizontally) / IP40 (mounted vertically)

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
519
Height (mm) H
59
Depth (D)
62
Weight (kg) gross/net
0.902 / 0.803

Packaging

Packaging dimensions (mm)
528 x 65 x 65
