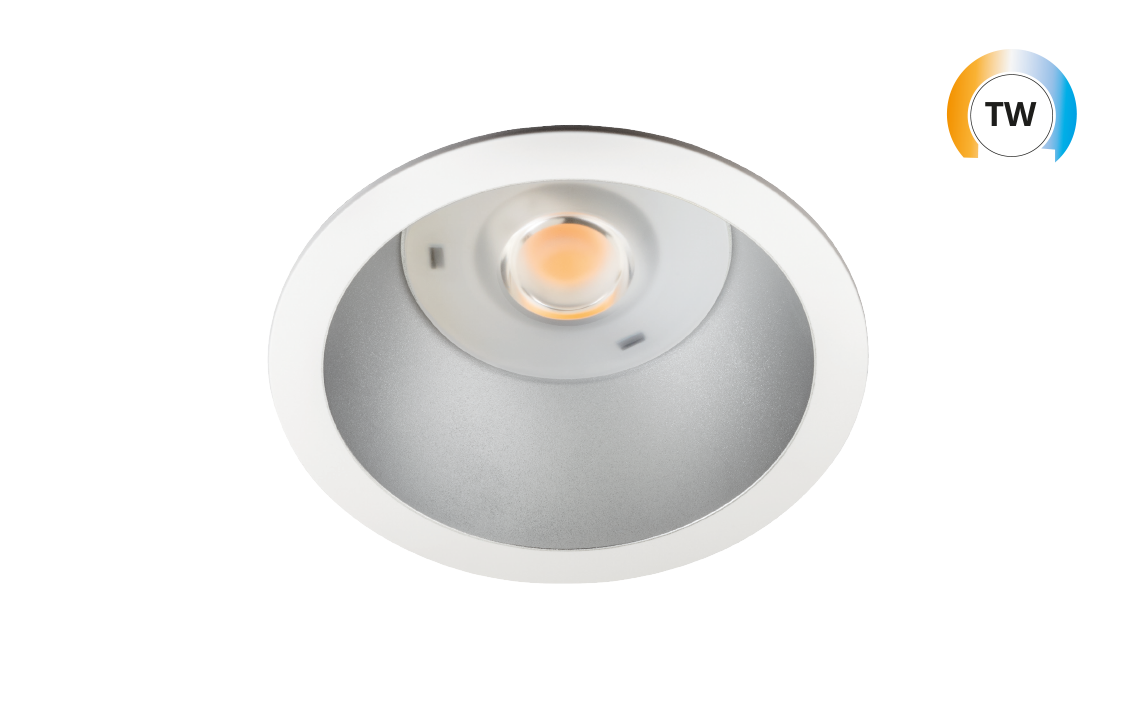

Rax Soft 150 TW

Rax Soft 150 Satin 2700-6500K Ra>80 TW DALI Type 8

Article code
212575
EAN
7021982125751
Replaces
212308
Back to articlelist

Overview

Efficacy
93 lm/W
Lumen
2600lm (@6500K)
IP Class
IP54/IP20
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • ik08
  • ip20ip54
  • klasse_2
  • selv
  • tw
  • ce

Tools

Downloads

Specification sheet 212575 Mounting instruction Rax Soft 150 TW DALI DT8_User Manual EPD NEPD-8874-8530_Rax-Soft-150-TW-Dali CE Declaration Rax Soft 150 TW Relux file (rolf) 7021982125751_Rax_Soft_150_Satin_2350lm_(@2700K)_2700-6500K_Ra80_Tunable_White_DALI_Type_8 Relux file (rolf) 7021982125751_Rax_Soft_150_Satin_2600lm_(@6500K)_2700-6500K_Ra80_Tunable_White_DALI_Type_8 Eulumdat file (ldt) 7021982125751_Rax Soft 150 Satin 2350lm (@2700K) 2700-6500K Ra80 Tunable White DALI Type 8 Eulumdat file (ldt) 7021982125751_Rax Soft 150 Satin 2600lm (@6500K) 2700-6500K Ra80 Tunable White DALI Type 8 Dialux file (uld) 7021982125751_Rax Soft 150 Satin 2350lm (@2700K) 2700-6500K Ra80 Tunable White DALI Type 8 Dialux file (uld) 7021982125751_Rax Soft 150 Satin 2600lm (@6500K) 2700-6500K Ra80 Tunable White DALI Type 8 Revit file - Generic Rax Soft 150 TW - generic Revit file - Ceiling Based Rax Soft 150 TW - ceiling based

How to specify

Text copied to clipboard

Rax Soft 150 Satin 2700-6500K Ra>80 TW DALI Type 8, Article code: 212575, EAN: 7021982125751, IP54/IP20, IK08, Electrical: System wattage: 28W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 22, B16: 36, C10: 37, C16: 61, Light technic: Type of light source: LED, Luminous flux: 2600lm (@6500K), Emergency lumen: 280lm, Efficacy: 93 lm/W, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Satin Matt Reflector, Beam angle: 68°, Photobiological safety: RG 1, Control/Dimming: Type: TW DALI Type 8, Protection: Luminaire class: Class II SELV, IK Class: IK08, IP Class: IP54/IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Flame retardant polycarbonate, Colour: White/Satin mat, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Recessed, Indoor, Connection: 5 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 83, Diameter (mm) D: 166, Cut-out (mm): 150, Ceiling void depth (mm): 80, Weight (kg) gross/net: 1.024 / 0.77, Packaging: Packaging dimensions (mm): 190 x 190 x 95

Electrical

System wattage
28W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 22, B16: 36, C10: 37, C16: 61

Light technic

Type of light source
LED
Luminous flux
2600lm (@6500K)
Emergency lumen
280lm
Efficacy
93 lm/W
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000

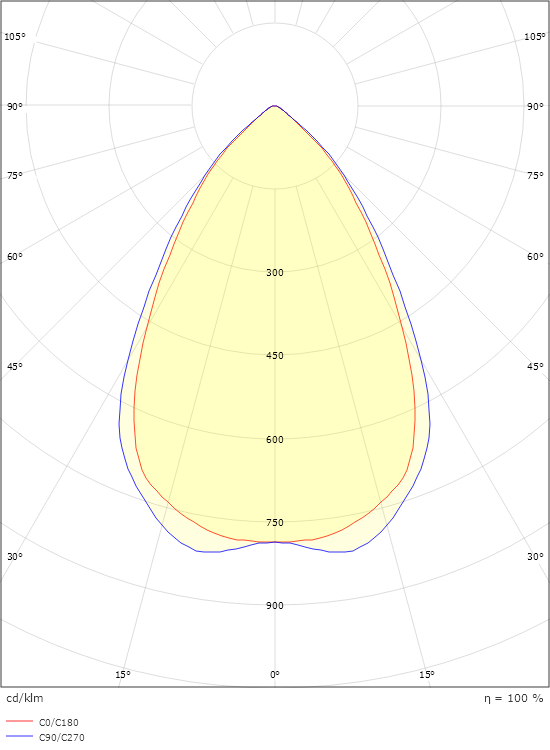

Light distribution
Direct
Optic
Satin Matt Reflector
Beam angle
68°
Photobiological safety
RG 1

Control/Dimming

Type
TW DALI Type 8

Protection

Luminaire class
Class II SELV
IK Class
IK08
IP Class
IP54/IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Flame retardant polycarbonate
Colour
White/Satin mat
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
5 pol Linect / screwless terminal block

Dimensions

Height (mm) H
83
Diameter (mm) D
166
Cut-out (mm)
150
Ceiling void depth (mm)
80
Weight (kg) gross/net
1.024 / 0.77

Packaging

Packaging dimensions (mm)
190 x 190 x 95
