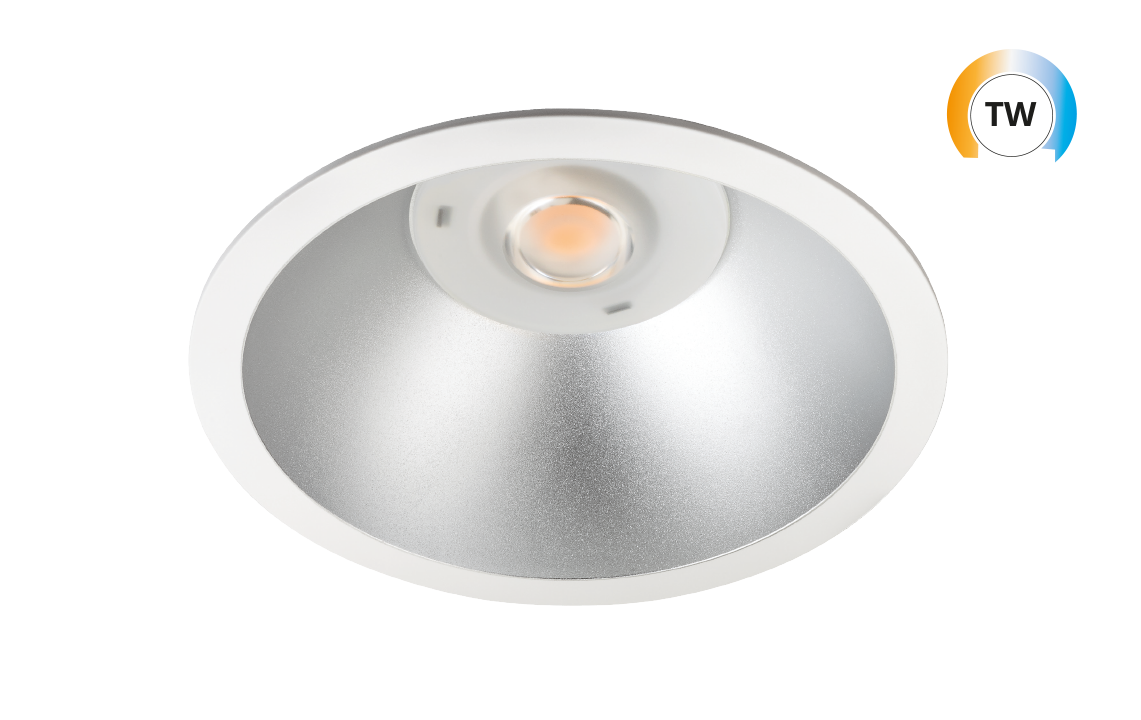

Rax Soft 200 TW

Rax Soft 200 Satin TW LEDDim 2700-6500K Ra>80 TW LEDDim

Article code
212576
EAN
7021982125768
Back to articlelist

Overview

Efficacy
93 lm/W
Lumen
2610lm (@6500K)
IP Class
IP54/IP20
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik08
  • ip20ip54
  • klasse_2
  • selv
  • tw
  • ce

Tools

Downloads

Specification sheet 212576 Mounting instruction Rax Soft 200 TW LEDDim_User Manual EPD NEPD-8873-8531_Rax-Soft-200-TW CE Declaration Rax Soft 200 TW Relux file (rolf) 7021982125768_Rax_Soft_200_Satin_2360lm_(@2700K)_2700-6500K_Ra80_Tunable_White_LEDDim Relux file (rolf) 7021982125768_Rax_Soft_200_Satin_2610lm_(@6500K)_2700-6500K_Ra80_Tunable_White_LEDDim Eulumdat file (ldt) 7021982125768_Rax Soft 200 Satin 2360lm (@2700K) 2700-6500K Ra80 Tunable White LEDDim Eulumdat file (ldt) 7021982125768_Rax Soft 200 Satin 2610lm (@6500K) 2700-6500K Ra80 Tunable White LEDDim Dialux file (uld) 7021982125768_Rax Soft 200 Satin 2360lm (@2700K) 2700-6500K Ra80 Tunable White LEDDim Dialux file (uld) 7021982125768_Rax Soft 200 Satin 2610lm (@6500K) 2700-6500K Ra80 Tunable White LEDDim Revit file - Generic Rax Soft 200 TW - generic Revit file - Ceiling Based Rax Soft 200 TW - ceiling based

How to specify

Text copied to clipboard

Rax Soft 200 Satin TW LEDDim 2700-6500K Ra>80 TW LEDDim, Article code: 212576, EAN: 7021982125768, IP54/IP20, IK08, Electrical: System wattage: 28W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 20, B16: 32, C10: 20, C16: 32, Light technic: Type of light source: LED, Luminous flux: 2610lm (@6500K), Emergency lumen: 280lm, Efficacy: 93 lm/W, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Satin Matt Reflector, Beam angle: 62°, Photobiological safety: RG 1, Control/Dimming: Type: TW LEDDim, Protection: Luminaire class: Class II SELV, IK Class: IK08, IP Class: IP54/IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Flame retardant polycarbonate, Colour: White/Satin mat, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Recessed, Indoor, Connection: 3 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 93, Diameter (mm) D: 216, Cut-out (mm): 200, Ceiling void depth (mm): 90, Weight (kg) gross/net: 1.2 / 1, Packaging: Packaging dimensions (mm): 240 x 240 x 102

Electrical

System wattage
28W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 20, B16: 32, C10: 20, C16: 32

Light technic

Type of light source
LED
Luminous flux
2610lm (@6500K)
Emergency lumen
280lm
Efficacy
93 lm/W
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000

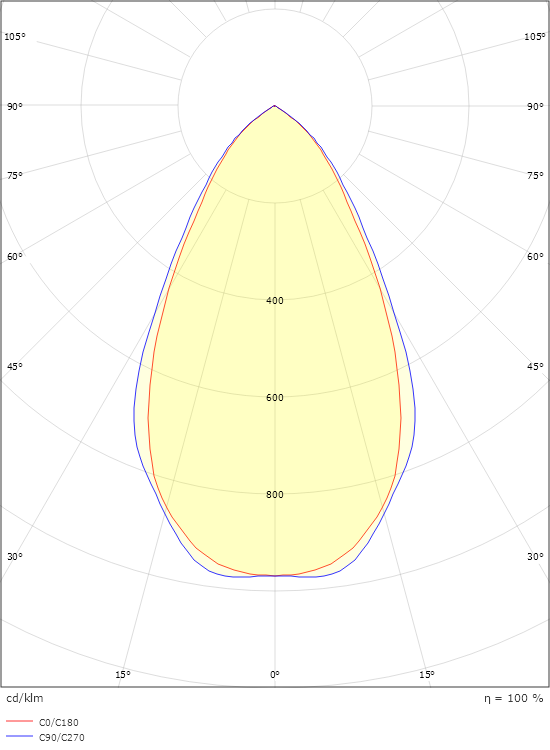

Light distribution
Direct
Optic
Satin Matt Reflector
Beam angle
62°
Photobiological safety
RG 1

Control/Dimming

Type
TW LEDDim

Protection

Luminaire class
Class II SELV
IK Class
IK08
IP Class
IP54/IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Flame retardant polycarbonate
Colour
White/Satin mat
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Recessed, Indoor
Connection
3 pol Linect / screwless terminal block

Dimensions

Height (mm) H
93
Diameter (mm) D
216
Cut-out (mm)
200
Ceiling void depth (mm)
90
Weight (kg) gross/net
1.2 / 1

Packaging

Packaging dimensions (mm)
240 x 240 x 102
