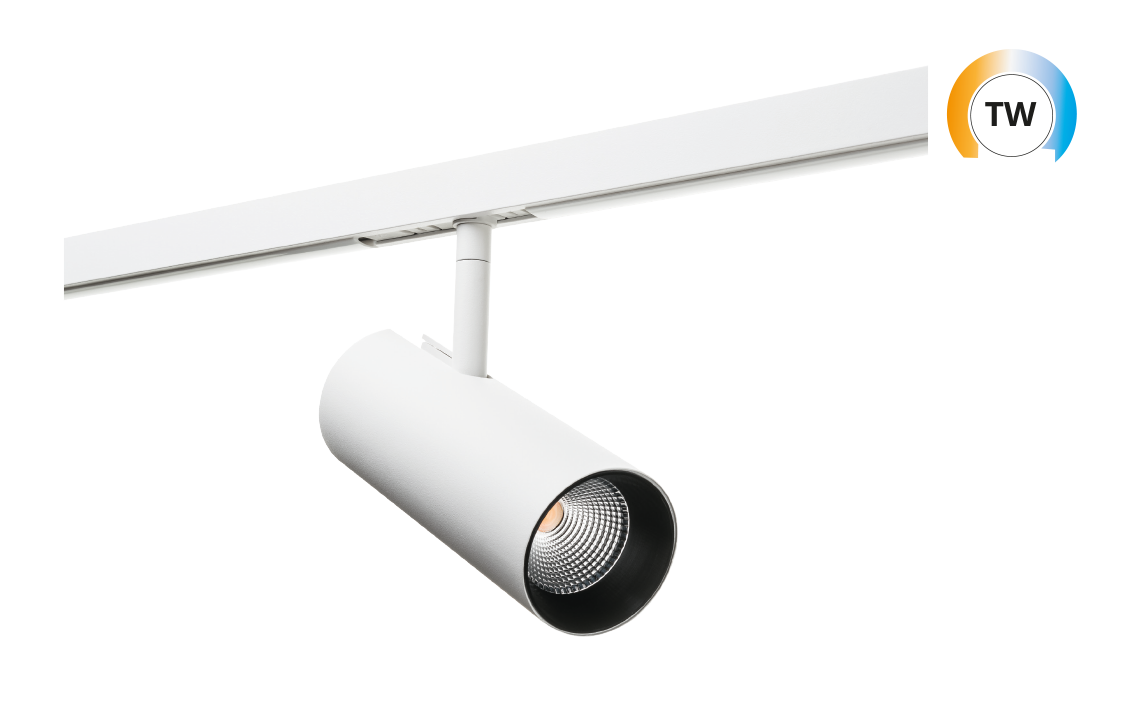

Zip Tube Mini 1-Circuit TW

Zip Tube Mini TW White 620lm (@4000K) 2000-4000K Ra>90 TW LEDDim

Article code
320602
EAN
7021983206022
Back to articlelist

Overview

Efficacy
48 lm/W
Lumen
620lm (@4000K)
IP Class
IP20
Colour temperature
2000-4000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • tw
  • ce

Tools

Downloads

Specification sheet 320602 Eulumdat file (ldt) 7021983206022_Zip Tube Mini TW White 440lm (@2000K) 2000-4000K Ra90 Tunable White LEDDim Eulumdat file (ldt) 7021983206022_Zip Tube Mini TW White 620lm (@4000K) 2000-4000K Ra90 Tunable White LEDDim

See more

Dialux file (uld) 7021983206022_Zip Tube Mini TW White 440lm (@2000K) 2000-4000K Ra90 Tunable White LEDDim Dialux file (uld) 7021983206022_Zip Tube Mini TW White 620lm (@4000K) 2000-4000K Ra90 Tunable White LEDDim Relux file (rolf) 7021983206022_Zip_Tube_Mini_TW_White_440lm_(@2000K)_2000-4000K_Ra90_Tunable_White_LEDDim Relux file (rolf) 7021983206022_Zip_Tube_Mini_TW_White_620lm_(@4000K)_2000-4000K_Ra90_Tunable_White_LEDDim EPD NEPD-11471-11408_Zip-Tube-Mini-TW Revit file - Generic Zip Tube Mini 1 Circuit TW - generic Revit file - Ceiling Based Zip Tube Mini 1-Circuit TW - ceiling based Mounting instruction Tube Mini_User Manual CE Declaration Zip Tube Mini TW

How to specify

Text copied to clipboard

Zip Tube Mini TW White 620lm (@4000K) 2000-4000K Ra>90 TW LEDDim, Article code: 320602, EAN: 7021983206022, IP20, Electrical: System wattage: 13W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 74, B16: 118, C10: 74, C16: 118, Light technic: Type of light source: LED, Luminous flux: 620lm (@4000K), Efficacy: 48 lm/W, Colour temperature: 2000-4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector medium, Beam angle: 40°, Visible flicker (PstLM): 0.11, Stroboscopic flicker (SVM): 0.03, Control/Dimming: Type: TW LEDDim, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Surface, Indoor, Connection: Zip track (adapter included), Dimensions: Length (mm) L: 160, Width (mm) W: 59, Height (mm) H: 160, Weight (kg) gross/net: 0.5 / 0.455, Packaging: Packaging dimensions (mm): 90 x 70 x 195

Electrical

System wattage
13W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 74, B16: 118, C10: 74, C16: 118

Light technic

Type of light source
LED
Luminous flux
620lm (@4000K)
Efficacy
48 lm/W
Colour temperature
2000-4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

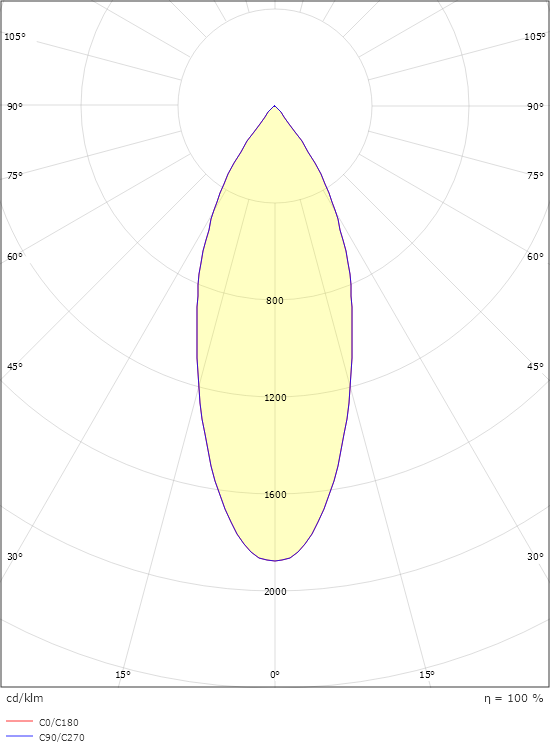

Light distribution
Direct
Optic
Reflector medium
Beam angle
40°
Visible flicker (PstLM)
0.11
Stroboscopic flicker (SVM)
0.03

Control/Dimming

Type
TW LEDDim

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Zip track (adapter included)

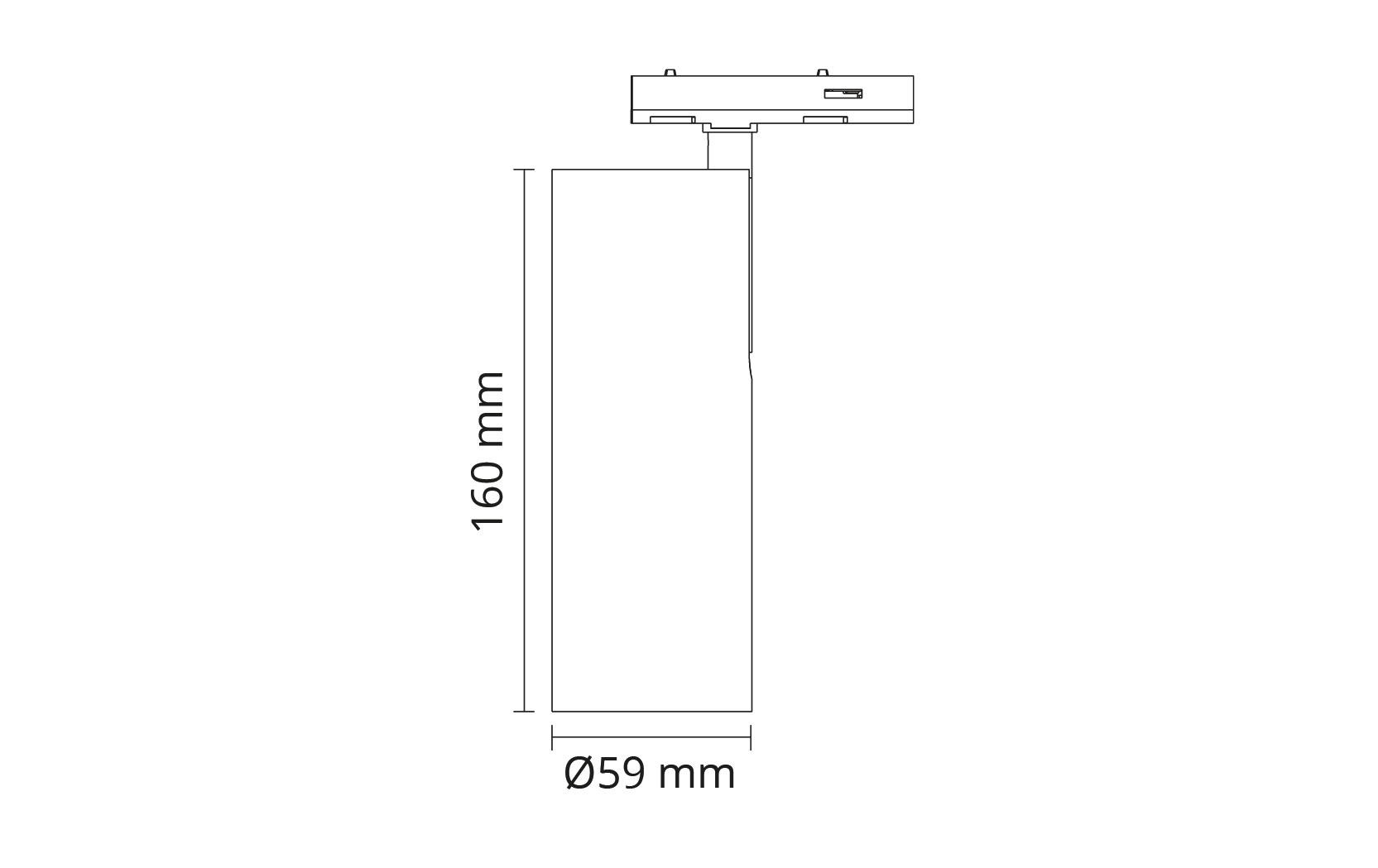

Dimensions

Length (mm) L
160
Width (mm) W
59
Height (mm) H
160
Weight (kg) gross/net
0.5 / 0.455

Packaging

Packaging dimensions (mm)
90 x 70 x 195
