Wall box

Wall box 8 outlets Grey Single

Article code
79007
EAN
7021987900711
Back to articlelist

Overview

Mounting
Indoor
    5 years Warranty
  • indoor
  • fire
  • sound
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 79007 Mounting instruction Built-in wallbox_user manual EPD NEPD-8257-7925_Wall-box CE Declaration CE251013C_Wall box Sound insulation Produktdokumentasjon veggbokser i lydvegg Firerated Produktdokumentasjon for montering i EI60 brannvegger

How to specify

Text copied to clipboard

Wall box 8 outlets Grey Single, Article code: 79007, EAN: 7021987900711, Energy and approvals: Passed EI60 fire resistance test: Yes, Sound insulation test passed according to EN ISO 10140-2:2022, ISO 717-1:2020 and ISO 10140-1:2021: Yes, Materials and finish: Housing: Polypropylen (PP), Halogen free: Yes, Mounting/Connection: Mounting: Indoor, Module: 8 outlets, Dimensions: Length (mm) L: 144, Width (mm) W: 109, Height (mm) H: 66, Weight (kg) gross/net: 0.129 / 0.11, Packaging: Packaging dimensions (mm): 144 x 109 x 66, Number per pack: 48

Energy and approvals

Passed EI60 fire resistance test
Yes
Sound insulation test passed according to EN ISO 10140-2:2022, ISO 717-1:2020 and ISO 10140-1:2021
Yes

Materials and finish

Housing
Polypropylen (PP)
Halogen free
Yes

Mounting/Connection

Mounting
Indoor
Module
8 outlets

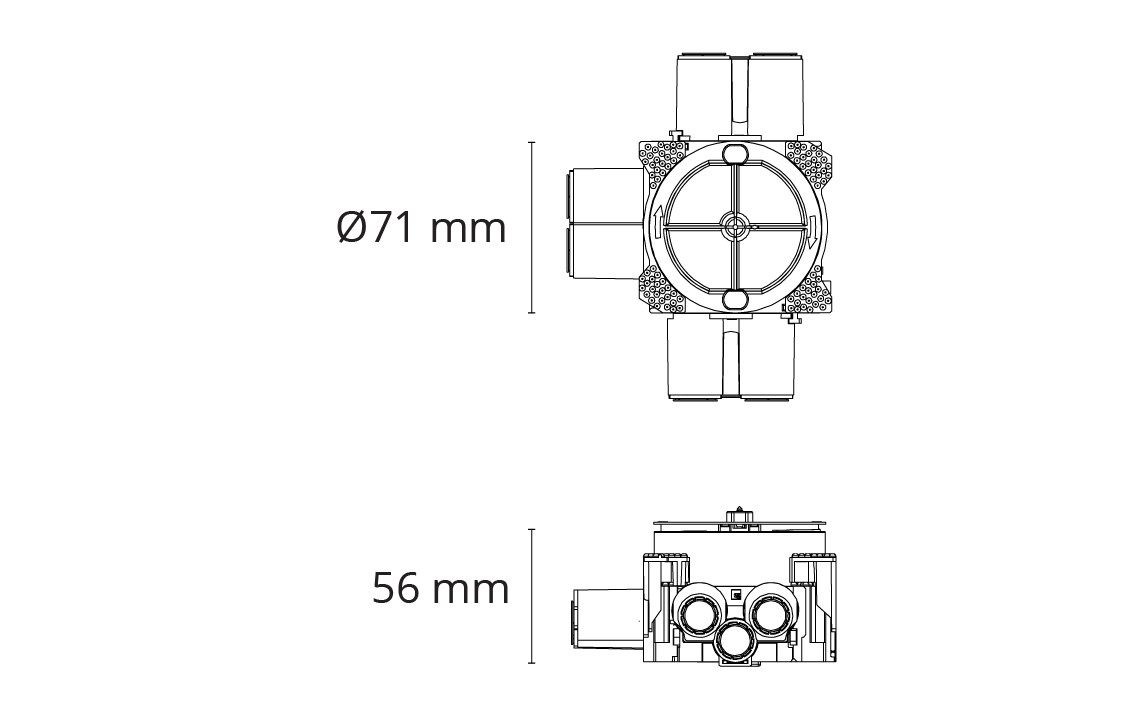

Dimensions

Length (mm) L
144
Width (mm) W
109
Height (mm) H
66
Weight (kg) gross/net
0.129 / 0.11

Packaging

Packaging dimensions (mm)
144 x 109 x 66
Number per pack
48
