LEDDim 2x100

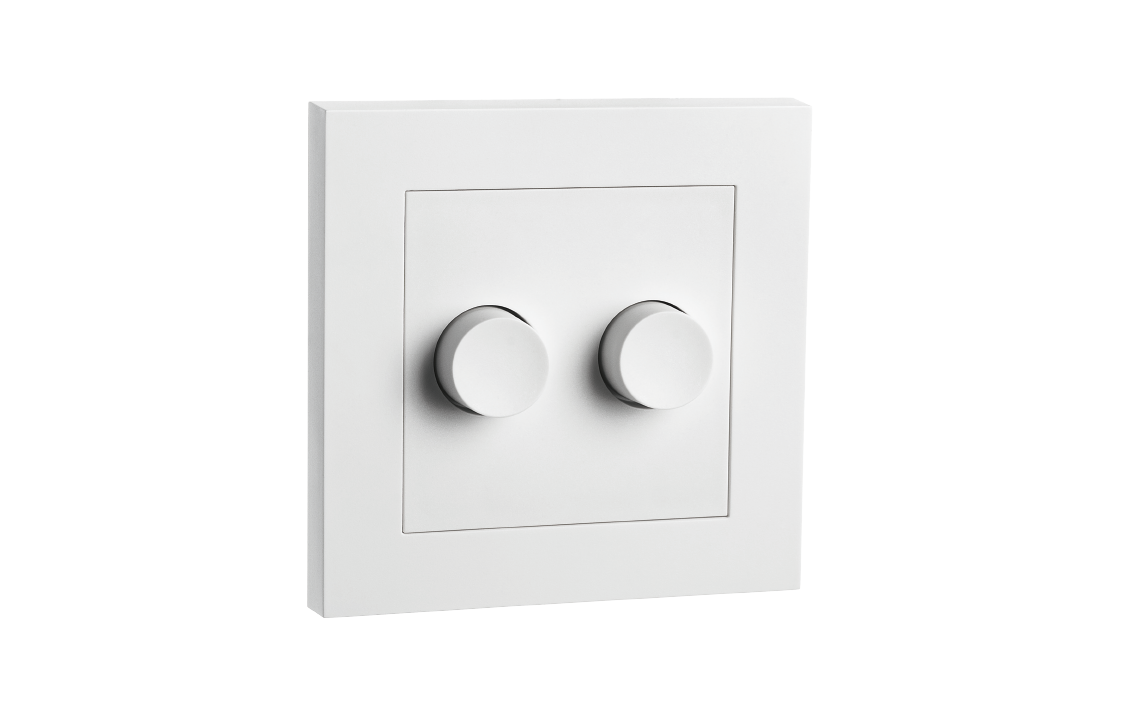

LEDDim White 2x100 2x100

Article code
820473
EAN
7021988204733

Overview

Wattage
2x100
IP Class
IP20
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ip20
  • ce

Tools

How to specify

Text copied to clipboard

LEDDim White 2x100 2x100, Article code: 820473, EAN: 7021988204733, IP20, Function: Function: Including dimmer, 2 pcs. white knob, 2 pcs. nut, white outer frame and white inner frame, Electrical: Wattage: 2x100, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Overvoltage protection: Yes, Overload protection: Yes, Minium dim level is adjustable: Yes, Memory feature in the event of voltage drop out: Yes, Protection: IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 42, Weight (kg) gross/net: 0.118 / 0.093, Packaging: Packaging dimensions (mm): 90 x 50 x 90

Function

Function
Including dimmer, 2 pcs. white knob, 2 pcs. nut, white outer frame and white inner frame

Electrical

Wattage
2x100
Voltage
220-240V
Frequency (Hz)
50/60Hz
Overvoltage protection
Yes
Overload protection
Yes
Minium dim level is adjustable
Yes
Memory feature in the event of voltage drop out
Yes

Protection

IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor

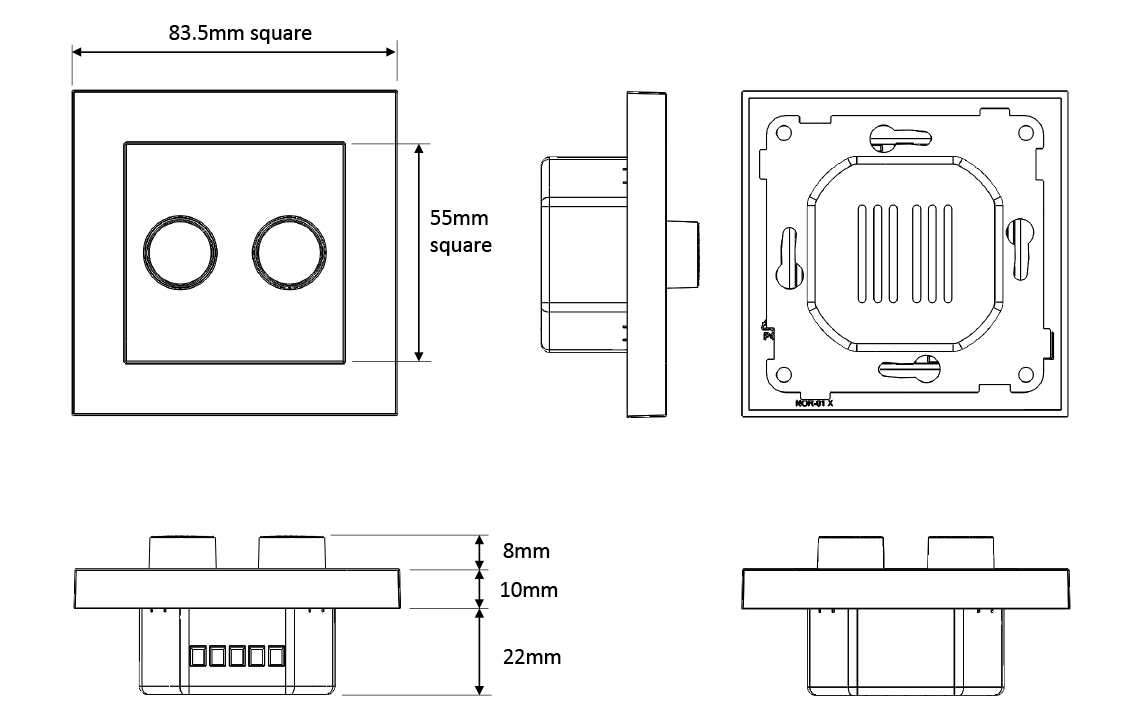

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
42
Weight (kg) gross/net
0.118 / 0.093

Packaging

Packaging dimensions (mm)
90 x 50 x 90
