TW LEDDim Smart

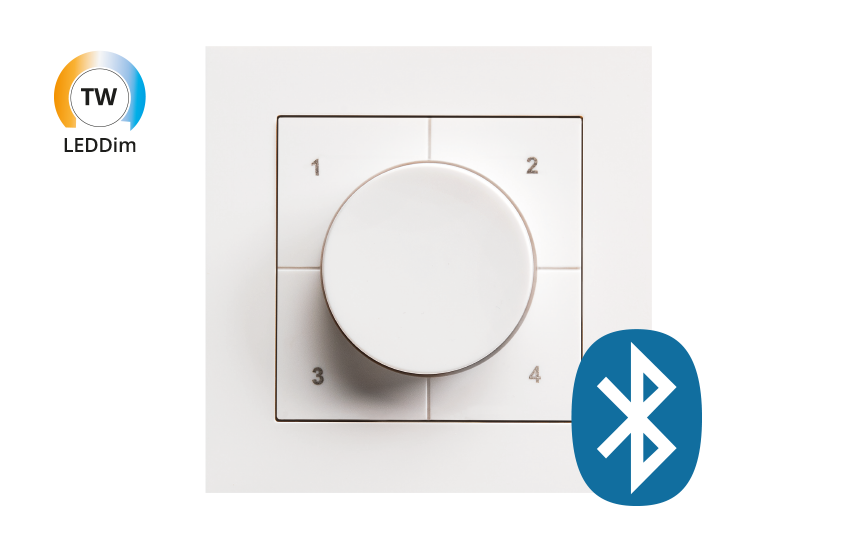

TW LEDDim White Smart 400VA

Article code
820414
EAN
7021988204146
Replaces
820384
Back to articlelist

Overview

Wattage
400VA
IP Class
IP20
Mounting
Indoor
    5 years Warranty
  • indoor
  • ip20
  • ce

Tools

Downloads

Specification sheet 820414 Mounting instruction TW LEDDim Smart_User Manual CE Declaration TW LEDDim Smart

How to specify

Text copied to clipboard

TW LEDDim White Smart 400VA, Article code: 820414, EAN: 7021988204146, IP20, Electrical: Wattage: 400VA, Standby power: 0.50W, Voltage: 220-240V, Frequency (Hz): 50Hz (60Hz upon request), Overvoltage protection: Yes, Overload protection: Yes, Minium dim level is adjustable: Yes, Control/Dimming: Type: TW LEDDim, Protection: IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Mounting/Connection: Mounting: Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 48, Ceiling void depth (mm): 29, Weight (kg) gross/net: 0.112 / 0.1, Packaging: Packaging dimensions (mm): 90 x 90 x 88

Electrical

Wattage
400VA
Standby power
0.50W
Voltage
220-240V
Frequency (Hz)
50Hz (60Hz upon request)
Overvoltage protection
Yes
Overload protection
Yes
Minium dim level is adjustable
Yes

Control/Dimming

Type
TW LEDDim

Protection

IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Indoor

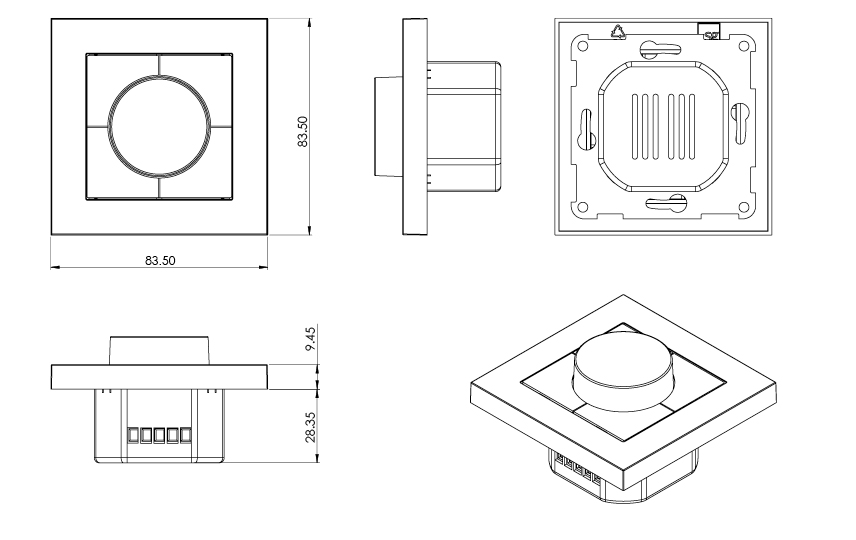

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
48
Ceiling void depth (mm)
29
Weight (kg) gross/net
0.112 / 0.1

Packaging

Packaging dimensions (mm)
90 x 90 x 88
